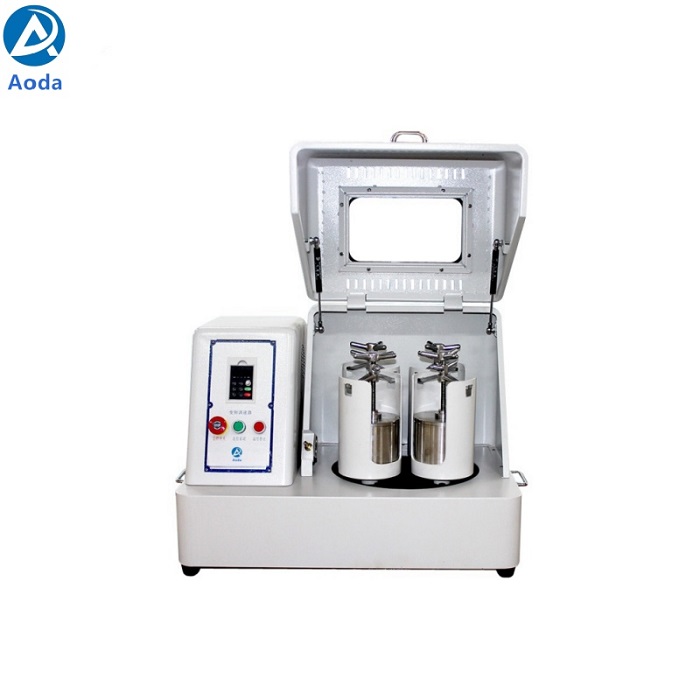

Aoda Vertical squre Laboratory planetary ball mill
Laboratory planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda Vertical squre Laboratory planetary ball mill
Laboratory planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production.
Vertical square planetary ball mill is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for the production of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, disc ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.
Grinding case sharing
Technical parameters of Laboratory planetary ball mill
Model | XQM-2L | XQM-4L | XQM-8L | XQM-10 | XQM-12L | XQM-20L | XQM-40L | XQM-60L | XQM-100L |
Capacity(L) | 2 | 4 | 8 | 10 | 12 | 20 | 40 | 60 | 100 |
Drive mode | Gear drive | ||||||||
Operate mode | 2 or 4 mill jar work together | ||||||||
Max loading capacity | 2/3 of mill jar volume | ||||||||
Voltage | AC220V50Hz | 380V50Hz | |||||||
Revolution Speed | 35-335 | 35-290 | 35-215 | 20-195 | 27-174 | 27-160 | |||
Rotation Speed | 70-670 | 70-580 | 50-430 | 40-390 | 40-260 | 40-240 | |||
Total Timing | 1-9999 | ||||||||
Alternating Run Time of Forward & Reversal Rotation(min) | 1-999 | ||||||||
Power(KW) | 0.75 | 1.5 | 4 | 5.5 | 7.5 | 11 | |||
Jars volume | 50-500ml | 250-1000ml | 1-2L | 1-2.5L | 1-3L | 2-5L | 5-10L | 10-15L | 20-25L |
Sample | Soil≤10mm;Others ≤10mm3mm | ||||||||
Noise(db) | 60 | 65 | 68 | ||||||
Speed adjustment | Frequency control | ||||||||
N/W(kg) | 93 | 150 | 330 | 468 | 900 | 1250 | |||
Dimension(cm) | 75*47*56 | 90*60*64 | 120*75*90 | 140*85*116 | 160*99*125 | 175*114*133 | |||
Optional Grinding jar and ball for laboratory planetary ball mill
We provide all kinds of mill pots and balls in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.
