Aoda CIC-D100 IC Ion chromatograph

Aoda CIC-D100 IC Ion chromatograph

CIC-D100 IC Ion chromatograph is not only can detect anions, cations and other polar substances in different matrix samples, but also separate ions with 4 orders of magnitude difference....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

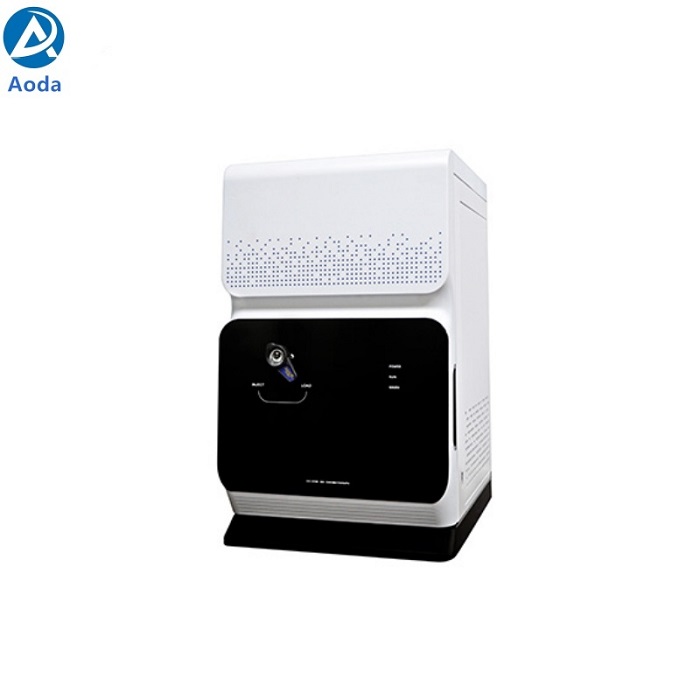

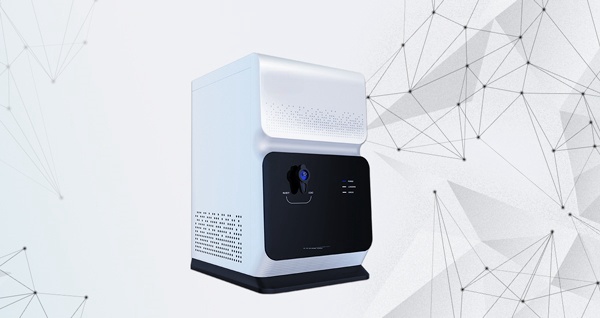

Aoda CIC-D100 IC Ion chromatograph

CIC-D100 ion chromatograph is a classic product, which has been accepted by many customers.Based on the latest requirements of users,a newly upgraded CIC-D100 for conventional detection came into being.The new IC not only can detect anions, cations and other polar substances in different matrix samples, but also separate ions with 4 orders of magnitude difference.Compared with the previous one, it is more accurate and reliable. One key switch and intelligent maintenance functions are added to give users a better experience. It is suitable for third-party testing institutions, enterprises, environmental protection, chemical industry, mining and metallurgy and other fields.


Technology advantage:

Auto-range Conductivity DetectorIt can directly detect the signal from ppb to ppm concentration without adjusting the range;

Eluate preheatingBy keeping the temperature of the eluate entering the column constant to ensure data stability;

Intelligent switchJust click once to complete the startup parameter setting and shutdown operation;

Multiple detectors availableStandard : conductivity detector

Optional: ampere, UV, mass spectrometer and other detectors.


CIC-D100 ion chromatograph Specification

Pump

Maximum Pressure

42MPa(Stainless steel)

Flow Rate Range

0.001~9.999mL/min

Injector

Maximum Pressure

35MPa(PEEK)

External Diameter of The Tube

1/16″

Column Heater

Operating Temperature Range

20 ~60℃(68~140℉)

Temperature Accuracy

±1℃

Temperature Stability

≤0.05℃/h

Conductivity Detector

Cell Volume

≤0.8μL

Detection Range

0~35000μS/cm

Baseline Noise

≤0.001μS

Baseline Drift

≤0.02μS

Power Requirements

150W

Dimensions(L*W*H*)

310*430*530 (mm)

Net Weight(KGS)

22
