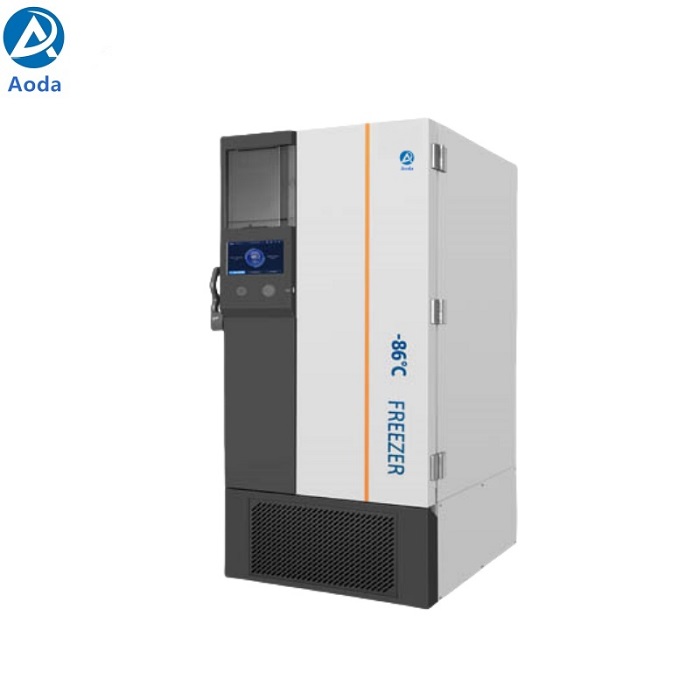

Aoda -86 degree Upright Smart-Inverter Ultra-Low temperature ULT Freezer
Smart-Inverter ULT Freezer are designed to be energy saving. The control system automatically tunes the speed of the compressors to optimize the operation.
Smart-Inverter ULT Freezer is applicable for products and samples which require strict storage, biological products, electronics and special materials. Products are widely used in hospitals, CDC, scientific research institutions biomedical engineering institutes, agriculture/fishery companies.
Ultra-Low temperature ULT Freezer Feature
Smart-Inverter Technology
Variable speed compressors are coupled in the freezer, the compressors will work based on the loads and inter change fluctuation. The control system automatically tunes the speed of the compressors to optimize the operation.
Low Energy Consumption
Smart-Inverter freezer coupled with environmentally safe and friendly hydrocarbon refrigeration system, allows the freezers to operate at a low level of energy consumption.
High Temperature Stability
The innovative control algorithm balances the eects of temperature loss with the unique frequency conversion refrigeration system, ensuring the cabinet temperature stability.
Active ECO Technology
Midea active ECO technology can significantly reduce energy consumption and maintain good interior temperature uniformity at the same time.
Multi-layer Silicone Sealing Structure
Multi-layers silicone gaskets provide a tight seal between the inner doors and outer door, reducing heat exchange rate and retaining the inner temperature better when there is power failure.
10.1"TFT Touch Screen
Visual management, real time display inner temperature, alarms, temperature curves and other data.
Ingenious Handle Design
Ingenious handle design helps you easy to open and close door easier. Lockable handle safeguards your precious samples. Padlock can also be added for extra sample safety.
Maximum Samples Storage
Optimized dimension design provides maximum inner space for 40,000.pcs 2ml vial.
USB Interface
Enables users to download historical temperature data for compliance/auditing purposes.
Heated Pressure Equalization Port
It allows users to re-open the main door quickly when entering, rust-proof, freeze-free.

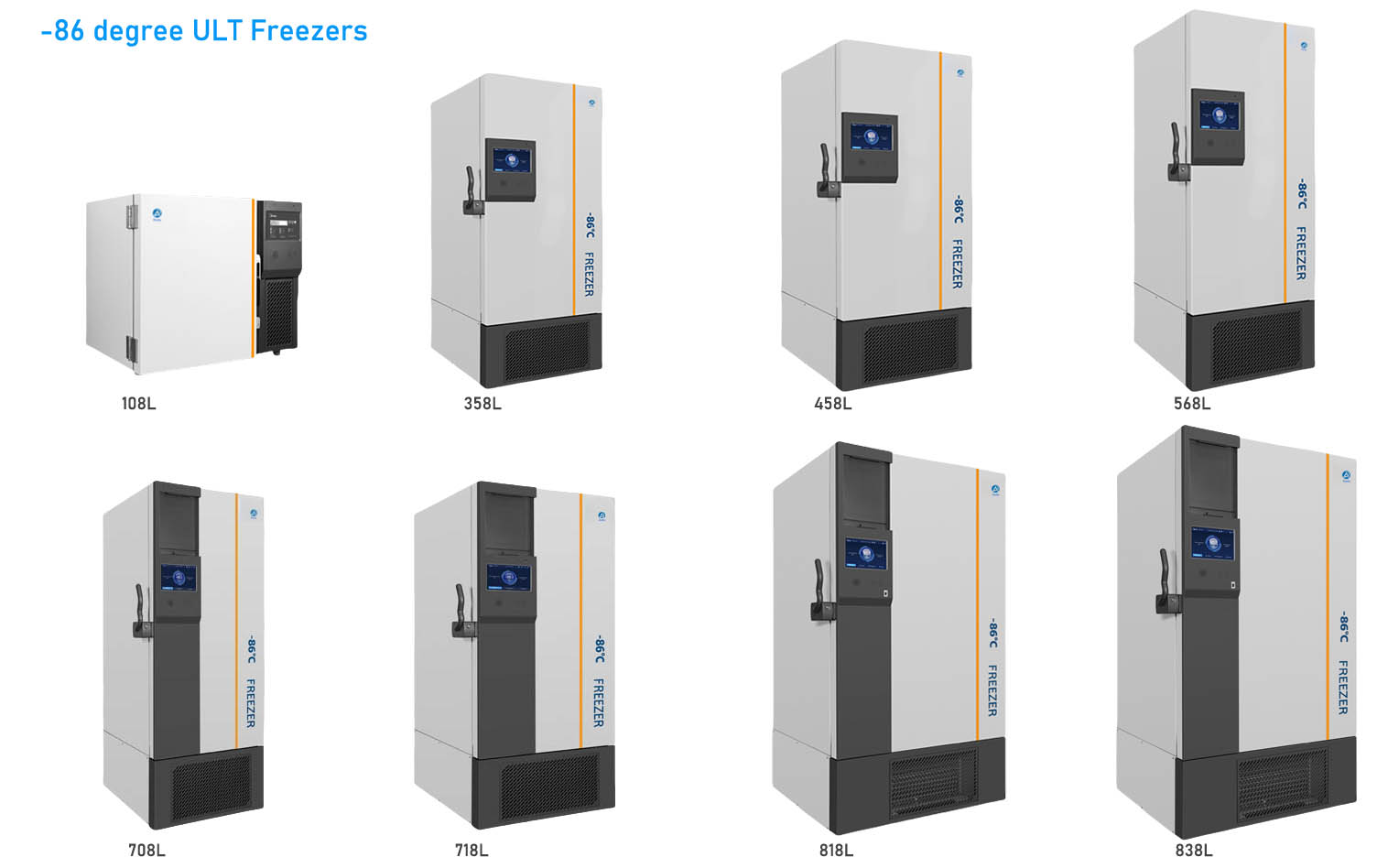

Ultra-Low temperature ULT Freezer specification
| -86 degree ULT Freezer | |||
| Model | 568L/-86ºC | 708L/-86ºC | 838L/-86ºC |
| Cabinet type | Upright | ||
| Climate class | N | ||
| Noise(dB) | 54 | 49 | 51 |
| Defrost type | Manual | ||
| Cooling system | Twin cooling | ||
| refrigerant | Mix refrigerant | ||
| Capacity (L/Cu.Ft) | 568/20.03 | 718/25.36 | 838/29.59 |
| External material | High qulaity coated steel | ||
| Inner material | Stainless steel | ||
| Display | 10.1 inch LCD touch screen(TFT) | ||
| Temperature range | -40~-86ºC | ||
| Temp.accuracy | 0.1ºC | ||
| Inner size(W*D*H) | 595*720*1310 | 740*720*1310 | 885*720*1310 |
| External size(W*D*H) | 885*995*1980 | 1030*995*1980 | 1175*995*1980 |
| Power supply | 100~240V 50/60Hz | ||
| Alarm | High / Low Temperature Alarm Door Ajar Power Failure Alarm High Condenser Temperature Alarm High Ambient Temperature Alarm Low Battery Alarm Sensor Failure Alarm Remote Alarm | ||
| Data output | USB port,optional RS485 | ||
