6 positions Lasting Adhesive Tester

6 positions Lasting Adhesive Tester

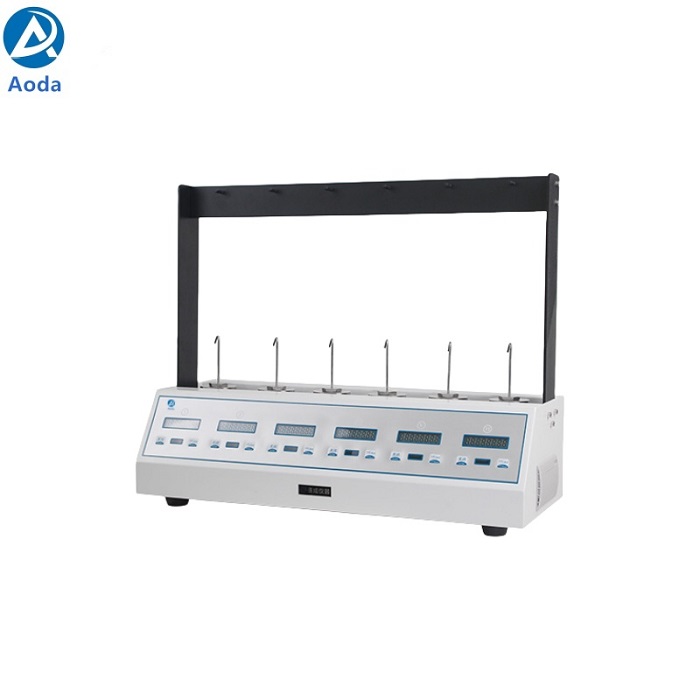

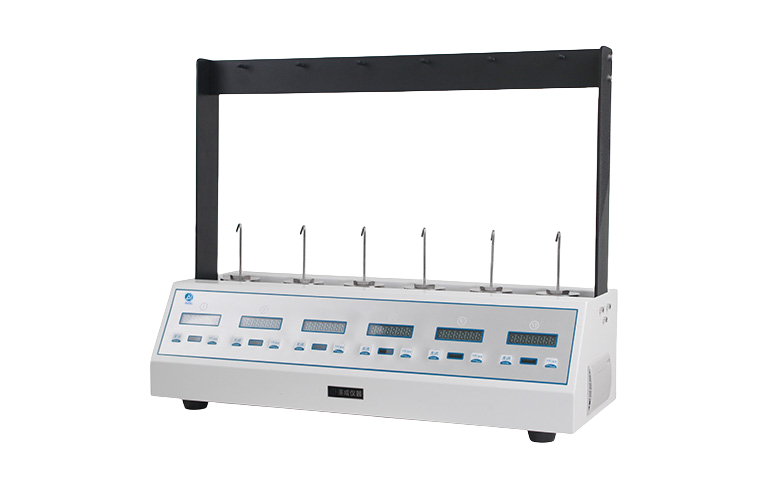

CZY-6S Lasting adhesion tester is designed and manufactured in accordance with the national standard GB/T 4851-2014. It is suitable for adhesion testing of pressure-sensitive adhesive tapes, medical patches, self-adhesive labels, protective films and other products.

• Test plates and test weights designed strictly in accordance with GB/T 4851-2014 standards ensure the accuracy of test data

• The system is controlled by a microcomputer and equipped with a PVC operation panel

• Membrane buttons and LCD display screen facilitate users to quickly perform test operations and view data

• Six test stations can perform multiple test items at the same time

• Automatic timing, locking and other functions further ensure the high accuracy of test results

• After the test, each station automatically prints the test results

Test principle

Hang the test plate with the sample vertically on the test frame, hang a weight of specified weight at the lower end, and use the displacement of the sample after a certain period of time or the time for the sample to

completely detach to test the ability of the adhesive tape to resist pulling off.

Meet standard

The instrument complies with many national and international standards: GB/T 4851-2014, ASTM D3654, JIS Z0237

Lasting adhesion tester is suitable for the stickiness test of various adhesive products, such as pressure-sensitive tapes, medical patches, self-adhesive labels, protective films, etc.
