Aoda TG20C 21000rpm high-speed centrifuge
High-speed centrifuge is suitable for normal temperature centrifugal purification and concentration experiments of chemical substances, microorganisms, viruses, sub-cells, bacteria, etc. in animal and plant molecular cells....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda TG20C 21000rpm high-speed centrifuge
High-speed centrifuge is suitable for normal temperature centrifugal purification and concentration experiments of chemical substances, microorganisms, viruses, sub-cells, bacteria, etc. in animal and plant molecular cells.
● Direct drive by brushless variable frequency motor, high torque, no dust, anti-interference, low noise, maintenance-free, long service
life.
● Precise control by microcomputer processor, automatically memorizes the last set of running programs. 9 sets of running programs
can be store and called,and the panel has 4 shortcut program keys to directly call common programs without repeatd setting.e
● 9 lifting speeds for users to flexibly choose the appropriate centrifuge to achieve the best centrifugal effect.
● 5-inch high-definition LCD touch screen, with a friendly human-computer interaction interface, can display the speed, time, lifting speed
setting parameters and actual parameters on the same screen, and the display is intuitive.
● Time modes such as reaching the set speed timing and starting timing can be selected.
● Automatic electric induction door lock, emergency unlocking function; overspeed, overtemperature, and unbalanced automatic
protection functions to ensure human and machine safety.
● The body is made of high-quality steel structure, with built-in fine steel explosion-proof protection inner sleeve, 304 stainless steel
centrifugal chamber,three-layer protection,safey and reliable.
● Spring cone sleeve is used to connect the rotor and the spindle, 360-degree locking rotor, loading and unloading rotor without
directionality, simple and convenient.
●Equipped with a variety of rotors for selection, one machine for multiple uses, and various adapters can be designed according to
experimental requirements.
●Three-level shock absorption, effectively preventing secondary suspension.
Max rotation speed | 21000r/min |
Max RCF | 30910×g |
Max capacity | 6×100ml |
Timing range | 0~99min |
RPM/RCF switch | YES |
Noise (dB) | ≤65 |
Lifting rate | 10 choice |
Speed accuracy | ±20r/min |
Power supply(V/Hz) | AC 220V 50HZ 2.5A |
External sizes(W x D x H) | 510×370×320mm |
Weight (Kg) | 42KG |
Code | Rotor type | Max speed（r/min） | Max capacity（ml） | Max RCF（xg） |
NO 05105 | Angle rotor | 18000 | 30×0.5ml | 26660 |
NO 05106 | Angle rotor | 15000 | 40×0.5ml | 22930 |
NO 05101 | Angle rotor | 21000 | 12×1.5/2ml | 30910 |
NO 05102 | Angle rotor | 17000 | 24×1.5/2ml | 26460 |
NO 05103 | Angle rotor | 13500 | 30×1.5/2ml | 19340 |
NO 05104 | Angle rotor | 13000 | 48×1.5/2ml | 17930 |
NO 05107 | Angle rotor | 16000 | 16×5ml | 22020 |
NO 05108 | Angle rotor | 16000 | 12×7ml | 21380 |
NO 05109 | Angle rotor | 16000 | 6×10ml | 21500 |
NO 05110 | Angle rotor | 15000 | 12×10ml | 22680 |
NO 05114 | Angle rotor | 10000 | 12×15ml | 11840 |
NO 05113 | Angle rotor | 13000 | 8×15ml | 17790 |
NO 05116 | Angle rotor | 15000 | 8×20ml | 22680 |
NO 05117 | Angle rotor | 14000 | 6×30ml | 19060 |
NO 05120 | Angle rotor | 13000 | 6×50ml | 18840 |
NO 05122 | Angle rotor | 8000 | 8×50ml | 8090 |
NO 05128 | Angle rotor | 12000 | 4×100ml | 14850 |
NO 05129 | Angle rotor | 12000 | 6×100ml | 16390 |
NO 05224 | Swing rotor | 15000 | 4×5ml | 19920 |
NO 05140 | Low speed angle rotor | 5000 | 24×15ml | 3500 |
NO 05216 | Microplate rotor | 4000 | 2×3×48 holes | 2300 |

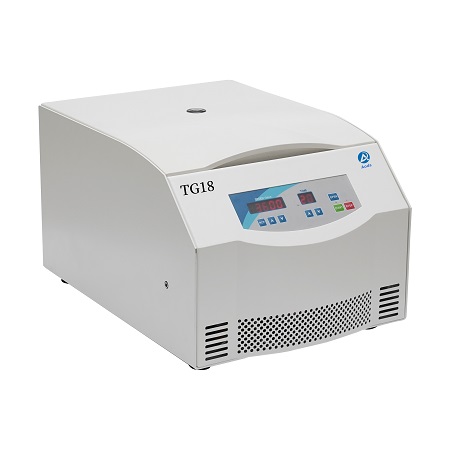

Product model: G20 Maximum speed: 21000r/min Maximum capacity: 4×800ml Dimensions: 645×560×790mm | Product model: TG18 Maximum speed: 18500r/min Maximum capacity: 6x100ml Dimensions: 513x370x320mm |
 |  |
Product model: TGW16 Maximum speed: 16000r/min Maximum capacity: 10×5ml Dimensions: 350×270×200mm | Product model: G12S Maximum speed: 12000r/min Maximum capacity: 4×1000ml Dimensions: 820×650×830mm |
 |  |
