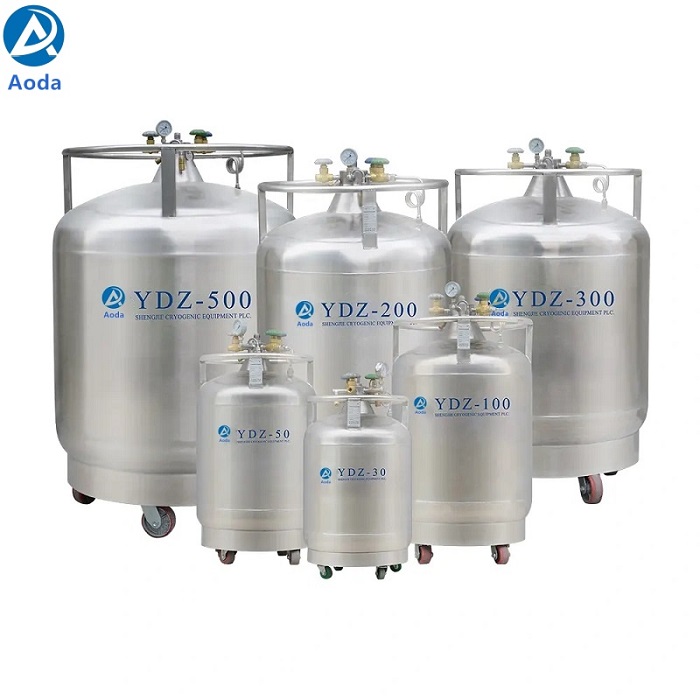

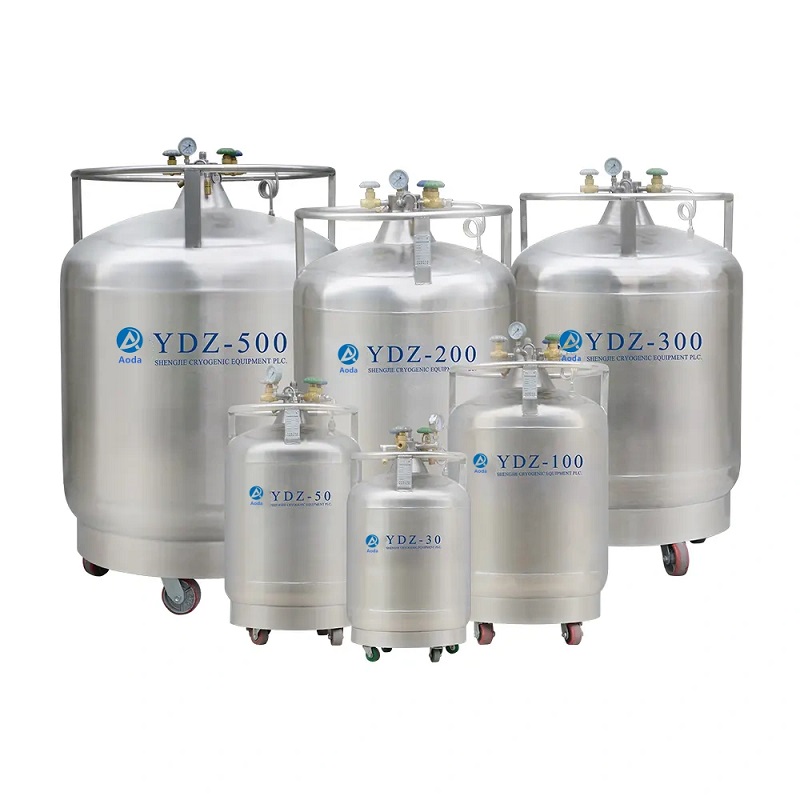

Aoda Self-pressurization Liquid Nitrogen LN2 Supply Tank
Liquid nitrogen supply tank series uses small amount of liquid nitrogen vaporizing to increase the pressure inside the tank, so that the tank can automatically discharge liquid nitrogen to other containers. It is mainly used to transport and storage liquid medium and also be the cold source of other refrigeration equipment. The monitoring controller terminal and software can be matched to transmit remotely liquid nitrogen level and pressure data and to realize the function of remote alarm for low level and over pressure, it can be also pressure boosted manually and remotely to control filling. The liquid nitrogen filling tank is widely used for mould industry, livestock industry, Medical, semiconductor, food, low temperature chemical, aerospace, military and such industry and area.
Liquid nitrogen supply tank series is mainly used for liquid nitrogen storage. It uses small amount of liquid nitrogen vaporizing to increase the pressure inside the tank, so that the tank can automatically discharge liquid nitrogen to other containers. The stainless steel structure design is suitable for most environment and reduces the rate of evaporation losses. All the models are equipped with pressure building valve, liquid valve, release valve and pressure gauge. All the models are equipped with 4 rollers at the bottom for easy to move. Mainly applicable to laboratory users and chemical users for liquid nitrogen storage and liquid nitrogen automatic supply.
Unique neck design, low evaporation loss rate;
A protective operating ring;
Safe structure;
Stainless steel tank;
With rollers for easy to move;
CE certified;
Five years vacuum warranty;
Level display is optional;
Digital signal remote transmission;
Regulator is optional for stable pressure;
Solenoid valve is optional;
Automatic filling system is optional.
Capacity from 5 to 500 liters, a total of 9 models are available to meet user needs.
| MODEL | YDZ-5 | YDZ-15 | YDZ-30 | YDZ-50 |
| Performance | ||||
| LN2 Capacity (L) | 5 | 15 | 30 | 50 |
| Neck Opening (mm) | 40 | 40 | 40 | 40 |
| Daily Evaporation Rate of Static Liquid Nitrogen (%) ★ | 3 | 2.5 | 2.5 | 2 |
| Transfusion Volume(LZmin) | — | — | — | — |
| Maximum Storage Capacity | ||||
| Overall Height (mm) | 510 | 750 | 879 | 991 |
| Outer Diameter (mm) | 329 | 404 | 454 | 506 |
| Weight Empty (kg) | 15 | 23 | 32 | 54 |
| Standard Working Pressure (mPa) | 0.05 | |||
| Maximum Working Pressure (mPa) | 0.09 | |||
| Setting Pressure of The First Safety Valve (mPa) | 0.099 | |||
| Setting Pressure of The Second Safety Valve(mPa) | 0.15 | |||
| Pressure Gauge Indication Range (mPa) | 0-0.25 | |||
| MODEL | YDZ-100 | YDZ-150 | YDZ-200 | YDZ-240 YDZ-300 | YDZ-500 | |
| Performance | ||||||
| LN2 Capacity (L) | 100 | 150 | 200 | 240 | 300 | 500 |
| Neck Opening (mm) | 40 | 40 | 40 | 40 | 40 | 40 |
| Daily Evaporation Rate of Static Liquid Nitrogen (%) ★ | 1.3 | 1.3 | 1.2 | 1.2 | 1.1 | 1.1 |
| Transfusion Volume(L/min) | — | — | — | — | — | — |
| Maximum Storage Capacity | ||||||
| Overall Height (mm) | 1185 | 1188 | 1265 | 1350 | 1459 | 1576 |
| Outer Diameter (mm) | 606 | 706 | 758 | 758 | 857 | 1008 |
| Weight Empty (kg) | 75 | 102 | 130 | 148 | 202 | 255 |
| Standard Working Pressure (mPa) | 0.05 | |||||
| Maximum Working Pressure (mPa) | 0.09 | |||||
| Setting Pressure of The First Safety Valve (mPa) | 0.099 | |||||
| Setting Pressure of The Second Safety Valve(mPa) | 0.15 | |||||
| Pressure Gauge Indication Range (mPa) | 0-0.25 | |||||
★ Static evaporation rate and static holding time is the theoretical value. Actual evaporation rate and holding time will be affected by container usage, atmospheric conditions and manufacturing tolerances.
