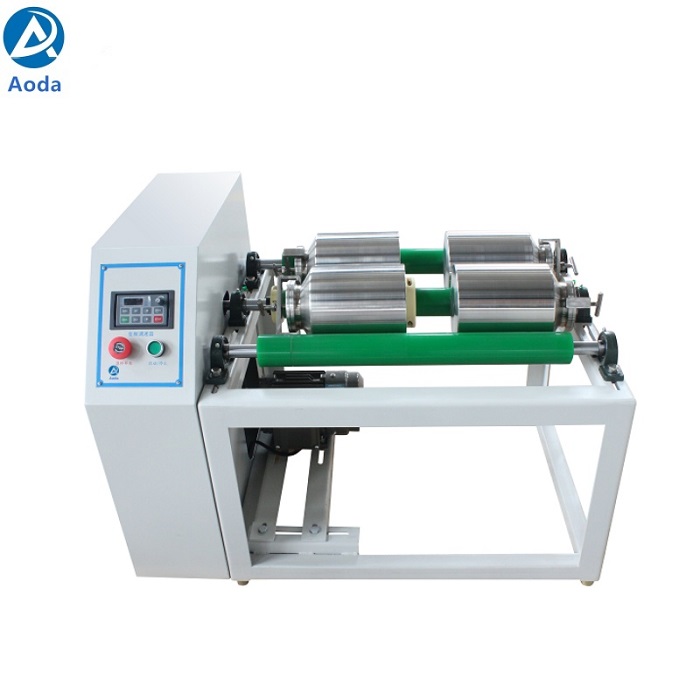

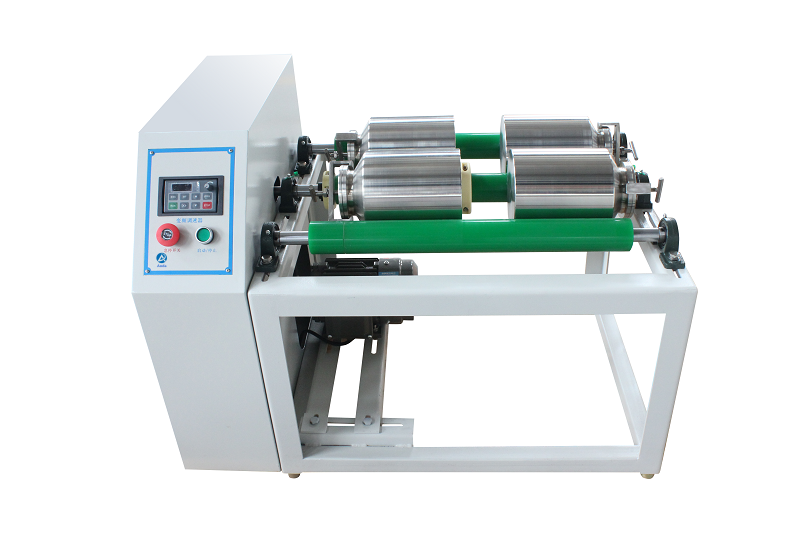

Aoda 4 work positions laboratory rolling ball mill

Aoda 4 work positions laboratory rolling ball mill

Jar mill, also called rolling ball mill, is an ultra-fine grinding and mixing equipment for laboratories and small batch production.

The Rolling ball mill can be widely used in electronic materials, magnetic materials, biomedicine, ceramic glaze slurry, metal powder, non-metallic minerals, new materials and other industries. The machine has a novel appearance, advanced structure and is easy to use. The machine tank body has an optimized speed design, and the tank body is supported by a rubber roller to rotate, which can make the medium balls in the grinding tank body form a pouring motion to disperse the material, obtain an ideal grinding effect, and can quickly grind the material to micron level. The tank mill (rolling tank machine) adopts a digital display time controller control, the working time can be set at any time according to the needs, and it has a pause and cumulative timing control function, which saves time and effort, and is easy and convenient to operate.

When the jar mill(rolling ball mill) is working, the grinding media and materials in the cylinder are lifted to a certain height along with the rotation of the cylinder. Due to the action of gravity, they separate from the cylinder wall and fall along a parabola. The materials are crushed by the impact of the grinding media and the friction and shearing generated by the rolling and sliding of the grinding media.

1. Can grind 4 samples at the same time;

2. Can be operated intermittently or continuously;

3. Can be timed according to requirements;

4. Suitable for fine grinding of materials, high crushing efficiency;

5. The tank body load-bearing rubber roller is made of special materials and is durable.

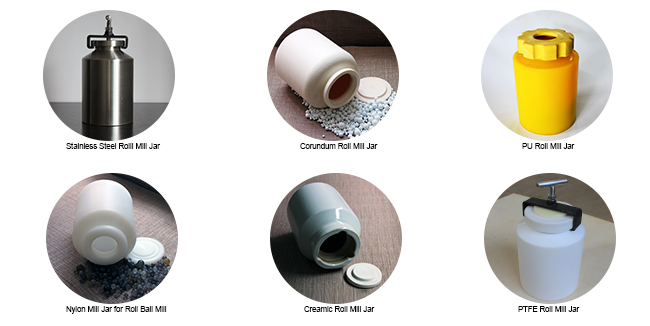

Optional mill jars and balls for reference

There are stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Available Roll Mill Jars & Specifications

Matching Solutions Recommendation for Materials & Roll Mill Jars

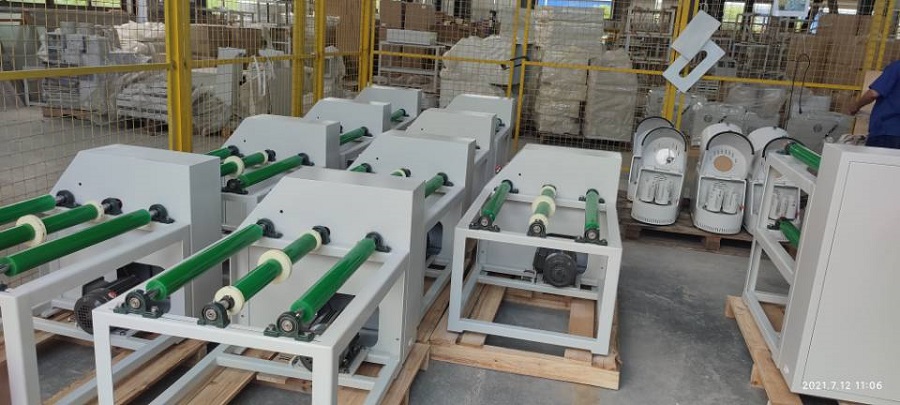

Work shop
