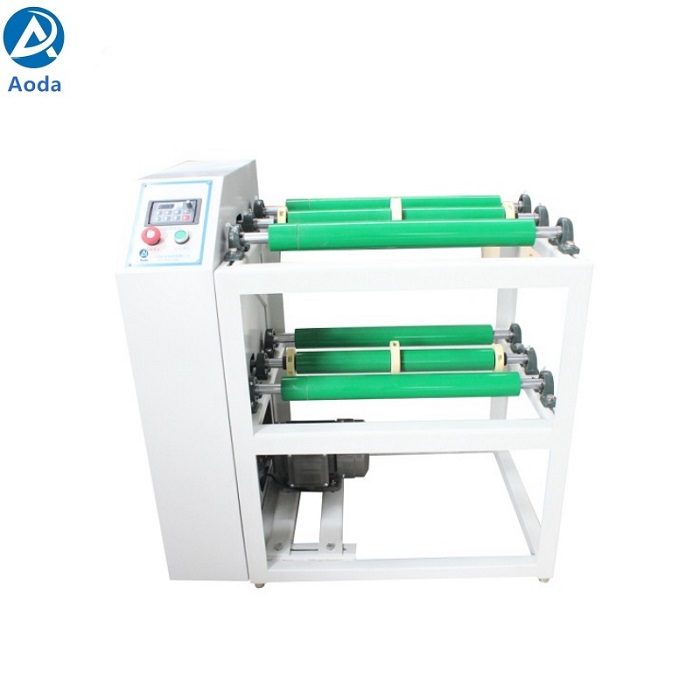

Aoda Double-layer multi-station Fine grinding of large volumes drum mill

Aoda Double-layer multi-station Fine grinding of large volumes drum mill

Drum mill is an ultrafine grinding and mixing equipment used in laboratories and small batch production....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda Double-layer multi-station Fine grinding of large volumes drum mill

The Drum mill is an ultrafine grinding and mixing equipment for laboratories and small batch production. The machine has a compact structure, convenient operation, high work efficiency, and uniform grinding particle size. It is the preferred equipment for scientific research, teaching, testing, and production. It can be widely used in electronic materials, magnetic materials, biomedicine, ceramic glaze slurry, metal powder, non-metallic minerals, new materials and other industries. The machine has a novel appearance, advanced structure, and is easy to use. The machine's tank body speed is optimized, and the tank body is supported by a rubber roller to rotate, which can make the medium balls in the grinding tank body form a pouring motion to disperse the material and obtain a suitable grinding effect. The jar mill (rolling jar machine) is controlled by a digital display time controller. The working time can be set at any time according to needs, and it has pause and cumulative timing control functions, which saves time and effort, and is easy and convenient to operate.


Work principle.jpg

When the Drum mill is working, the grinding media and materials in the cylinder are lifted to a certain height along with the rotation of the cylinder. Due to the action of gravity, they separate from the cylinder wall and fall along a parabola. The materials are crushed by the impact of the grinding media and the friction and shearing generated by the rolling and sliding of the grinding media.


Features 蓝.jpg

1. Multiple samples can be ground at the same time;

2. Intermittent or continuous operation is possible;

3. Timing can be performed as required;

4. Suitable for fine grinding of materials with high crushing efficiency;

5. The tank body load-bearing rubber roller is made of special materials and is durable.

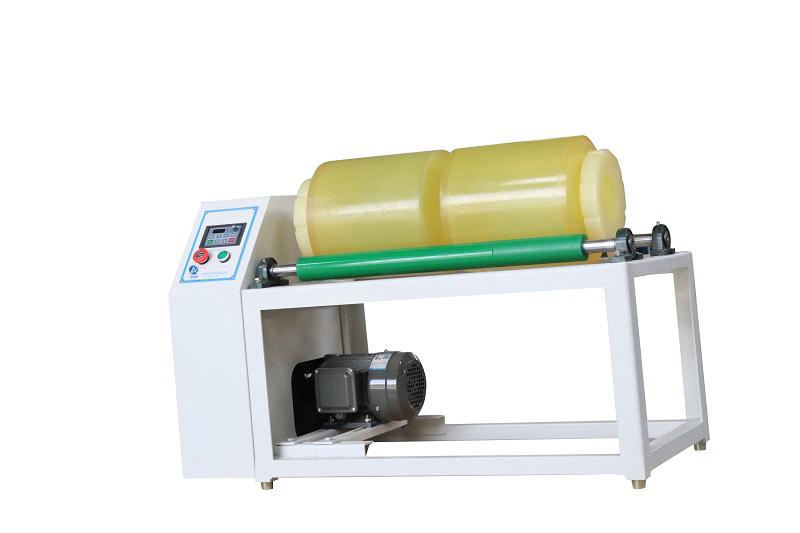

Parameters of 2 work stations Drum mill

ModelAQM-2*5LAQM-2*15LAQM-2*20L
Power0.75KW
1.1KW1.5KW
Main shaft rotation speed
50-410±10 rpm
40-365±10 rpm40-340±10 rpm
Power supply
220V50Hz220V50Hz220V50Hz
Weight
59kg
80kg
92kg
Size(L*W*H)95*48*67cm
113*55*69cm
135*65*69cm

drum mill 2.png

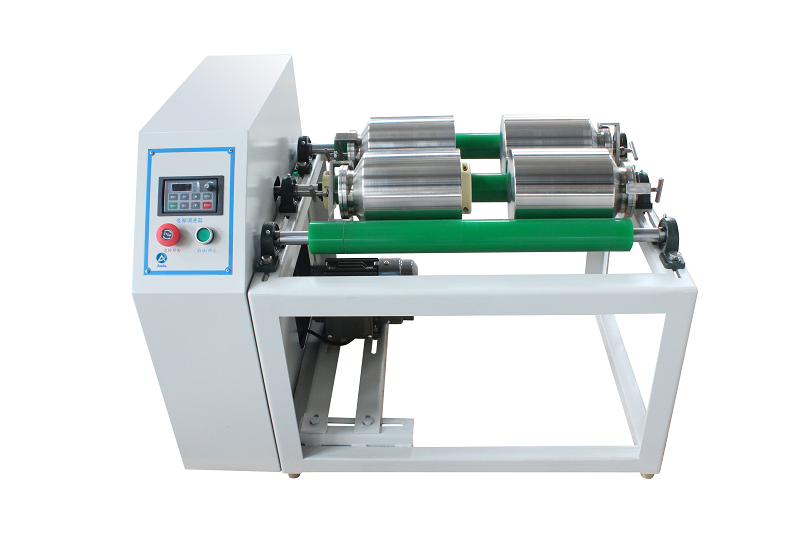

Parameters of 4 work stations Drum mill

ModelAQM-4*5L

AQM-4*5L

(Double-layer)

AQM-4*15L

AQM-4*20L

Power0.75KW
0.75KW1.5KW2.2KW
Main shaft rotation speed50-410±10 rpm50-410±10 rpm40-365±10 rpm40-340±10 rpm
Power supply
220V50/60Hz
220V50/60Hz220V50/60Hz380V50/60Hz
Weight70kg
92kg95kg122kg
Size(L*W*H)95*66*69cm
95*48*87cm
113*80*69cm
135*82*69cm

Rolling ball mill machine.png

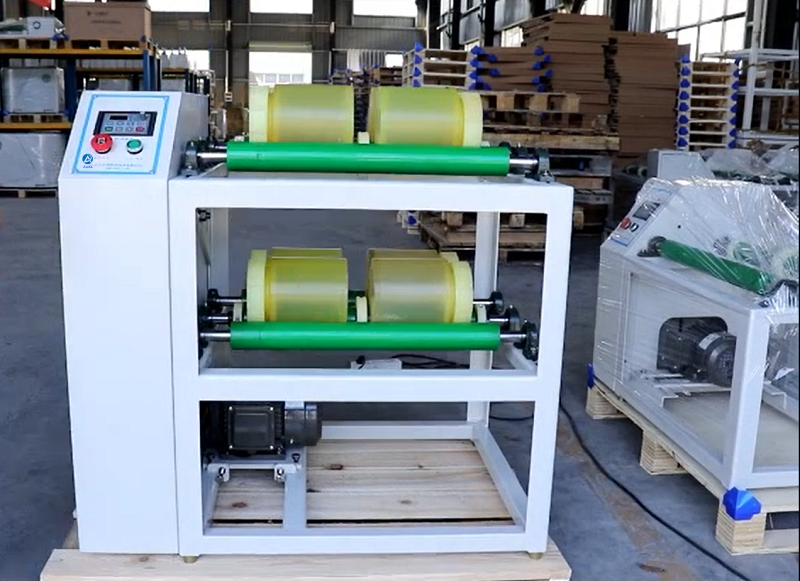

Parameters of 8 work stations Drum mill

ModelAQM-8*5LAQM-8*15L
Power1.5KW
2.2KW
Main shaft rotation speed50-410±10 rpm40-365±10 rpm
Power supply220V50/60Hz
380V50/60Hz
Weight106kg
152kg
Size(L*W*H)95*66*96cm
113*80*96cm

drum mill_副本.png

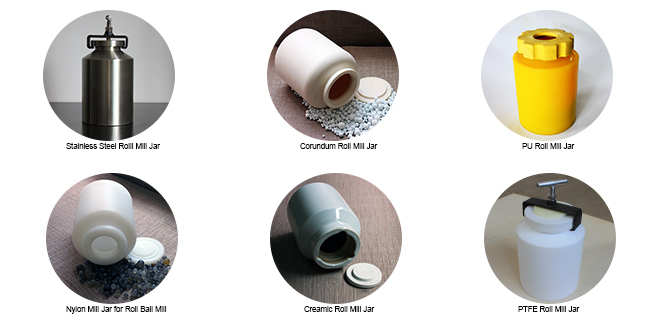

Optional mill jar and balls

There are Stainless steel,Nylon,PU,PTFE,Creamic,Zirconia,Hard alloy,Carbon Steel,Tungsten materials mill jar and balls for choice.


Roling ball mill.jpg
