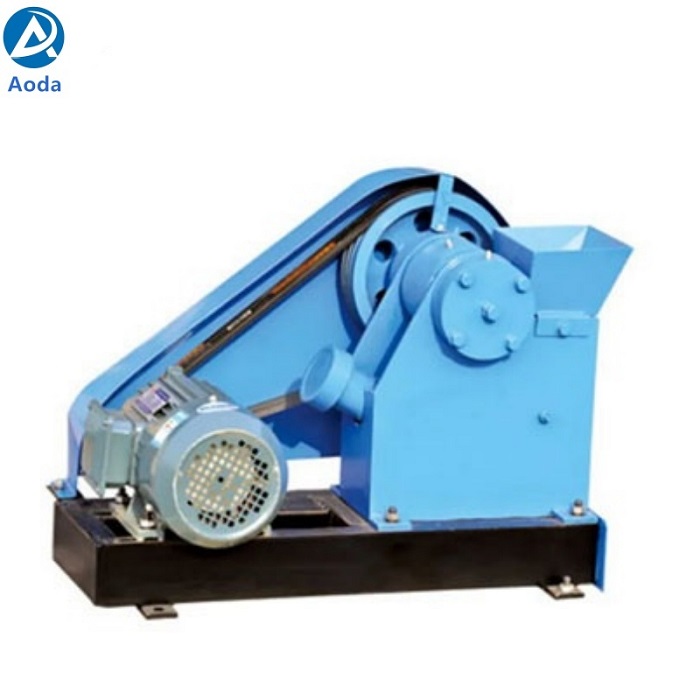

Aoda 100*60 100*100 150*125 Laboratory grinding Jaw crusher

Aoda 100*60 100*100 150*125 Laboratory grinding Jaw crusher

Jaw crusher is suitable for mining, metallurgy, geology, building materials, light industry, chemistry and the needs of units engaged in testing...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda 100*60 100*100 150*120 Laboratory grinding Jaw crusher


Jaw crusher is suitable for mining, metallurgy, geology, building materials, light industry, chemistry and the needs of units engaged in testing


Features 蓝.jpg

  • The machine housing is welded with high-quality stainless steel.

  • The hammer head groove wheel and flange are made of ductile iron.

  • The high manganese steel jaw plate has strong crushing force and is durable.

  • The base is welded with high-quality C-shaped steel.

  • Quick feeding and convenient sampling


Model

100x60

100x100

150x125

Feeding port size

100x60mm

100x100mm

150x125mm

Feed size

≤50mm

≤80mm

≤120mm

Output size

2~13mm

3~25mm

4~45mm

Production capacity

45~550kg/H

60~650kg/H

500~3000kg/H

Power

1.5KW

1.5KW

3KW

Spindle speed

600rpm

600rpm

370rpm

Voltage

380V50Hz,3P



Dimension

800x360x520mm

820x360x520mm

960x400x650mm

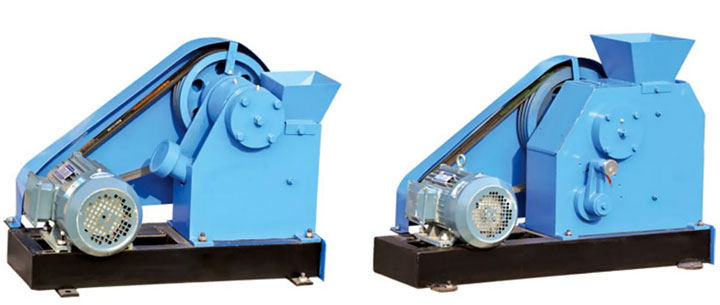

Product photo 蓝.jpg
