Aoda YMJ-A/B Portable Leaf area meter

Aoda YMJ-A/B Portable Leaf area meter

Leaf area meter is mainly used for rapid, accurate and non-destructive measurement of plant leaf area, average leaf area, leaf length, leaf width, aspect ratio, and other parameters in the field....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda YMJ-A/B Portable Leaf area meter

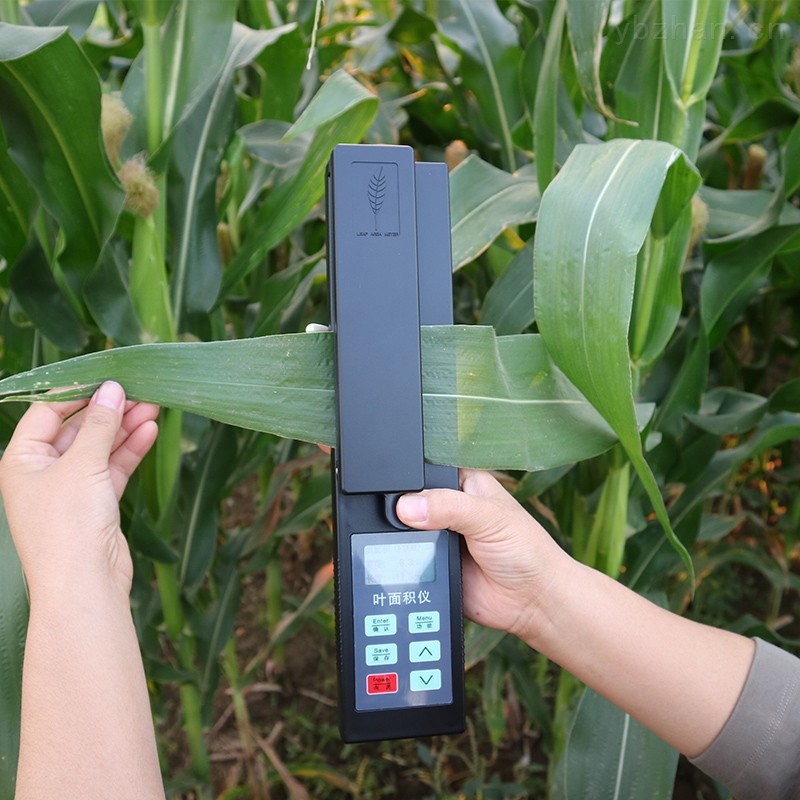

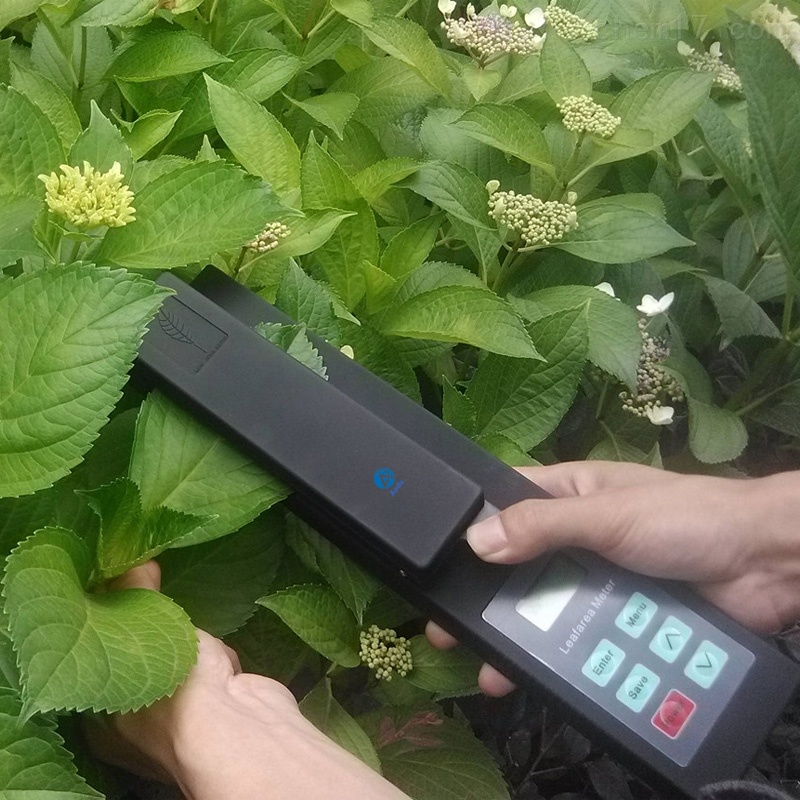

Portable leaf area meter is a handheld laser leaf area measuring instrument designed for fast, accurate, and non-destructive measurement of plant leaf area, average leaf area, leaf length, leaf width, aspect ratio, and other parameters in the field. It can also measure the area of picked plant leaves and other sheet-like objects, and has the characteristics of simple operation and convenient portability.


Portable leaf area meter is mainly used for measuring the live leaf area of plants in agriculture, meteorology, forestry and other departments.


Features 蓝.jpg

1. The integrated design of the host and probe makes operation more convenient.

2. Adopting microcomputer technology and LCD display.

3. High performance built-in rechargeable lithium battery, no need for external power supply, low voltage display, more suitable for field measurement.

4. One time measurement of larger blade area (1000mm × 160mm).

5. Can store 250 sets of data (leaf area, leaf length, leaf width).

6. The instrument comes with built-in time and date functions, which can save the measurement time along with the measurement data for easy querying.

7. Historical data can be queried on mobile phones.


Measurement parameters: leaf area, average leaf area, leaf length, leaf width, aspect ratio

Measurement units: millimeters, square centimeters

Measurement accuracy: ± 2%

Resolution: 0.1mm

Maximum measuring length: 1000mm

Maximum measurement width: 160mm

Maximum measured thickness: 8mm

Host data storage: 250 sets

Product photo 蓝.jpg


Model difference

ModelFunction
YMJ-A

Measure plant leaf area, average leaf area, leaf length, leaf width, aspect ratio, area, average area, and other parameters;

YMJ-B

Measure plant leaf area, average leaf area, leaf length, leaf width, aspect ratio, area, average area, and other parameters;

Date can transmit to PC via RS232 interface.
