Aoda ADK1000 Handheld digital Plant canopy analyzer

Aoda ADK1000 Handheld digital Plant canopy analyzer

The plant canopy analyzer can measure and analyze parameters such as plant canopy information, vegetation surface, and plant nutrient information....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

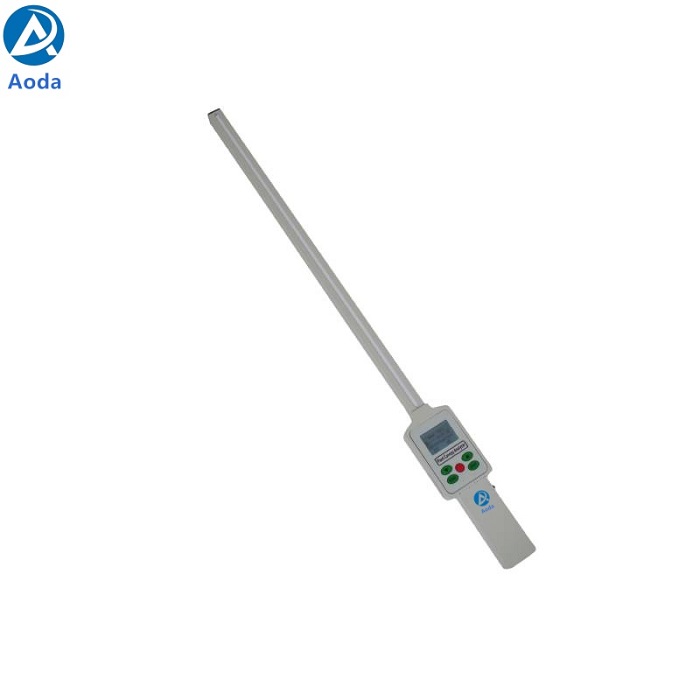

Aoda ADK1000 Handheld digital Plant canopy analyzer


ADK1000 Plant Canopy Analyzer, also called Plant Canopy Measuring Instrument, uses near-infrared light reflectance spectroscopy and multi-channel spectral information scanning technology to measure parameters such as plant canopy information, vegetation surface, and plant nutrient information. The Plant Canopy Analyzer is simple to operate, compact, and fully functional, and can be widely used in research in agriculture, horticulture, forestry, and other fields.


Features

1. The display screen, operation buttons, storage SD card and measuring probe are integrated into one design, which is simple

to operate, small in size and easy to carry.


2. The storage medium uses SD card, which has large storage capacity and convenient data management.


3. The plant canopy analyzer has an automatic sleep function.


4. The measurement method is divided into automatic and manual. The automatic measurement time interval is 1 minute,

the number of automatic measurements is 99 times, and the manual measurement is manually collected according to

actual needs.


Technical parameters

Measurement range: 0~2700μmolm-2s-1

Resolution: 1μmolm-2s-1

Relative difference (spectral response): <10% (for crown)

Precision: <±0.5%±1 word of measured value

Accuracy: <±5%±1 word of measured value (relative to NIM standard)

Automatic acquisition interval: 1-99 minutes optional

Automatic acquisition times: 1~99 times

Data storage capacity: 2GB (SD card as standard)

Total length of instrument: 75cm

Probe length: 50cm

Power supply: 2 No. 5 batteries

Working environment: 0℃~60℃; 100% relative humidity

Stability: Change within one year <±2%

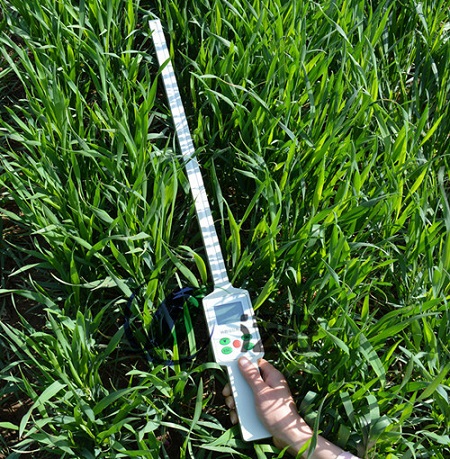

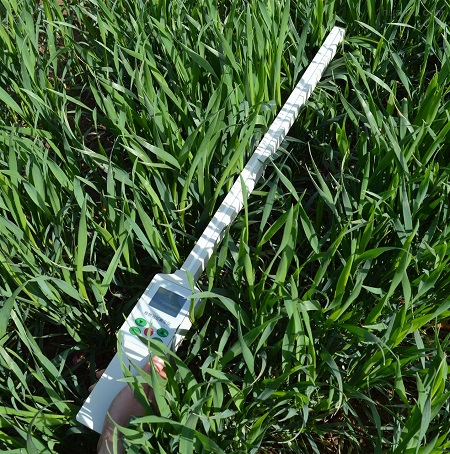

Measuring in filed
