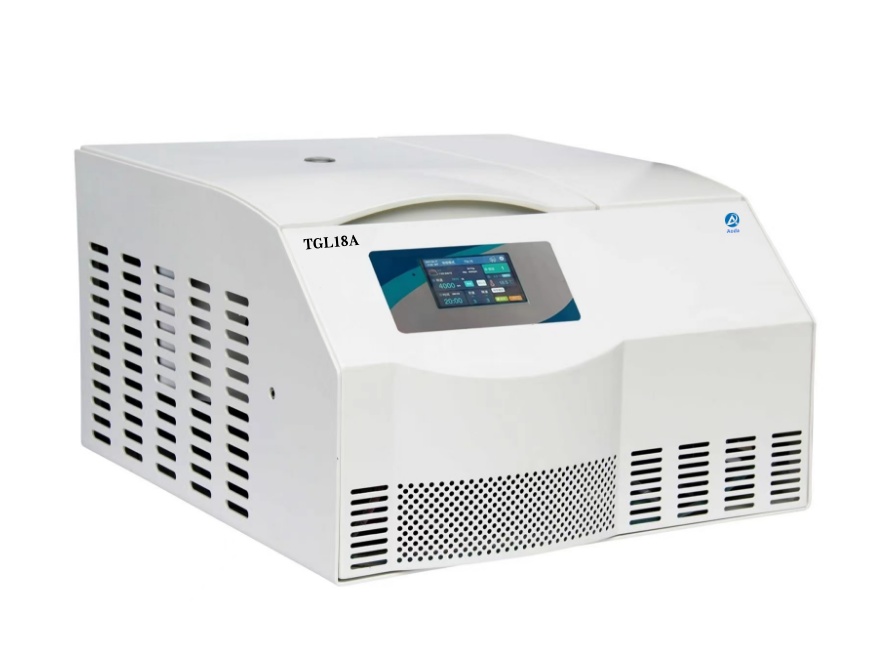

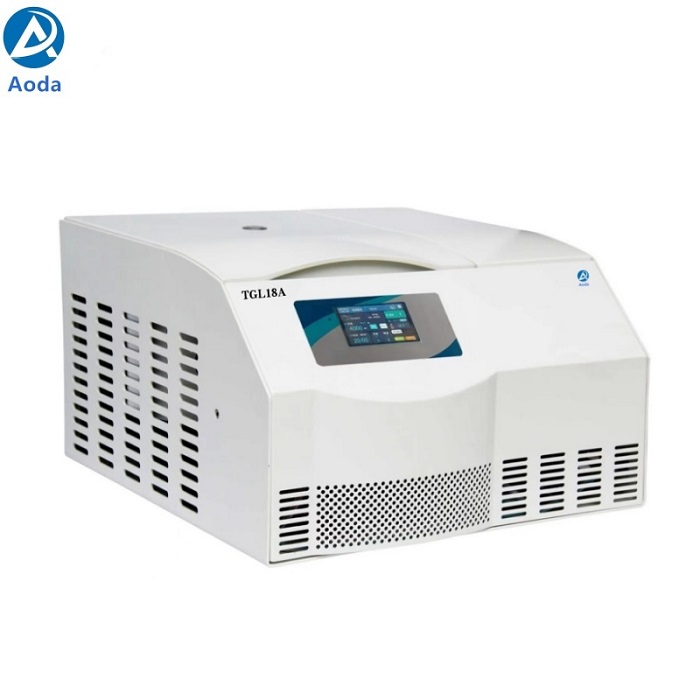

AODA TGL18A High Speed Refrigerated Centrifuge
TGL18A Table Top High Speed Refrigerated Centrifuge is widely used for laboratory, chemistry and hospital....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
AODA TGL18A High Speed Refrigerated Centrifuge
TGL18A Table Top High Speed Refrigerated Centrifuge is widely used for laboratory, chemistry and hospital.
1. 10 kinds of acceleration and deceleration levels for options.
2. Microprocessor-based equipment operation, LCD touch screen displays speed, time and temperature parameters. Continuously adjustable rotation speed with a maximum value up to 18500rpm. Maximum can store 100 programs.
3. Maintenance-free brushless frequency motor which in great torque, no powder pollution, quick in speed up and down.
4. Imbalance detection and over speed detection, electric door lock to prevent it from opening during operation.
5. The centrifuge body is made of high-quality painted steel, with #304 stainless-steel chamber.
6. Automatic self-diagnosis and warning signal about incorrect operation.
7. The system is able to maintain a temperature of 4°C even at maximum speed.
8. The system is capable of reaching a temperature of 4°C above ambient temperature in no more than 10 minutes.
9. With automatic rotor recognition(this is optional, not standard feature).
10. Lid with viewing hole.
Max. Speed | 18500rpm |
Max. RCF | 23990×g |
Max. Capacity | 6×100ml |
Time Range | 1~99h59min59s |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 60 |
Acc / Dcc | 10 Kinds |
Speed Accuracy | ±20r/min |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ 220 V ± 10%, 50/60 Hz, the plug and cable compliant with local standards |
Net weight (kg) | 90kg |
Dimensions | |
Temperature Range | -20℃~40℃ |
Temperature Accuracy | ±1℃ |
Matched Rotors for TGL18A
Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max. RCF（×g） |
18A-1 | Microplate rotor | 4000 | 2×3×96 hole | 2020 |
18A-2 | Swing rotor | 5000 | 4×1×50ml | 4420 |
18A-3 | 5000 | 4×1×100ml | 4420 | |
18A-4 | 4000 | 4×2×50 | 2820 | |
18A-5 | 4000 | 4×4×15ml | 2820 | |
18A-6 | 4000 | 4×6×10/7ml vacuum tube | 2580 | |
18A-7 | 4000 | 4×6×5ml vacuum tube adapter | 2170 | |
18A-8 | 4000 | 4×4×10/7ml vacuum tube | 2580 | |
18A-9 | 4000 | 4×4×5ml vacuum tube adapter | 2170 | |
18A-10 | Fixed Rotor | 14000 | 4×8PCR | 12070 |
18A-11 | Fixed Rotor | 13000 | 6×8PCR | 16080 |
18A-12 | Fixed Rotor | 14000 | 8×8PCR | 13390 |
18A-13 | Fixed Rotor | 13000 | 12×8PCR | 17220 |
18A-14 | Fixed Rotor | 14000 | 40×0.5ml | 19960 |
18A-15 | Fixed Rotor | 18500 | 12×1.5ml | 23990 |
18A-16 | Fixed Rotor | 15000 | 24×1.5ml | 20600 |
18A-17 | Fixed Rotor | 13500 | 30×1.5ml | 19340 |
18A-18 | Fixed Rotor | 11000 | 48×1.5ml | 12840 |
18A-19 | Fixed Rotor | 15000 | 16×5ml | 19350 |
18A-20 | Fixed Rotor | 14000 | 6×10ml | 16460 |
18A-21 | Fixed Rotor | 13000 | 12×10ml | 17030 |
18A-22 | Fixed Rotor | 11000 | 16×10ml | 13950 |
18A-23 | Fixed Rotor | 11000 | 8×15ml | 12730 |
18A-24 | Fixed Rotor | 9000 | 12×15ml | 9590 |
18A-25 | Fixed Rotor | 5000 | 24×15ml | 3500 |
18A-26 | Fixed Rotor | 5000 | 30×15ml | 3830 |
18A-27 | Fixed Rotor | 12000 | 6×30ml | 14000 |
18A-28 | Fixed Rotor | 12000 | 6×50ml(falcon) | 16050 |
18A-29 | Fixed Rotor | 12000 | 6×50ml(round) | 15960 |
18A-30 | Fixed Rotor | 11000 | 4×85ml | 13560 |
18A-31 | Fixed Rotor | 10000 | 4×100ml | 10310 |
18A-32 | Fixed Rotor | 8000 | 6×100ml | 7280 |
18A-33 | Fixed Rotor | 12000 | 24 capillaries | 15800 |
