Aoda AYC-100F Desktop constant temperature Thermostatic Shaker
AYC-100F Thermostatic Shaker is Reciprocate shaking mode,Swing range 20-260rpm ,Swing amplitude 0-50mm...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda AYC-100F Desktop constant temperature Thermostatic Shaker
Characteristics of AYC-100F Thermostatic shaker
※1. USB data storage system. The large storage capacity can automatically record and store the experimental process data throughout the whole process. And the temperature curve and speed curve can be displayed on the screen, and historical data, alarm records and door opening records can be checked at any time.
※2. The USB flash drive can complete data download instantly.
※3. Multi-stage speed, temperature and time control system. A variety of different speed, temperature and time experimental modes can be set at one time, and the operation mode can be automatically switched during operation.
※4. Ultra-low speed operation, automatic locking after the speed is out of control, and the start speed is adjustable. The unique dynamic balance design ensures smooth operation.
※5. The silent fan design, forced convection mode and unique air duct design ensure good temperature uniformity.
※6. Users can freely set the three operation modes of forward, reverse and forward and reverse alternation.
※7. 7-inch touch screen, the same interface displays the time, temperature and speed of setting and detection; and displays the current operation mode, date and time and alarm fault view.
8. Fault self-diagnosis function, displaying the fault location and fault code when a fault occurs, which can quickly and conveniently find and solve the problem.
9. The machine can be set to start up at an appointed time, and the machine can automatically run after the appointed time.
10. It has a power-off recovery function. If the power is accidentally cut off, it will automatically resume operation according to the original set program after the call is restored, avoiding the failure of the experiment due to power outage.
11. The operation interface has an encrypted lock function to prevent repeated operations and human errors.
12. High-precision speed control: PID feedback control to avoid long-term low-speed operation causing motor overheating and shutdown and causing losses.
13. Equipped with high-quality servo motors, precise speed control, good high and low speed performance, and strong stability. The minimum speed of 1rpm can be customized according to customer needs.
14. Equipped with filter magnetic rings to reduce the interference of external and self-wavelengths on the stability of the machine.
15. High-precision temperature control: PID feedback control, with temperature deviation alarm function.
16. The unique drive system makes the machine run smoothly, stably, durable and reliable.
17. Intelligent alarm environment scanning microprocessor controller. It has door opening automatic stop protection, self-diagnosis, and safety alarm functions.
18. It can be timed or run continuously, and display the remaining time or running time.
19. The unique slow start design prevents the splashing of the shaking bottle liquid caused by sudden start, effectively ensuring the accuracy of quantitative experiments.
20. Streamlined, extra-large window design, ABS box, mirror stainless steel lining and cavity components, tilted humanized control panel.
Specifications of AYC-100F Thermostatic shaker
Control model | P.I.D microprocessor chip |
Convection model | Forced convection |
Shake model | Reciprocate |
Display | 7 Inch touch screen |
Control system | Multiple Programmable mode(temp,speed,time) |
Swing range(rpm) | 0，20-260(To do static culture) |
Swing accuracy(rpm) | ±1 |
Orbit Diameter(mm) | 0-50 |
Maximum capacity | 100ML×23 OR 250ML×16 OR 500ML×9 OR 1000ML×6 OR 2000ml×4 |
Standard capacity | 500ml×3 250ml×3 100ml×4 50ml×4 |
Size of platform(mm) | 410×360 |
Timing range(h) | 0-999.9(Any time,continuous duty) |
Temperature range(℃） | ambient +5°Cto 65°C（No refrigeration） |
Temperature regulate sensitivity(℃） | ±0.1 |
Temperature uniformity(℃） | ±0.5（37℃） |
Temperature uniformity(℃） | ≤0.1（37℃） |
Number of platform | One |
Outside dimension（W*D*H)（mm） | 860×710×520 |
Capacity（L) | 70 |
Power（W) | 550 |
Power supply | AC220±10% 50HZ |
Net weight(kg) | 75 |
Gross weight(kg) | 105 |
Other functions | Ultra-low speed start, Adjustable start speed，Overspeed auto-prtection，Automatically stop when opening the door，Watch dog timer，Parameters Storage，Encryption parameters，Electricity incoming recovery，Refrigeration unit overload protection，Sound and light alarm when upper and lower overtemperature |

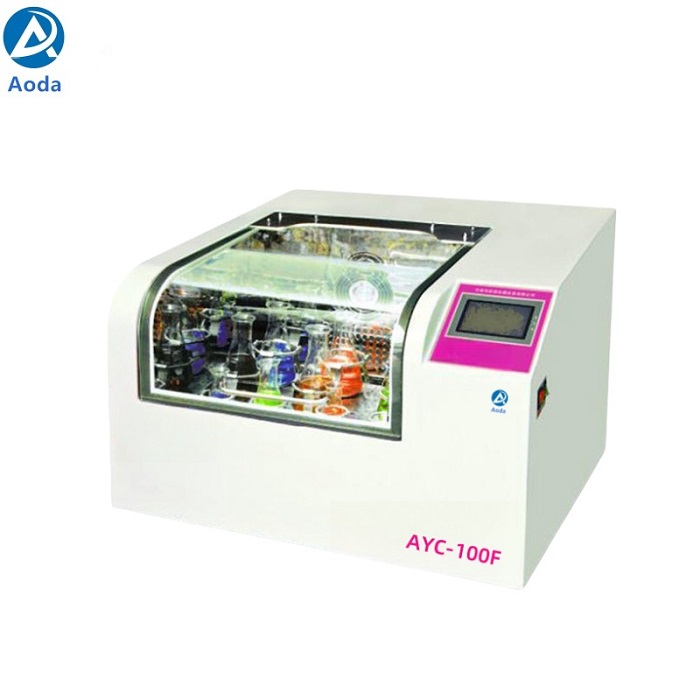

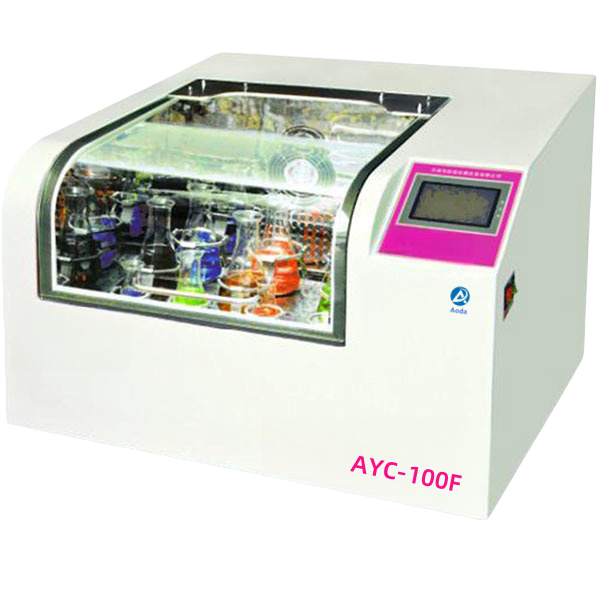

AYC-100F Thermostatic shaker picture
