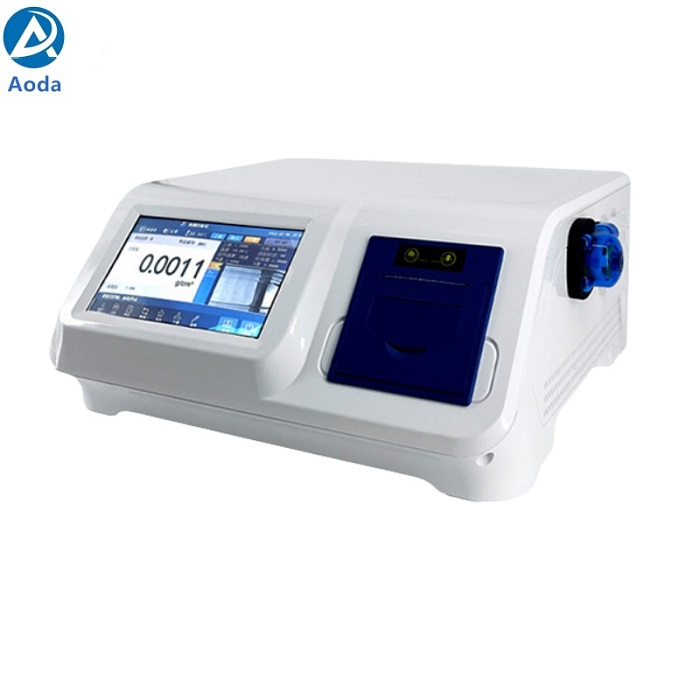

JHY series Constant Temperature Liquid Density Meter

JHY series Constant Temperature Liquid Density Meter

The JHY series constant-temperature electronic liquid density meter utilizes Peltier temperature control technology to maintain the sample liquid temperature at 20°C. Electromagnetic oscillation of the U-tube is then generated, and the density of the sample liquid is calculated based on the oscillation frequency. Capable of measuring most liquids (except those with high viscosity and those corrosive to glass, such as hydrogen fluoride), the meter is widely used in analytical fields such as beverages and foods, petrochemicals, inspection and quarantine, and metrology calibration for its practicality, reliability, high accuracy, and high measurement precision.

The constant temperature liquid density meter can also be used with density and concentration conversion software for corresponding liquids to directly read the concentration value. It also features calibration, sampling, constant temperature control, testing, cleaning, drying, operation prompts, observation window, density curve, sample library, data storage, data statistics, and result printing, making it more convenient to use and maintain.

Meet standard

GB/T29617,ISO12185,ASTMD4052/D5002,GB/T29617-2013,GB/T2013-2010，GB23971-2009,GB4747-2009,SH/T0604-2000,SN/T2383-2009,SH/T0729-2004, ASTMD4052,ASTMD5002,ASTMD1250,ASTMD3505,IS012185, ISO19967

This series is suitable for measuring a variety of materials.

It is mainly used for fine chemicals, petroleum fuels, paints, coatings, asphalt, inks, resins, acidic liquids, alkaline liquids, etc.

1. Touchscreen: Direct touch operation makes operation and settings more convenient and offers a richer range of functions.

2. Constant Temperature Control: Incorporates Peltier temperature control technology for more accurate testing.

3. Peristaltic Pump: No leakage or backflow, constant flow rate, and higher and more stable repeatable test accuracy.

4. Sample Library: Stores 100 sets of sample presets for test selection.

5. HD Real-Time Video: Conveniently monitors the conditions within the U-shaped glass tube during sample feeding, cleaning, and drying.

6. Calibration: When air values drift due to long periods of disuse, the instrument can be calibrated using pure water as a standard.

7. Density Curve: Observe changes in tube sample density in real time.

8. Data Storage: Stores 100 test records and generates statistics for the most recent n records.

9. Result Printing: Equipped with a printer for printing test results.

10. Other: Optional corrosion-resistant hoses are available to meet the needs of testing corrosive liquids.
