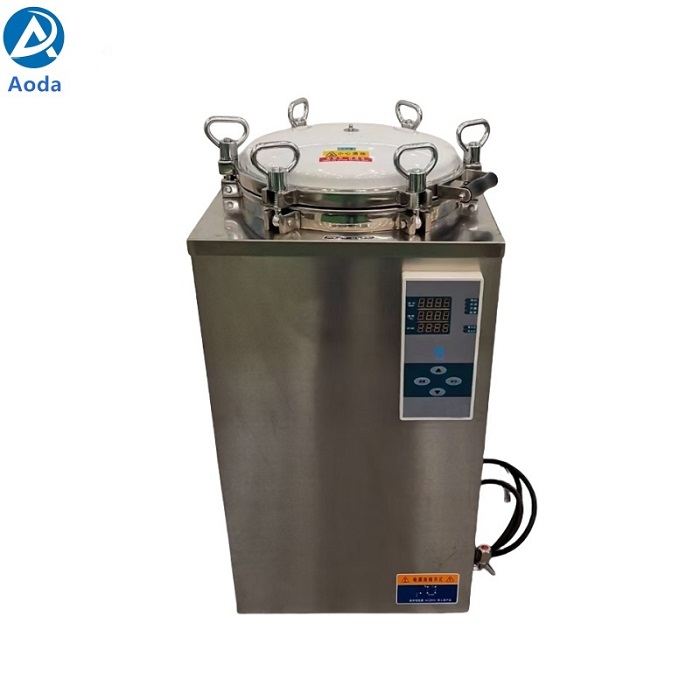

Aoda Vertical Counter Pressure Autoclave

Aoda Vertical Counter Pressure Autoclave

Counter Pressure Autoclave is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other items. It is especially suitable for food research units as an ideal equipment for sterility testing....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda Vertical Counter Pressure Autoclave


The Counter Pressure Autoclave is a small and medium-sized reverse pressure steaming equipment controlled by a microcomputer program. The sterilizer adopts electric heating, directly injects water into the sterilization chamber for heating, generates high-pressure steam required for sterilization, and sterilizes the items that need to be sterilized. After the sterilization is completed, the water pressure is quickly cooled for 3 minutes through external compressed air, and the items in the cylinder can drop to 30~40℃. The sterilizer is equipped with program control and can perform two types of operations: boiling disinfection and rapid cooling pressure sterilization. The boiling range is set at ≤100℃. The rapid cooling pressure sterilization range temperature is pre-selected within 105~134℃; and it is equipped with heater overload protection and sterilization end buzzer alarm performance. It is easy to operate, safe and reliable.



This product is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other items. It is especially suitable for food research units as an ideal equipment for sterility testing.


Characteristics

◆The immersion electric heating tube is used, which has the function of preventing dry burning. When the water level is lower than the specified water level line, the sterilizer automatically cuts off the heating power supply and sends out an alarm signal.

◆Equipped with a timer to automatically control the sterilization time.

This product is equipped with a safety valve, with steam overpressure 0.25MPa self-pressure relief, when the temperature exceeds 140℃, the power supply automatically cuts off the double safety protection, water cut-off overheating protection, and current overload automatic cut-off safety interlock device protection, which is safe and reliable to use.

◆This product is suitable for disinfection and sterilization of food packaging, utensils, instruments and other items. It is especially suitable for food scientific research units to conduct sterility tests.

◆The whole machine is made of high-quality stainless steel, which has the advantages of corrosion resistance, easy maintenance and long service life.


Techincal parameter

MODEL

LS-35LD

LS-50LD

LS-75LD

LS-100LD

LS-120LD

LS-150LD

Technical Data

Chamber volume

35L

φ318×450mm

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

120L

φ480×660mm

150L

φ510×740mm

Working pressure

0.22Mpa

Working temperature

134℃

Max.working pressure

0.23Mpa

Heat average

≤±1℃

Timer range

0-99min/0-99hour59min

Temperature adjust range

105-134℃

Power

2.5KW/AC220V 50HZ

3KW/AC220V 50HZ

4.5KW/AC220V 50HZ

7KW/AC220V 50HZ

Overall dimension(mm

480×460×850

520×520×980

560×560×980

590×590×1080

600×640×1140

670×690×1130

Transport dimensionmm

570×550×970

590×590×1110

650×630×1150

680×650×1220

730×730×1270

760×760×1270

G.W/N.W

56Kg/42Kg

68Kg/50Kg

90Kg/70Kg

105Kg/85Kg

125Kg/100Kg

135Kg/110Kg

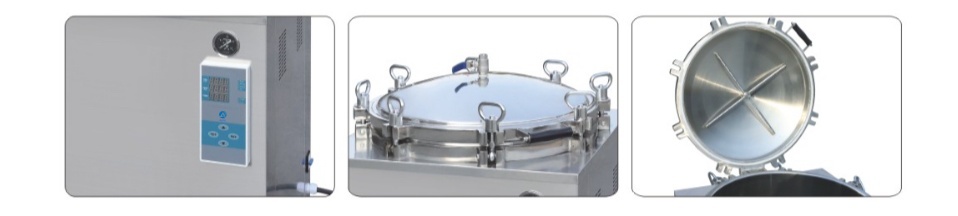

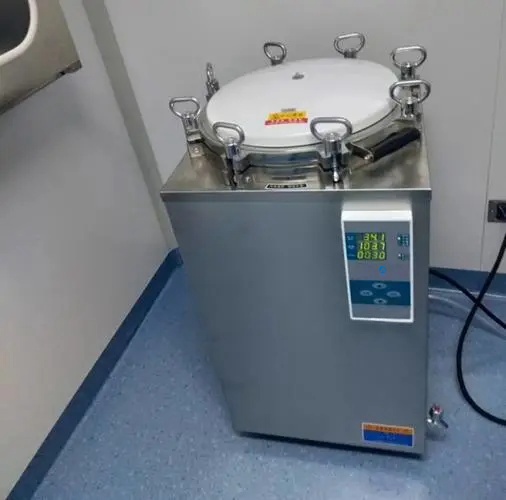

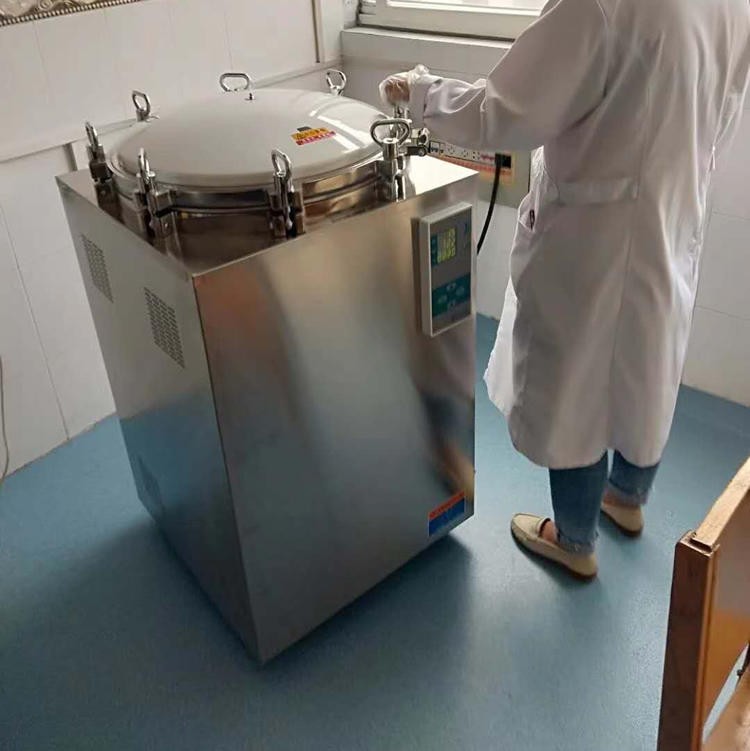

Autoclave photoes


steam sterilization.jpg

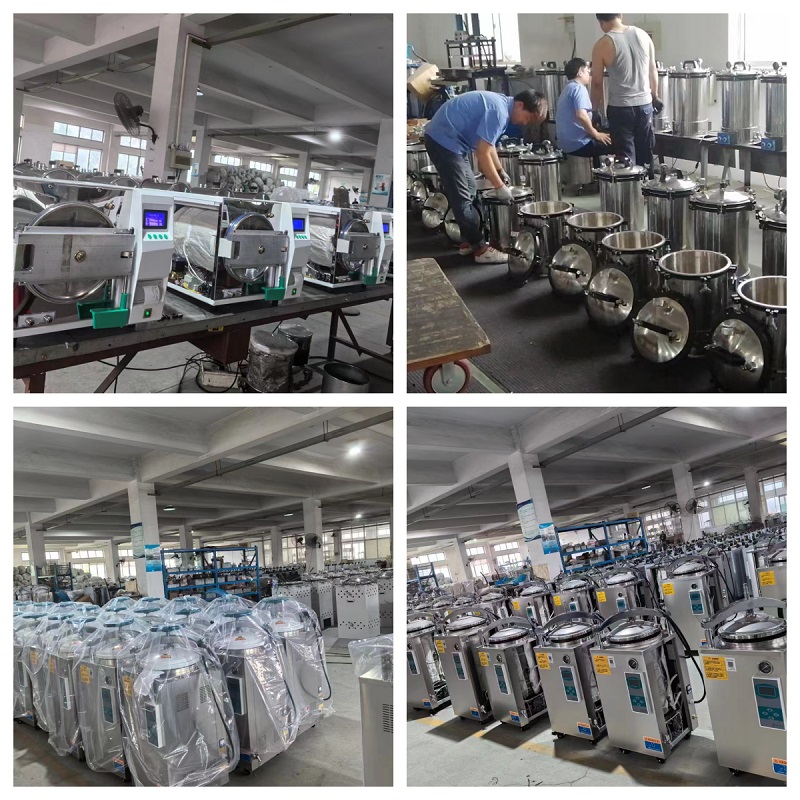

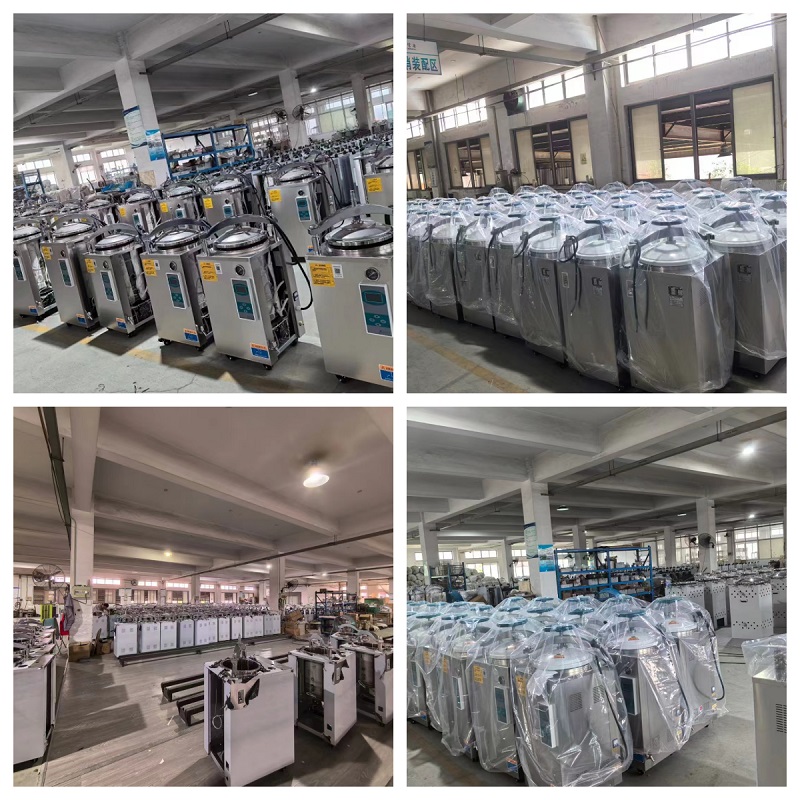

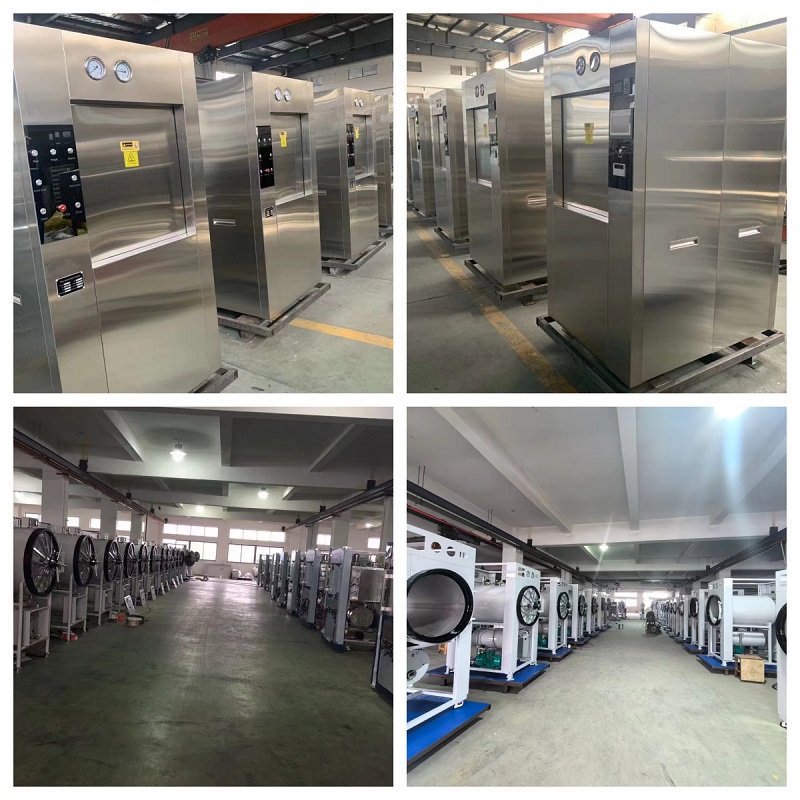

Factory & Workshop
