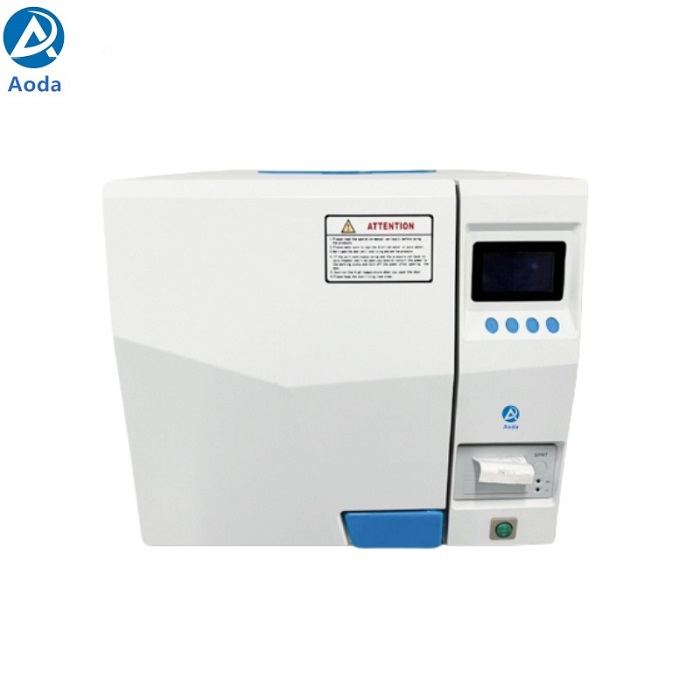

Aoda 12L 18L 24L Class B Tabletop Pulsating vacuum steam sterilizer

Aoda 12L 18L 24L Class B Tabletop Pulsating vacuum steam sterilizer

Pulsating vacuum steam sterilizer is designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda 12L 18L 24L Class B Tabletop Pulsating vacuum steam sterilizer


The table type sterilizers are safely autocontrolled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food, etc.


Tabletop Pulsating vacuum steam sterilizer Characteristics

• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrumentis less than 0.2%.

• LCD display working status, touch keys.

• The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow,multi apertures and inset pipes. It makes sure the instrument can be sterilized completely.

• Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.

• It is installed with BOWIE&DICK which measures the penetration of water steam.

• It has vacuum test which can make sure the ability of vacuum testing.Fast and independent steam generator.

• Built-in mini printer which can record the sterilizing information.

• Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.

• It inactivates the HIV, HBV, BSE, and bacillus efficiently.

• This product is designed for open water tank, water purification, sewage tank separation, convenient and intuitive.



Tabletop Pulsating vacuum steam sterilizer Technical Data

MODEL

TM-XD12DV

TM-XD20DV

TM-XD24DV

Technical Data

Stenilizing chamber volume

12L

φ200×370mm

18L

φ250×360mm

24L

φ250×470mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0-99min

Heat average

≤±1℃

Power

AC220V.50Hz/1.8KW

AC220V.50Hz/2KW

AC220V.50Hz/2KW

Dimensionmm

560×470×400

560×470×400

675×470×400

Exerior package dimensionmm

655×560×495

655×560×495

765×560×495

G.W/N.W

48/43Kg

52/47Kg

58/53Kg

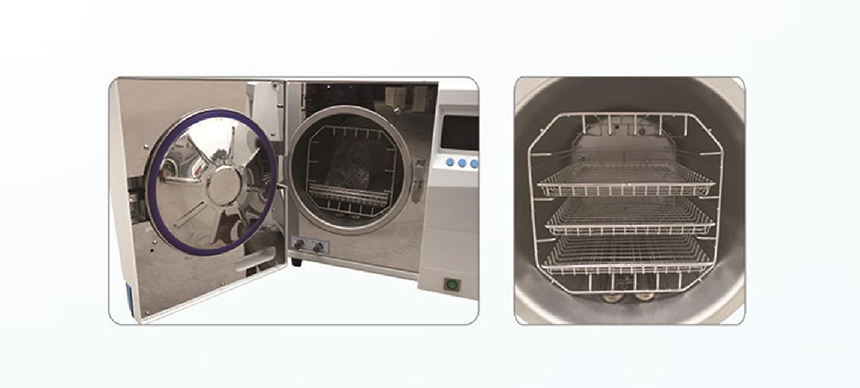

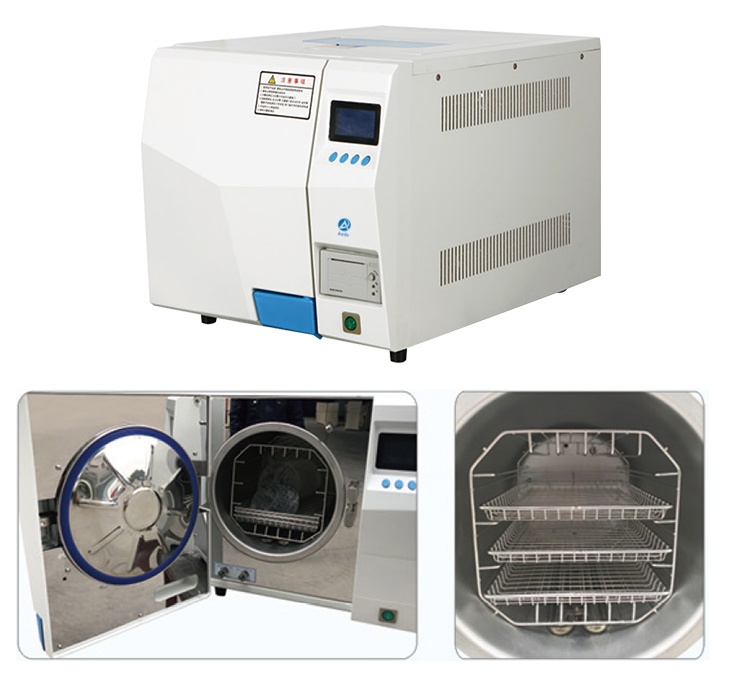

Tabletop Pulsating vacuum steam sterilizer details images

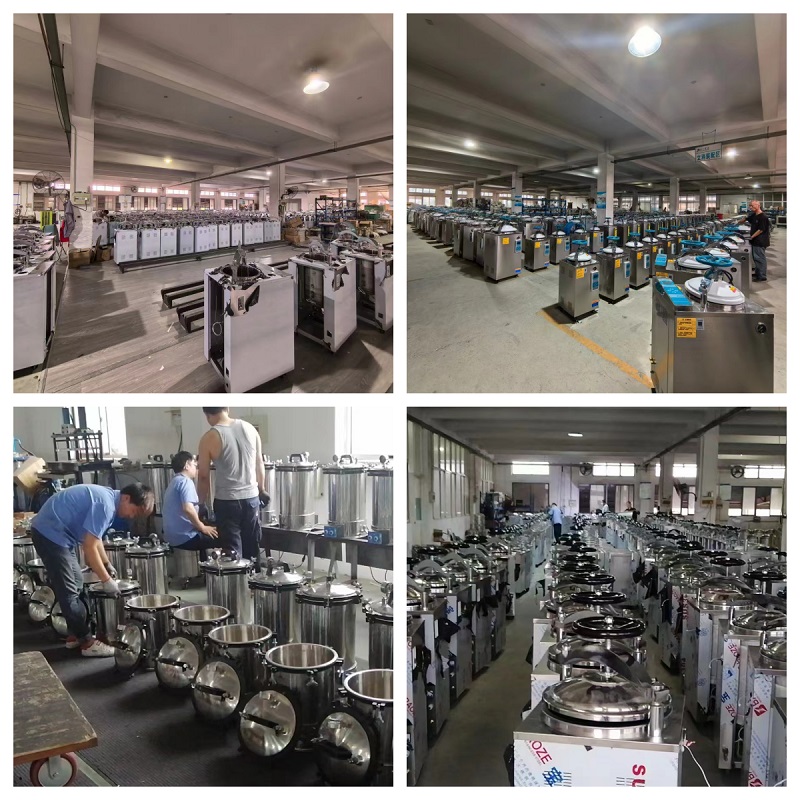

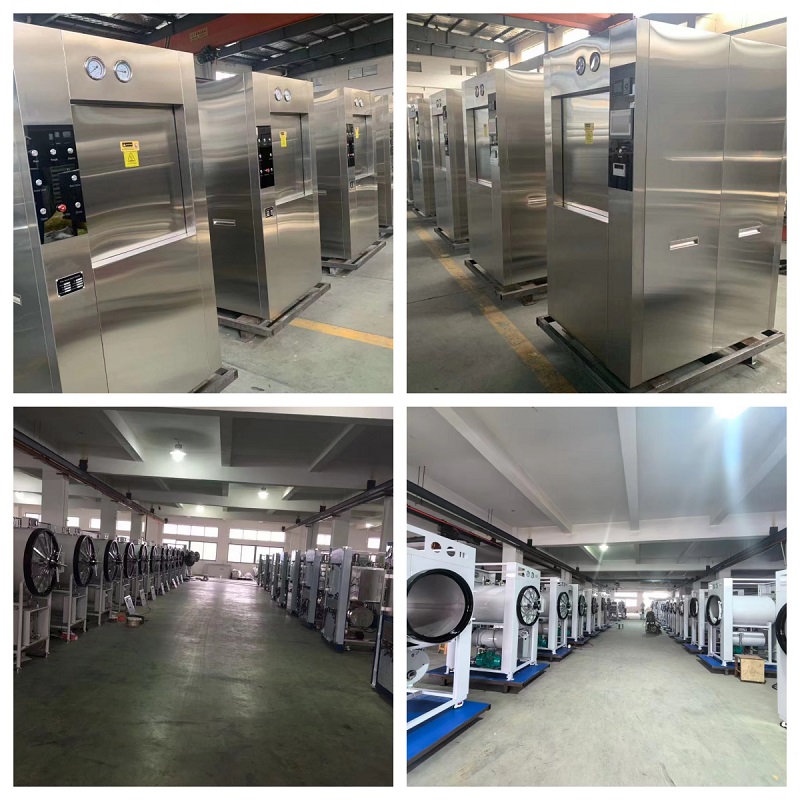

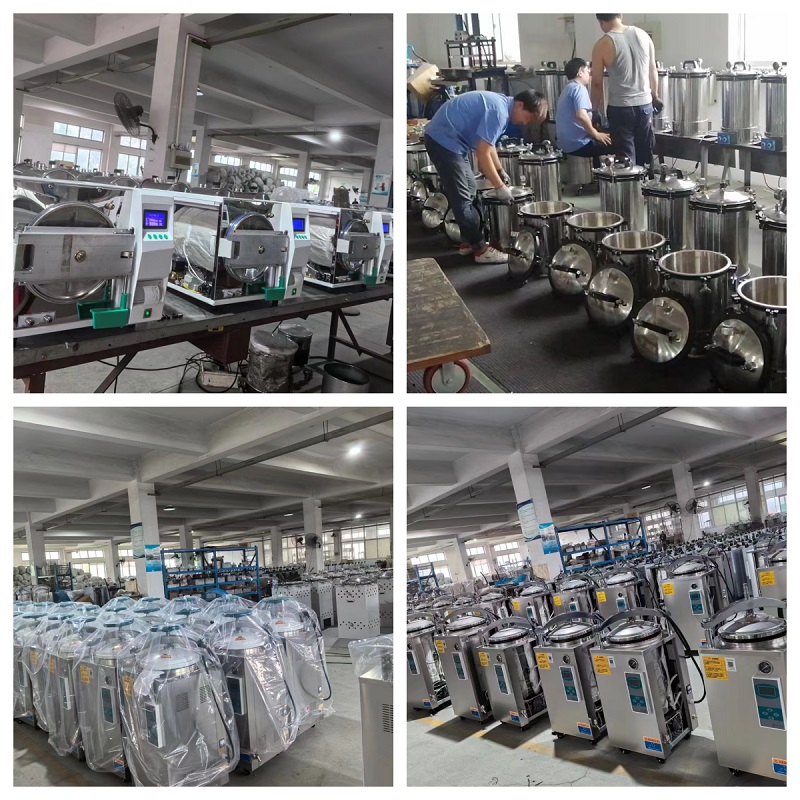

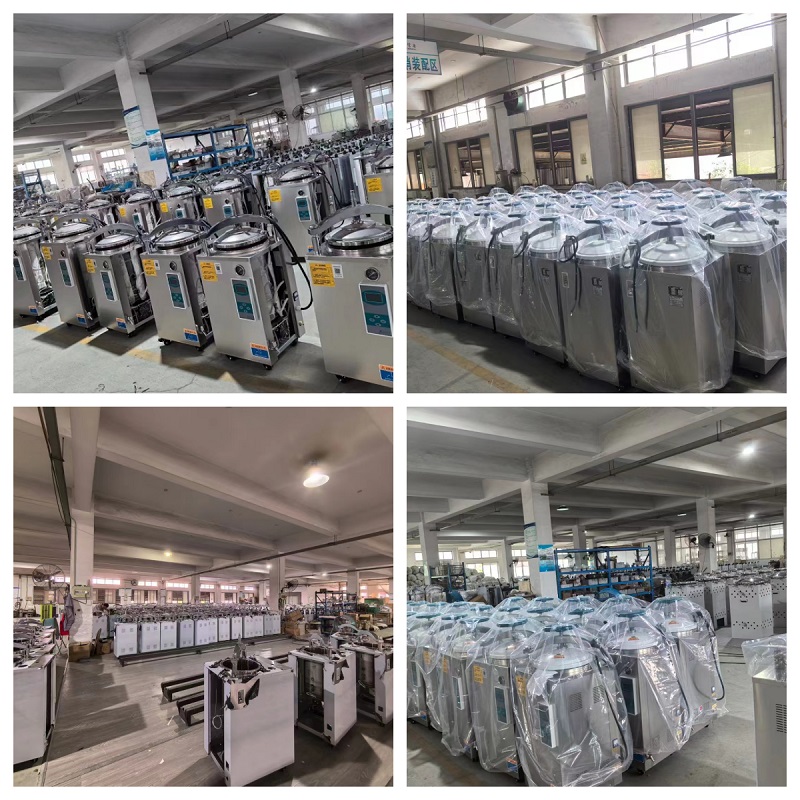

Workshop
