35L 50L 75L 100L 120L 150L Vertical pressure steam sterilizer autoclave

35L 50L 75L 100L 120L 150L Vertical pressure steam sterilizer autoclave

The vertical pressure steam sterilizers are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

35L 50L 75L 100L 120L 150L Vertical pressure steam sterilizer autoclave


The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.


Features 蓝.jpg

• Fully stainless steel structure.

• LED display of working status, touch type key.

• Auto discharge the cool air, and steam discharging automatically after sterilization.

• Automatically shut off with beep reminding after sterilization.

• Easy to operate, safe and reliable.

• With two stainless steel sterilizing baskets.

• Built-in thermal printer,easy for user to print sterililzation data



Vertical pressure steam sterilizer Autoclave

MODEL

AHL-35L

AHL-50L

AHL-75L

AHL-100L

AHL-120L

AHL-150L

Technical Data

Chamber volume

35L

φ315*550mm

50L

φ350*640mm

75L

φ400*690mm

100L

φ450*710mm

120L

Φ510*780mm

150L

φ510*860mm

Working pressure

0.22Mpa

Working temperature

134℃

Max.working pressure

0.23Mpa

Heat average

≤±1℃

Timer range

0-99min/0-99hour59min

Temperature adjust range

105-134℃

Power

2.5KW/AC220V 50HZ

3.5KW/AC220V 50HZ

4.5KW/AC220V 50HZ

Package dimension

520x560x960mm

560x600x1100mm

600x640x1130mm

640x680x1200mm

720x760x1180mm

720x760x1260mm

G.W

58Kg

71Kg

92Kg

106Kg

116Kg

130Kg

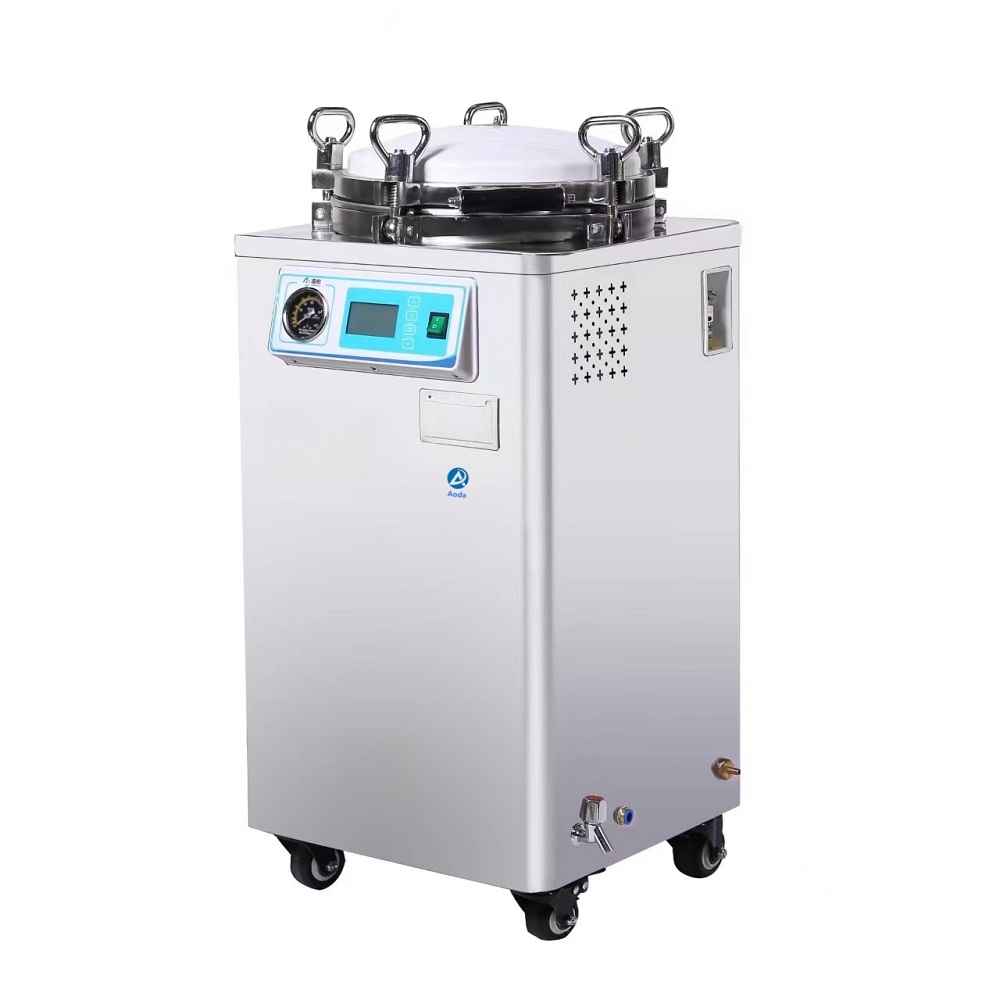

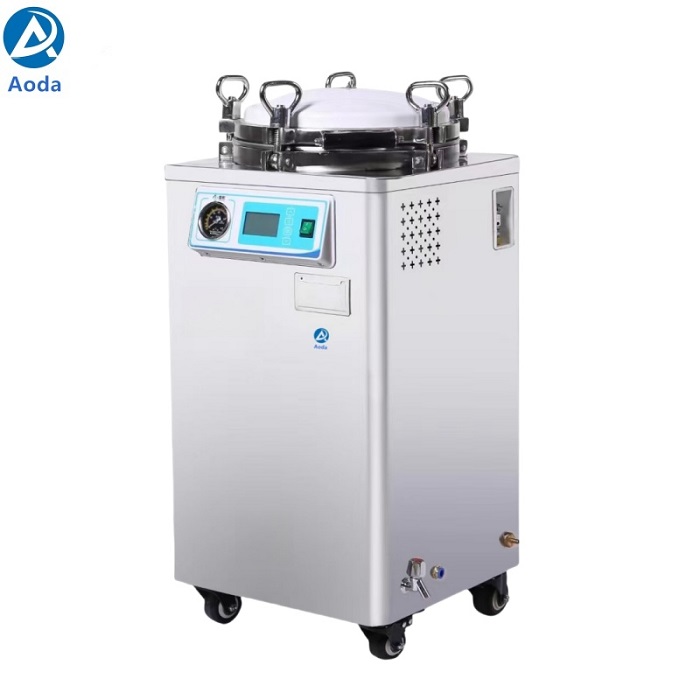

Product photo 蓝.jpg
