Aoda AD-V24 Android system 24 channel Soil Fertilizer Plant NPK analyzer

Aoda AD-V24 Android system 24 channel Soil Fertilizer Plant NPK analyzer

AD-V24 NPK analyzer used to measure N,P,K,Organic matter,Medium and trace elements in Soil,Fertilizer and Plant....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda AD-V24 Android system 24 channel Soil Fertilizer Plant NPK analyzer


AD-V24 NPK analyzer 7-inch color touch screen display, Android intelligent operating system,used to measure N,P,K,Organic matter,Medium and trace elements in Soil,Fertilizer and Plant.


Features 蓝.jpg

1. The cassette part adopts a 24 channel solid-state module, 24 optical paths and receivers, which can be measured simultaneously or separately. The colorimetric dark box body is integrated without mechanical displacement and wear, ensuring the accuracy of the measurement results.

2. 7-inch color capacitive touch screen display, Android intelligent operating system.

3. Built in board clock chip, the screen can synchronously display the current year, month, day, hour, and minute.

4. Recommended fertilizer application for calculating the target yield of 105 agricultural, fruit tree, and economic crops. Crop varieties, crop yields, fertilizer varieties, and target yields can be set according to local conditions, and the fertilizer application amount can be automatically calculated.

5. Built in micro printer, test results can be stored and printed on this machine. The stored and printed content should include: testing unit, testing date, testing time, testing items, sample content, crop variety, fertilizer variety, fertilizer quantity and other relevant information.

6. Built in data storage, automatic storage of test data, unlimited storage of data, no loss of database during power outage, and the ability to perform single deletion, complete deletion, print data, print environment parameters, forward and reverse sorting, sorting by project name, filtering by date and other functions on the host.

7. Data transmission can be remotely transmitted to a computer via WiFi or GPRS for further processing of the data.

8. The instrument is equipped with soil information monitoring software, which can summarize and report nutrient data to the soil information monitoring system.

9. It has RJ45 and USB interfaces, and can be connected to external USB drives and mice.

10. The instrument is versatile and can be connected to multiple sensors to measure parameters such as CO2, soil salinity, photosynthetically active radiation, and light intensity. (Optional)

111. Equipped with a built-in high-power lithium battery pack, it can be used for both AC and DC, and can achieve field flow testing. (Optional)


Test items

It can detect available nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, organic matter content, and trace elements in soil, plants, chemical fertilizers, biological fertilizers and other samples.



1. Number of channels: 24 channels

2. Multiple samples can be tested simultaneously, and each sample is controlled by a program to work independently without interfering with each other.

3. Range and Resolution: 0.001-9999

4. Stability: Drift less than 0.003 within three minutes

5. Linear error: ± 1.0%

6. Repetitive error (A): less than 0.005

7. Moisture content testing range: A. Humidity range: 0-100%, B. Measurement accuracy: ± 3%

8. PH value (acidity and alkalinity) measurement technical parameters: A. Test range: 1-14, B. Error: ± 0.1

9. Salt content (conductivity) measurement technical parameters: A. Test range: 0.01% to 1.00%, B. Relative error: ± 5%

10. Sensitivity: Red light ≥ 4.5 × 10-5, blue light ≥ 3.17 × 10-3, orange light ≥ 2.13 × 10-3, green light ≥ 4.50 × 10-3

11. Wavelength range: Red light: 680 ± 2nm; Blue light: 420 ± 2nm; Orange light: 590 ± 2nm; Green light: 505 ± 2nm

12. Combined extraction of nitrogen, phosphorus, and potassium: simultaneous extraction of nitrogen, phosphorus, and potassium from soil can be completed in 3 minutes

13. Test speed: Test one soil sample (N, P, K) for ≤ 30 minutes, and simultaneously test five soil samples for ≤ 50 minutes (including pre-treatment time)

14. Instrument size: 440mm × 300mm × 160mm

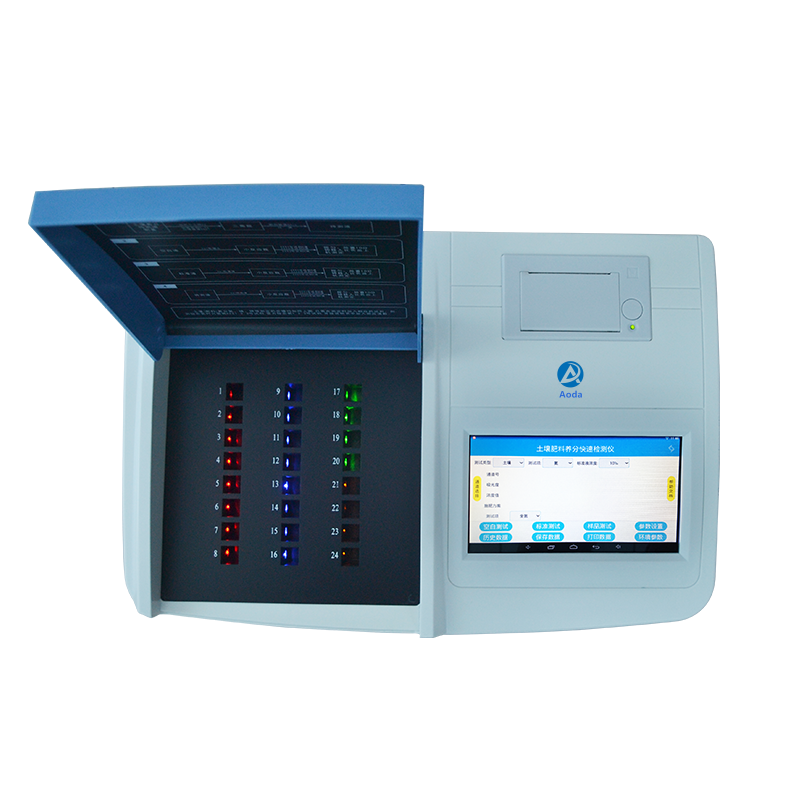

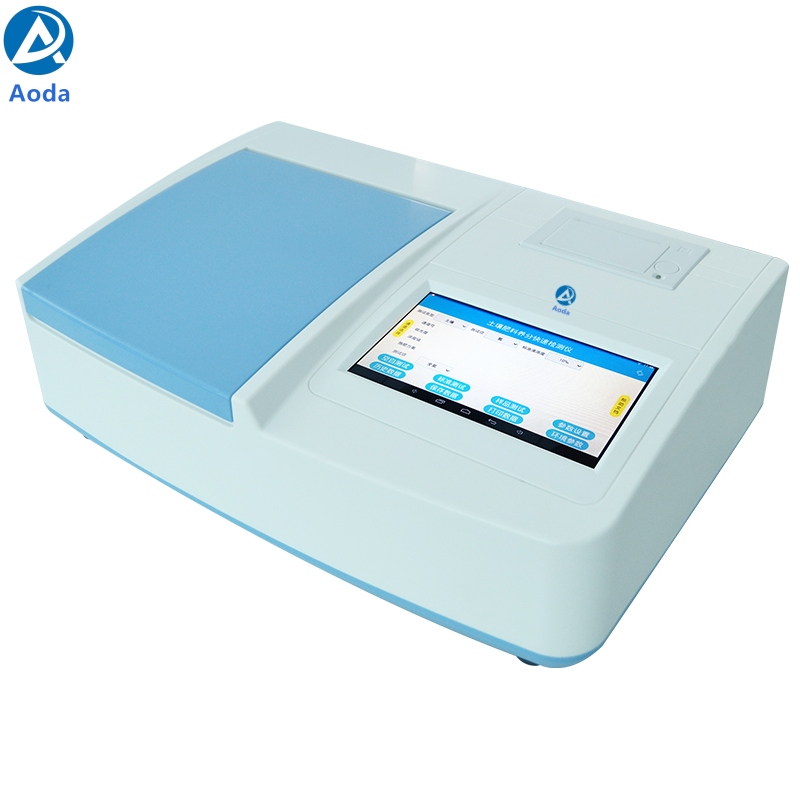

Product photo 蓝.jpg


AD-V24 Soil Fertilizer Plant NPK analyzer configuration

Instrument box: host, balance, electrode, colorimetric dish, power cord, communication software.

Medicine box: triangular bottle, volumetric flask, funnel, measuring cylinder, filter paper, aluminum box, washing bottle, 1 set of medicine, etc.

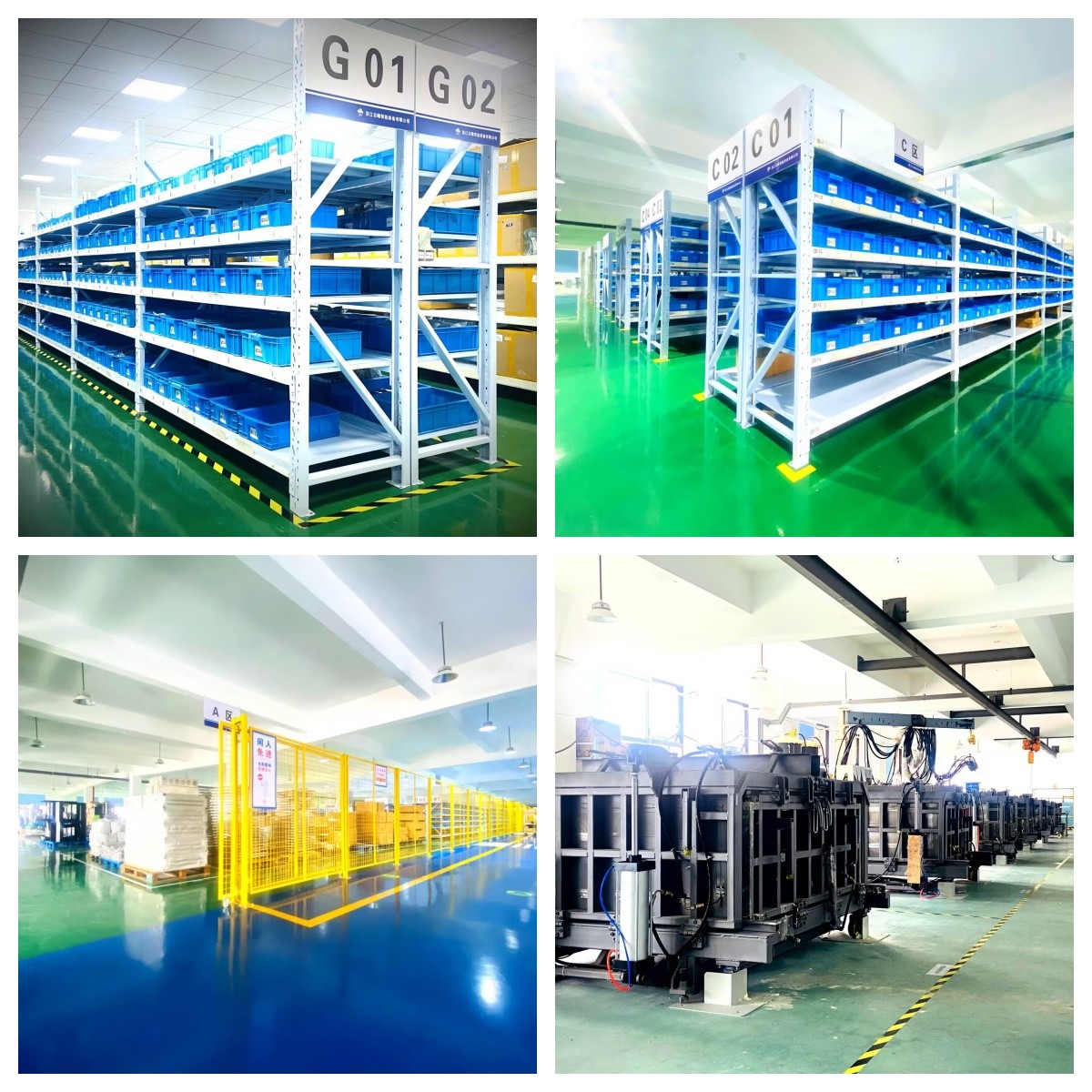

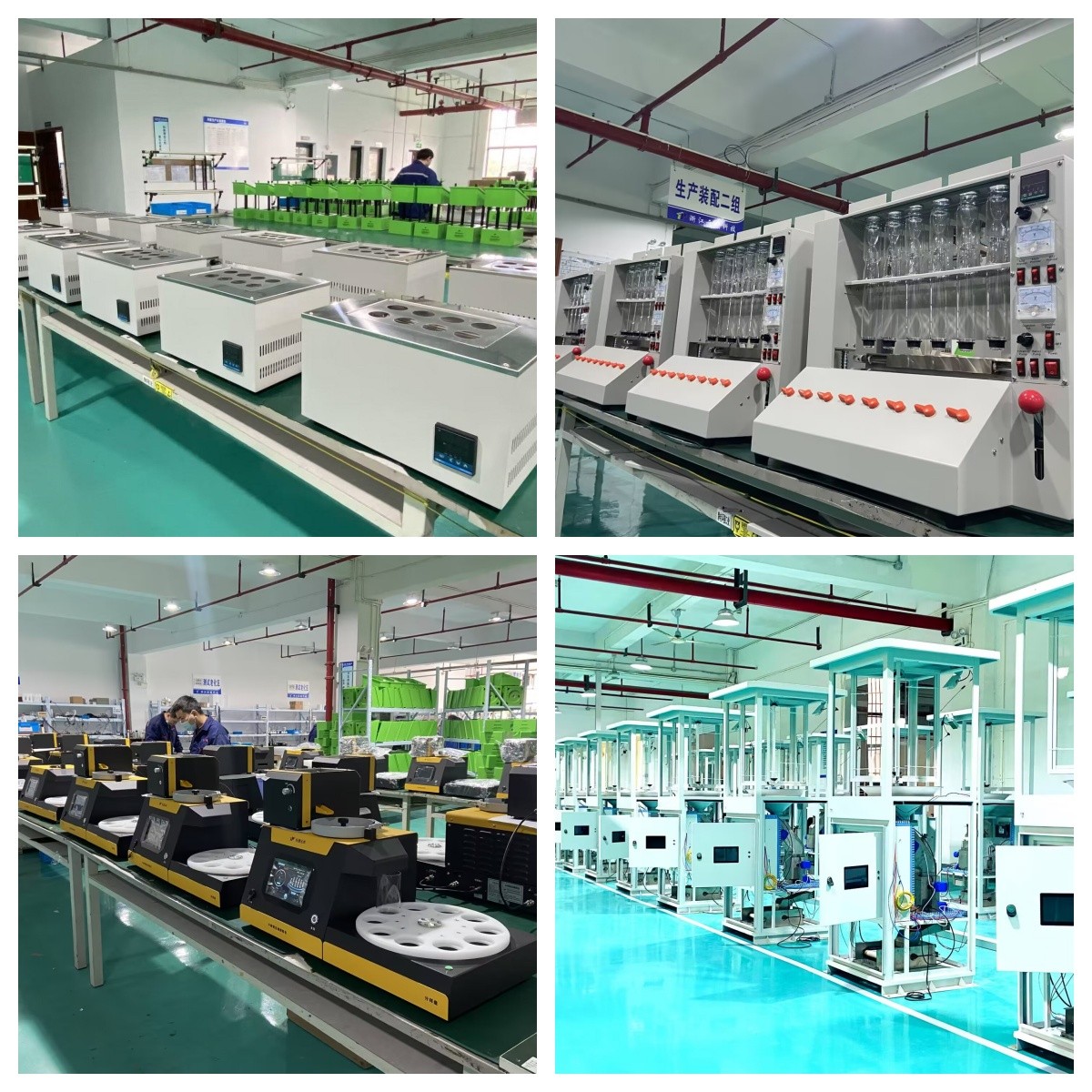

factory & workshop.jpg
