Aoda T860 Automatic Titrator
T860 Automatic Titrator is a lab titration device with high analysis accuracy under the principle of potentiometric titration....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda T860 Automatic Titrator
T860 Automatic Titrator is a lab titration device with high analysis accuracy under the principle of potentiometric titration. It enjoys modular design, consist of three parts: volume titration device, control device and measuring device. The titration methods include macro titration, micro titration, volume setting titration, EP, etc.
Features
Zero-dead volume solenoid valve，hanging easily for PTFE burette.
Ultrathin stirring device, adopt coil realize magnetic Stir.
Accuracy closed-loop control for volume.
High-accuracy burette accurate to 0.005mm.
Simple design, discrete stirring unit, detachable easily.
LCD touch screen.
Wide operating voltage range 110~240V, apply to global client.
Specifications
Measurement mode | MEAS | pH/mV |
CAL | pH calibration | |
SET | End point setting | |
MET | monotonic titration | |
Burette | Volume | 15mL/25mL |
Stirring | Mode | magnetic |
Titration cup volume | 100mL | |
Electrode | mv/pH | 1 x BNC |
Reference | 1 | |
PT1000 | 1 x NTC | |
Communication | USB | 1 |
Stirrer | 1 | |
Power | 1 | |
Printer | 1 |
Technical parameters
mV/pH | Measurement range | ±1,999 mV 0.00~14.00 pH |
Resolution: | 0.1 mV / 0.01 pH | |
Error | 0.2 mV / 0.02pH | |
PT1000 | Measurement range | 0-100℃ |
Resolution: | 0.1 ℃ | |
Error | 0.2 ℃ | |
Burette | 15 mL tolerance | ±0.025mL |
25 mL tolerance | ±0.035mL | |
Dosing Repeatability | 0.20% | |
mV Repeatability | ≤0.2mV | |
Controller | Display | 7'' inch touch screen |
Information | Weight | 10 Kg |
Power | 110-240V,50/60 Hz |

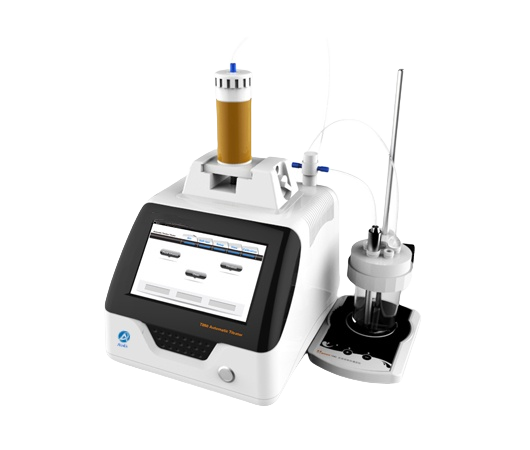

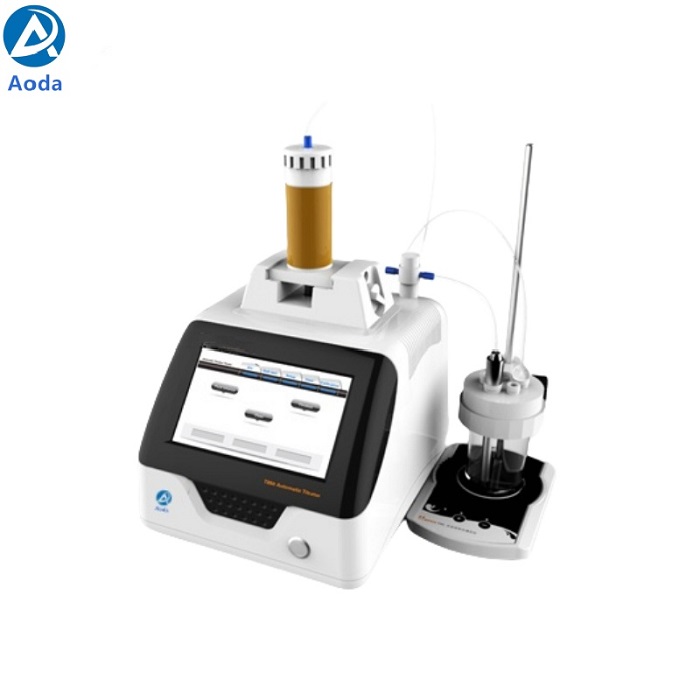

Product photo
