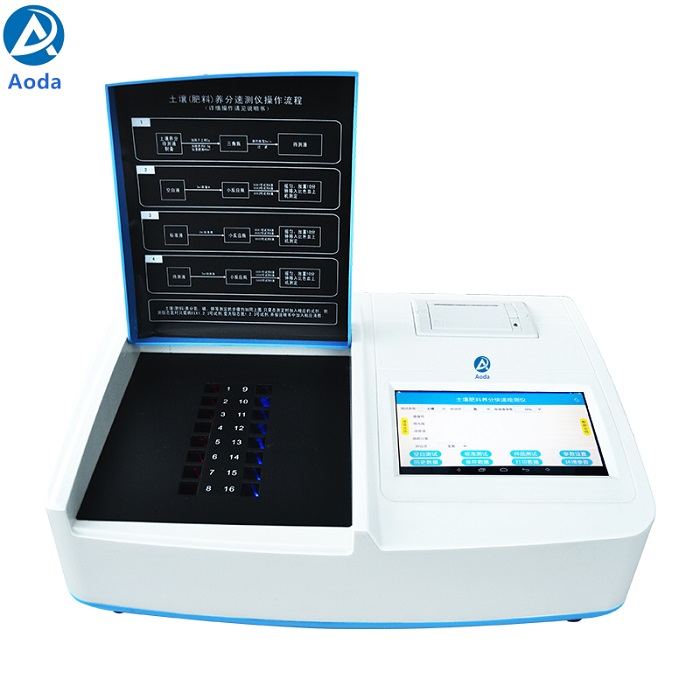

Aoda AD-V16 Android system Soil nutrient meter

Aoda AD-V16 Android system Soil nutrient meter

AD-V16 Soil nutrient meter adopts Android operation system,7 inch large colorful touch screen,16 test channels,max test 16samples at a time.

1. The cassette part adopts a 16 channel solid-state module, 16 optical paths and receivers, which can be measured simultaneously or separately. The colorimetric dark box body is integrated without mechanical displacement and wear, ensuring the accuracy of the measurement results.

2. 7-inch color capacitive touch screen display, Android intelligent operating system. Humanized English operating interface.

3. Built in board clock chip, the screen can synchronously display the current year, month, day, hour, and minute.

4. Recommended fertilizer application for calculating the target yield of 105 agricultural, fruit tree, and economic crops. Crop varieties, crop yields, fertilizer varieties, and target yields can be set according to local conditions, and the fertilizer application amount can be automatically calculated.

5. Built in micro printer, test results can be stored and printed on this machine. The stored and printed content should include: testing unit, testing date, testing time, testing items, sample content, crop variety, fertilizer variety, fertilizer quantity and other relevant information.

6. Built in data storage, automatic storage of test data, unlimited storage of data, no loss of database during power outage, and the ability to perform single deletion, complete deletion, print data, print environment parameters, forward and reverse sorting, sorting by project name, filtering by date and other functions on the host.

7. Data transmission can be remotely transmitted to a computer via WiFi or GPRS for further processing of the data.

8. The instrument is equipped with soil information monitoring software, which can summarize and report nutrient data to the soil information monitoring system.

9. It has RJ45 and USB interfaces, and can be connected to external USB drives and mice.

10. The instrument is versatile and can be connected to multiple sensors to measure parameters such as CO2, soil salinity, photosynthetically active radiation, and light intensity. (Optional)

11. Equipped with a built-in high-power lithium battery pack, it can be used for both AC and DC, and can achieve field flow testing. (Optional)

Test items

Detect the content of available nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, and organic matter in soil, chemical fertilizers, organic fertilizers, biological fertilizers, and plants

1. Number of channels: 16 channels

2. Multiple samples can be tested simultaneously, and each sample is controlled by a program to work independently without interfering with each other.

3. Range and Resolution: 0.001-9999

4. Stability: Drift less than 0.003 within three minutes

5. Linear error: ± 1.0%

6. Repetitive error (A): less than 0.005

7. Moisture content testing range: A. Humidity range: 0-100%, B. Measurement accuracy: ± 3%

8. PH value (acidity and alkalinity) measurement technical parameters: A. Test range: 1-14, B. Error: ± 0.1

9. Salt content (conductivity) measurement technical parameters: A. Test range: 0.01% to 1.00%, B. Relative error: ± 5%

10. Dew point measurement technical parameters: range: -40 ℃ to 120 ℃; Accuracy: ± 0.4 ℃; Resolution: 0.1 ℃

11. Technical parameters of photosynthetically active radiation: range: 0-2700 μ mol m-2 s-1 (400-700nm); Accuracy: ± 1 μ mol m-2 s-1; Resolution: 1 μ mol m-2 s-1

12. Power supply for this instrument: AC mains power: 180V~240V, 50Hz; DC: 18V, 5W (included in this instrument)

13. Sensitivity: Red light ≥ 4.5 × 10-5, blue light ≥ 3.17 × 10-3, orange light ≥ 2.13 × 10-3, green light ≥ 4.50 × 10-3

14. Wavelength range: Red light: 680 ± 2nm; Blue light: 420 ± 2nm; Orange light: 590 ± 2nm; Green light: 505 ± 2nm

15. Combined extraction of nitrogen, phosphorus, and potassium: simultaneous extraction of nitrogen, phosphorus, and potassium from soil can be completed in 3 minutes

16. Test speed: Test one soil sample (N, P, K) for ≤ 30 minutes, and simultaneously test five soil samples for ≤ 50 minutes (including pre-treatment time)

17. Instrument size: 440mm × 330mm × 160mm

AD-V16 Soil nutrient meter configuration

Instrument box: host, balance, electrode, colorimetric dish, power cord.

Medicine box: triangular bottle, volumetric flask, funnel, measuring cylinder, filter paper, aluminum box, washing bottle, 1 set of medicine, etc.

Q : Is the reagent kit coming with the machine ?

A : A set of Soil NPK reagent kit standard in the package.  Other reagent kits need to buy additional,for example Fertilizer NPK reagent,Plant NPK reagent kit.

Q : Is this machine can be connect to my computer ?

A : Yes,there is USB interface to connect to PC.

Q : Is the operation system English ?

A : Yes,all of the version of the machine are English for oversea customers.

Q : How long time a set of reagent kit can be used for ?

A : A set of reagent kit can be do max 300tests. If used out,pls reorder from us.

Q : Can I buy the reagent kit at local ?

A : The reagent kit is preapred by ourselves' formula,user need to buy from us.
