Aoda Handheld digital soil NPK PH Temperature Moisture Salinity meter

Aoda Handheld digital soil NPK PH Temperature Moisture Salinity meter

Soil NPK PH Temperature moisture salinity meter is 7 in 1 machine,easy operation,insert the probe into soil and read test results on screen directly....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda Handheld digital soil NPK PH Temperature Moisture Salinity meter


Features 蓝.jpg

  • Compact size,smart design;

  • Easy operation,insert into soil and get reading directly.

  • LCD screen with backlight design,suitable for work in the field.

  • 1 million groups data can be stored.



Soil NPK sensor parameter

Measuring range

1-1999mg/kg(mg/L)

Accuracy

±2%FS

Resolution

1mg/kg(mg/L)

Work temperature

-40~+80℃

Max power consumption

0.7W

Protection rate

IP68

Single output

RS485(Modbus protocol)

Soil pH sensor parameter

pH measuring range

3-9pH

Accuracy

±0.3PH

Long time stability

≤5%/year

Single output

RS485

Response time

≤10s

Work temperature

-20~+60℃

Soil temperature,moisture,salinity sensor parameter

Soil temperature measuring range

-40~+80℃

Accuracy

±0.5℃

Resolution

0.1℃

Soil moisture measuring range

0-100%

Accuracy

2% during 0-50% range;

3% during 50-100% range.

Resolution

0.1%

Soil salinity measuring range

0-20000us/cm

Accuracy

±3% during 0-10000us/cm range;

±5% during 10000-20000us/cm range.

Resolution

10us/cm

Work temperature

-40~+80℃

Single output

RS485

Host pamaeter

Power supply

Battery (5000mAh lithium battery)

Display

2.8 inch LCD screen with backlight

Data storage

100W groups

Recharge time

≤8h

Work environment

Temperature : -10~50℃

Humidity <95%RH

Communication protocol

Modbus-RTU protocol

Size

209x100x36mm

Weight

500g

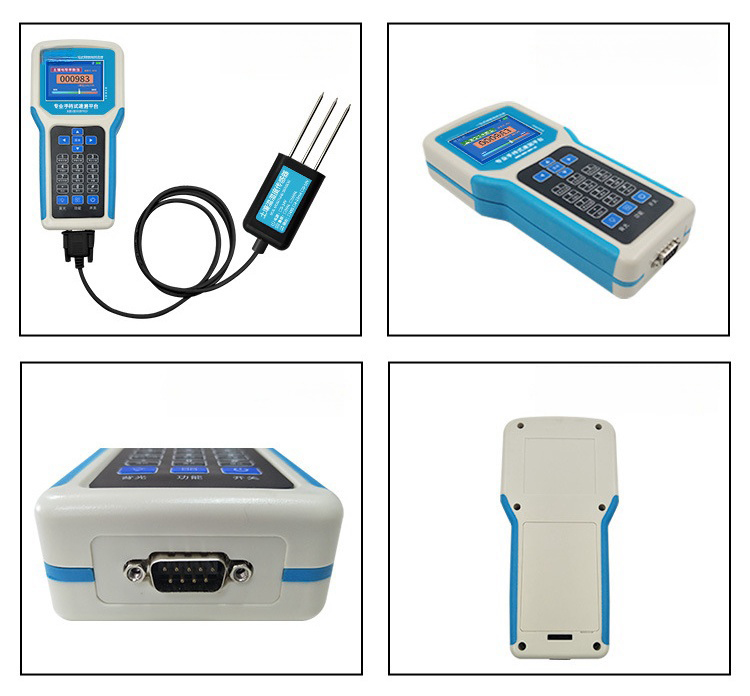

Product photo 蓝.jpg
