Aoda TJSD-750 Portable digital Soil compaction tester

Aoda TJSD-750 Portable digital Soil compaction tester

The soil compaction tester can directly measure the soil compaction and store the data of each sampling during measurement on the host at any time. The instrument supports automatic uploading of measurement data, and the data in the platform can be downlo...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

TJSD-750 Portable digital Soil compaction tester


TJSD-750 soil compaction tester, also called soil compaction analyzer, can directly measure soil compaction and store the data of each sampling at any time on the host. The instrument supports automatic uploading of measurement data, and the data in the platform can be downloaded, analyzed and printed. The built-in GPS positioning system can display the location information of the measurement point (latitude and longitude) in real time, and this positioning data can be used to draw a soil compaction distribution map on the computer.


Features 蓝.jpg


1. English LCD display, can display the current date and time, each sensor measurement data, storage capacity, number of stored data, and other information.


2. Large host data storage capacity: the internal Flash of the device can store nearly 30,000 data, and the standard 4G memory card can store unlimited data, and can also store data in Flash at the same time.


3. Built-in lithium battery power supply: 7.4V2.8Ah lithium battery, with charging protection and low voltage prompt function. The external power supply is 8.4V (1000mA or more) DC power supply.


4. Collection settings: when used unattended, you can set timed collection or manual collection.


5. The host of the soil compaction tester can connect different types of sensors through the hub without affecting each other's accuracy.


6. With built-in GPS positioning function, the geographical coordinates of the collection point can be automatically displayed during data collection.


7. The types and quantities of sensors can be expanded to 32 (the extension line is IP67, integrated structure).



TJSD-750 Portable digital Soil compaction tester
Measuring range
0~7922KPa; 0~89kg/cm²,0~890N/cm²(switch free)
Measuring depth
0~375mm(The length of the pole is 400mm)
Accuracy±5%
Record time interval5mins~99hours
Power supply
7.4V Rechargeable lithium battery

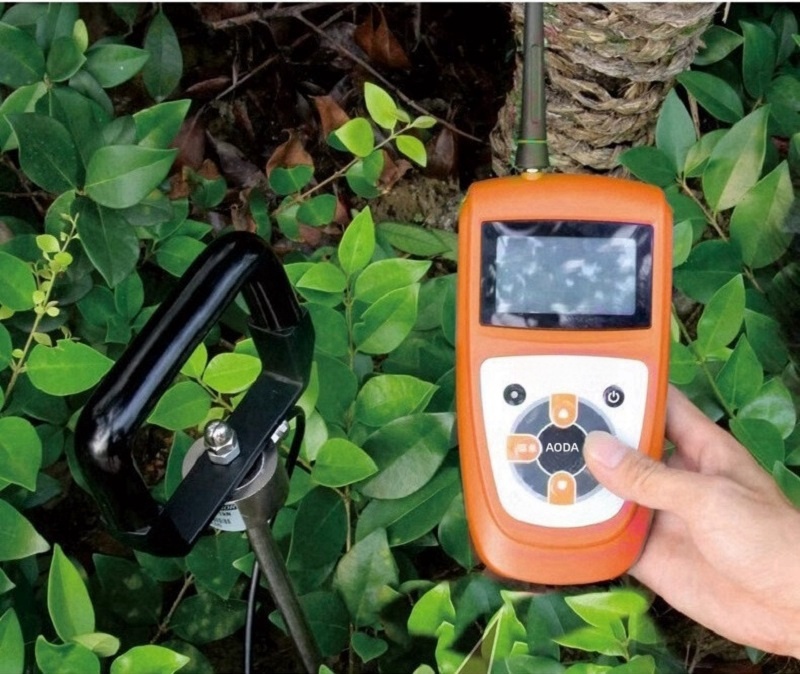

Product photo 蓝.jpg

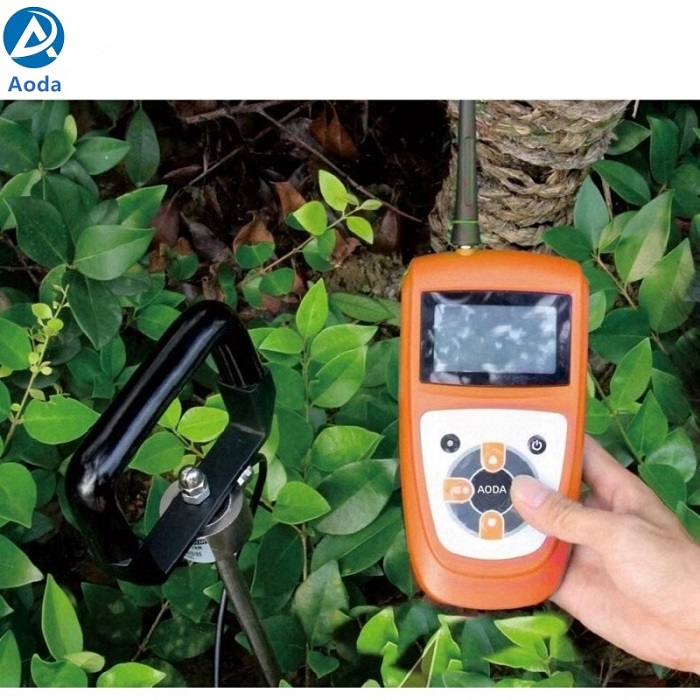

soil compaction tester.jpg

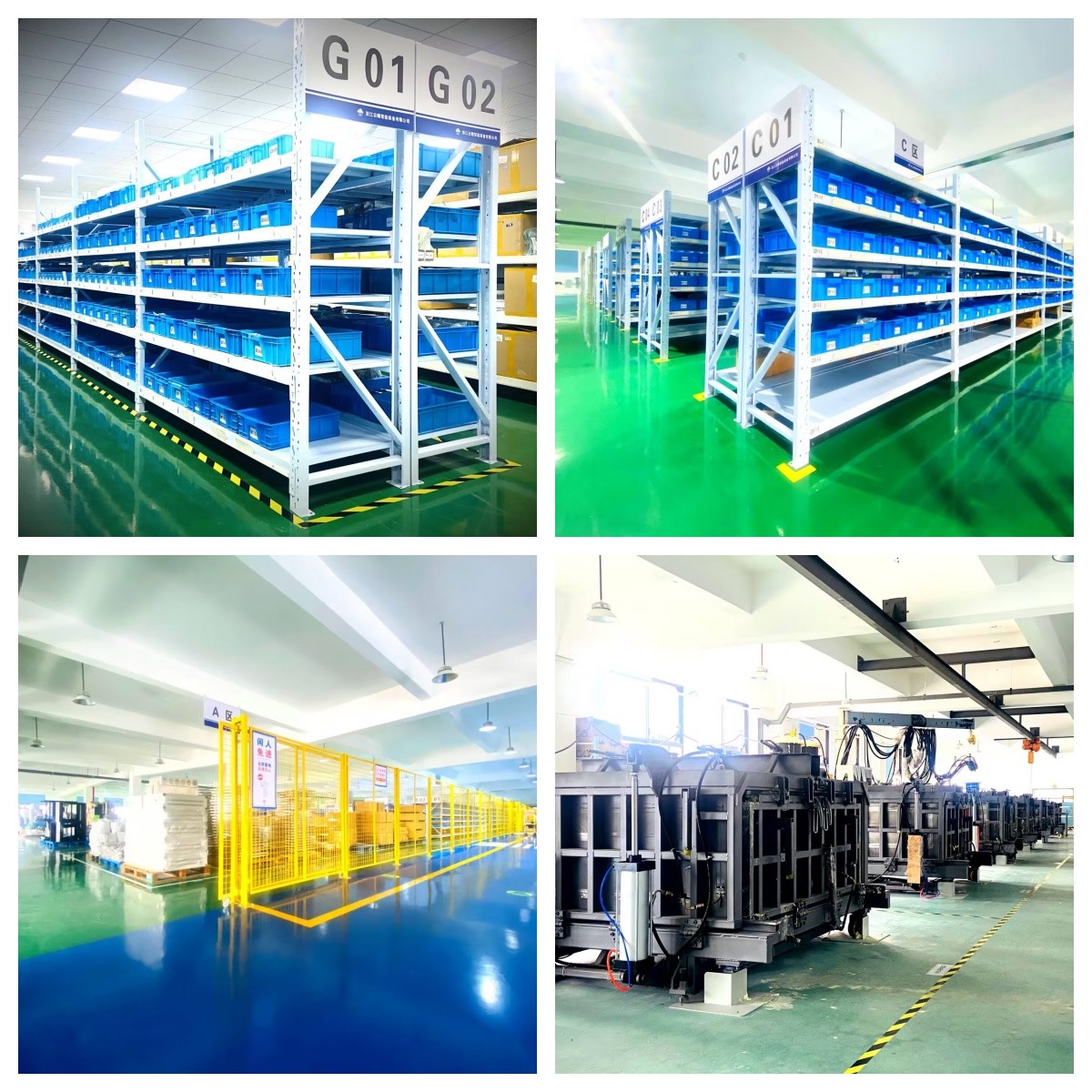

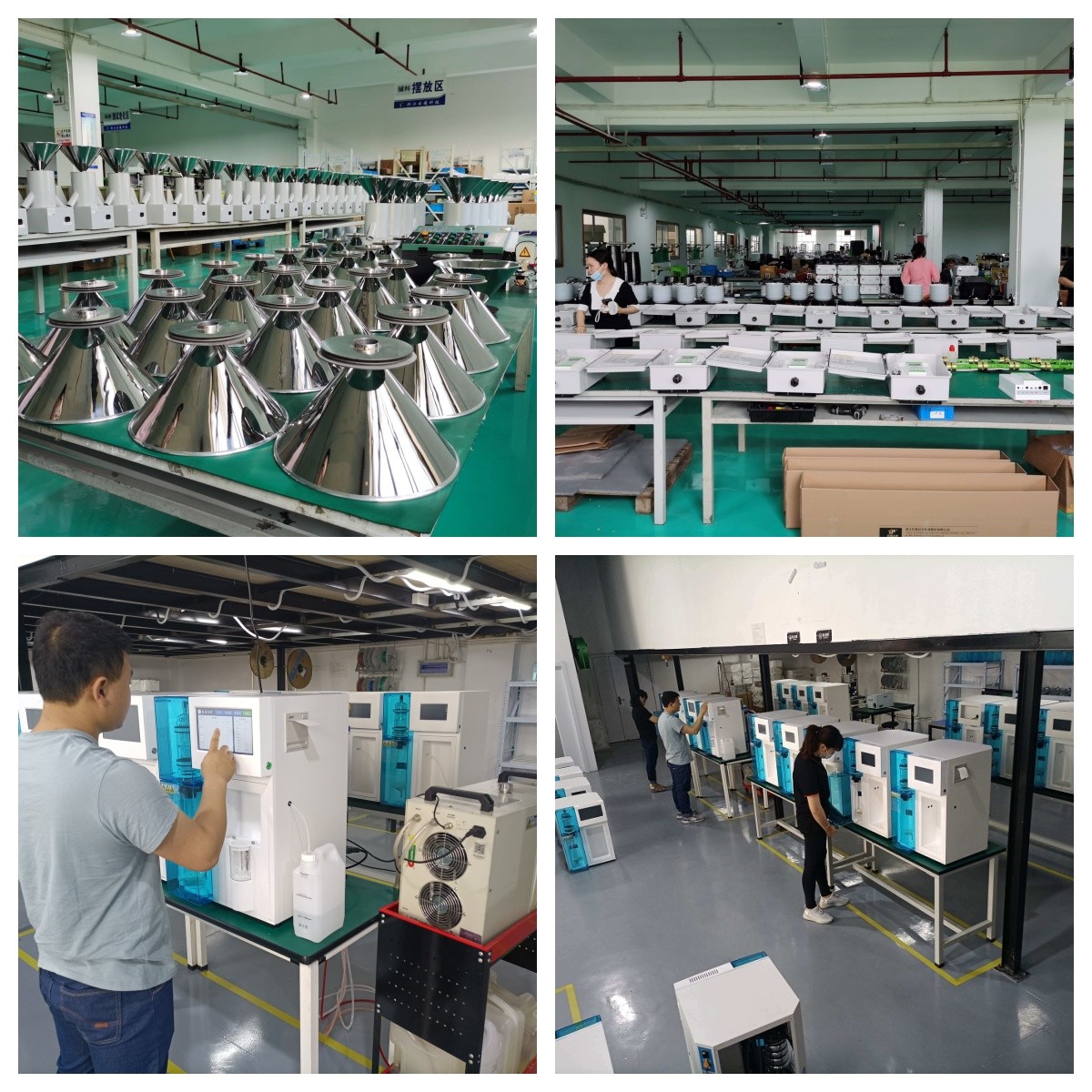

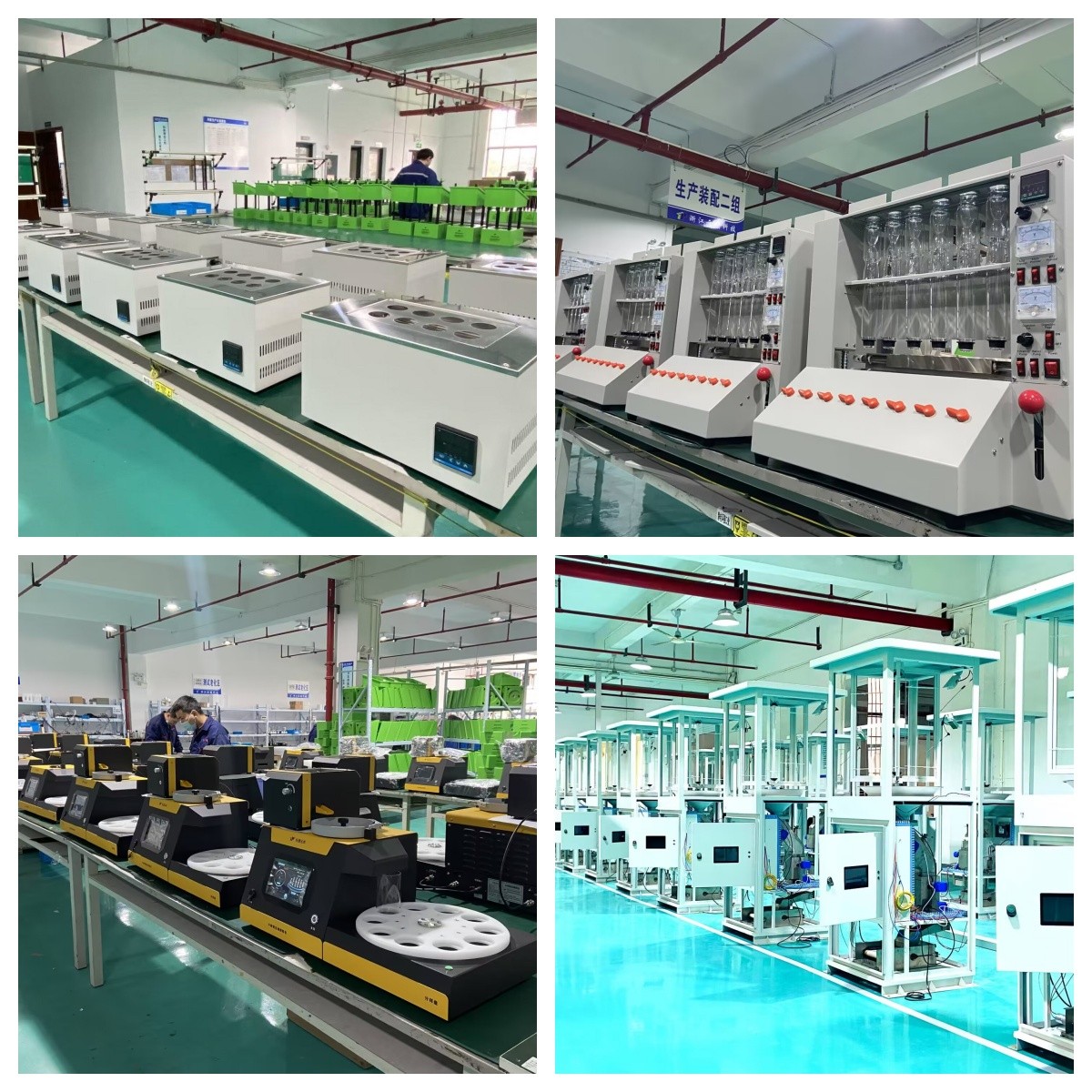

factory & workshop.jpg
