Aoda TYD-2 Portable digital soil hardness meter

Aoda TYD-2 Portable digital soil hardness meter

Compacted soil can prevent water infiltration, reduce fertilizer utilization, affect plant root growth, and lead to reduced crop yields. Therefore, it is particularly important to know the compactness of the soil. The soil hardness tester can better guide...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

TYD-2 Portable digital soil hardness meter


Soil hardness meter uses hand pressure to press a plunger into the soil, and a steel ring (or grip dynamometer) reflects the firmness of the soil. This type of firmness meter is very light and can be used for field soil surveys.

Compacted soil can prevent water infiltration, reduce fertilizer utilization, affect plant root growth, and lead to crop yield reduction. Therefore, it is particularly important to know the compactness of the soil. The soil hardness meter can better guide agricultural production and road construction.


Features 蓝.jpg

1.High accuracy and high resolution: large screen LCD display, with backlight function (backlight for night use), inverted reverse function of numbers on the screen

2.Battery capacity display, If battery capacity is too low, the instrument will shut down automatically

3. Gravity acceleration setting function: users can input the exact value of gravity acceleration of testing site to make the test more precise

4. Peak value maintaining function: maintain the peak value display until zero adjustment manually

5. Automatic peak function: maintain displaying the peak values for 2S before automatic elimination

6. Large memory storage function: can store 896 measuring values.

7. Data output function, data can be imported to the computer for various analyses

8. Auto-off time setting: 10min-90 min automatic shutdown can be set.

9. High quality charging power: 100-240v of charging voltage can be available



TYD-2 Portable digital Soil Hardness meter
Maximum load1.100kg(kg and N can be switched automatically)
Accuracy±0.5%
Resolution0.01kg
Measuring depth0~450mm
Ambient temperature0℃~60℃
Allowable overload150%

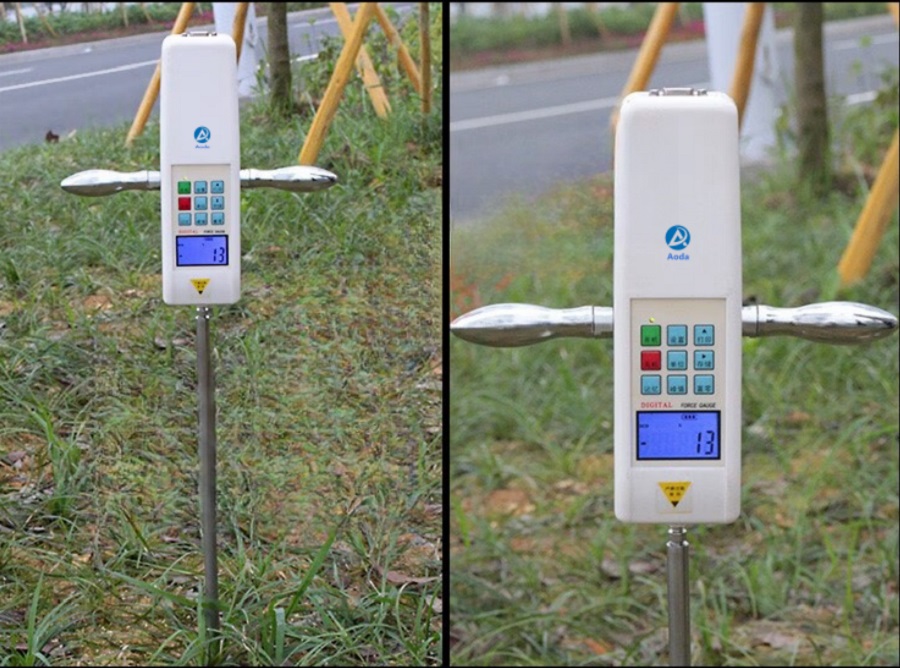

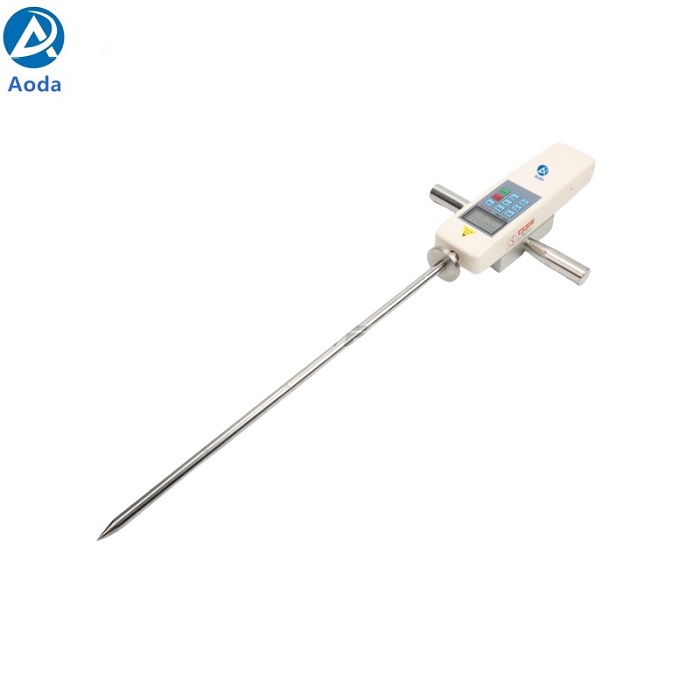

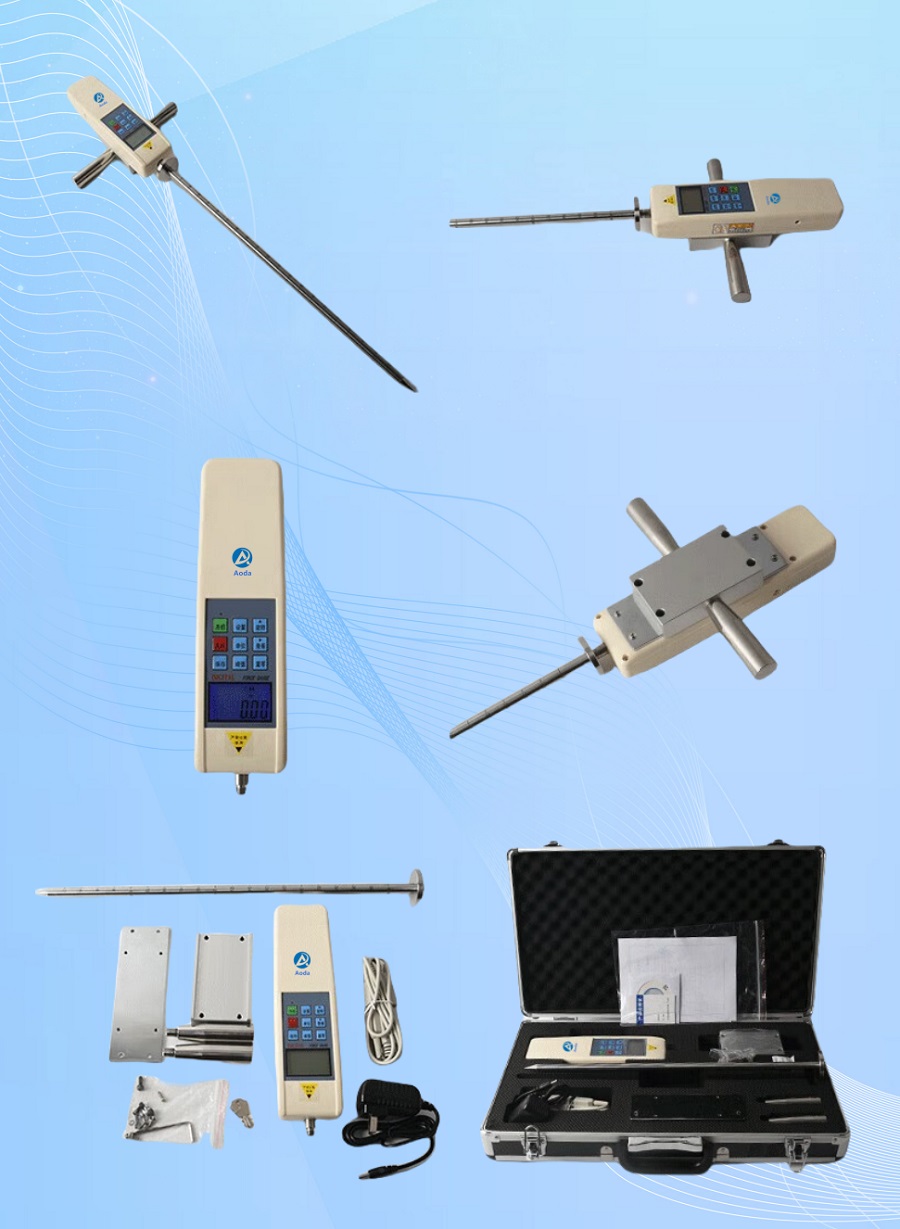

Product photo 蓝.jpg

soil hardness test machine独立站.jpg

soil hardness meter独立站.jpg

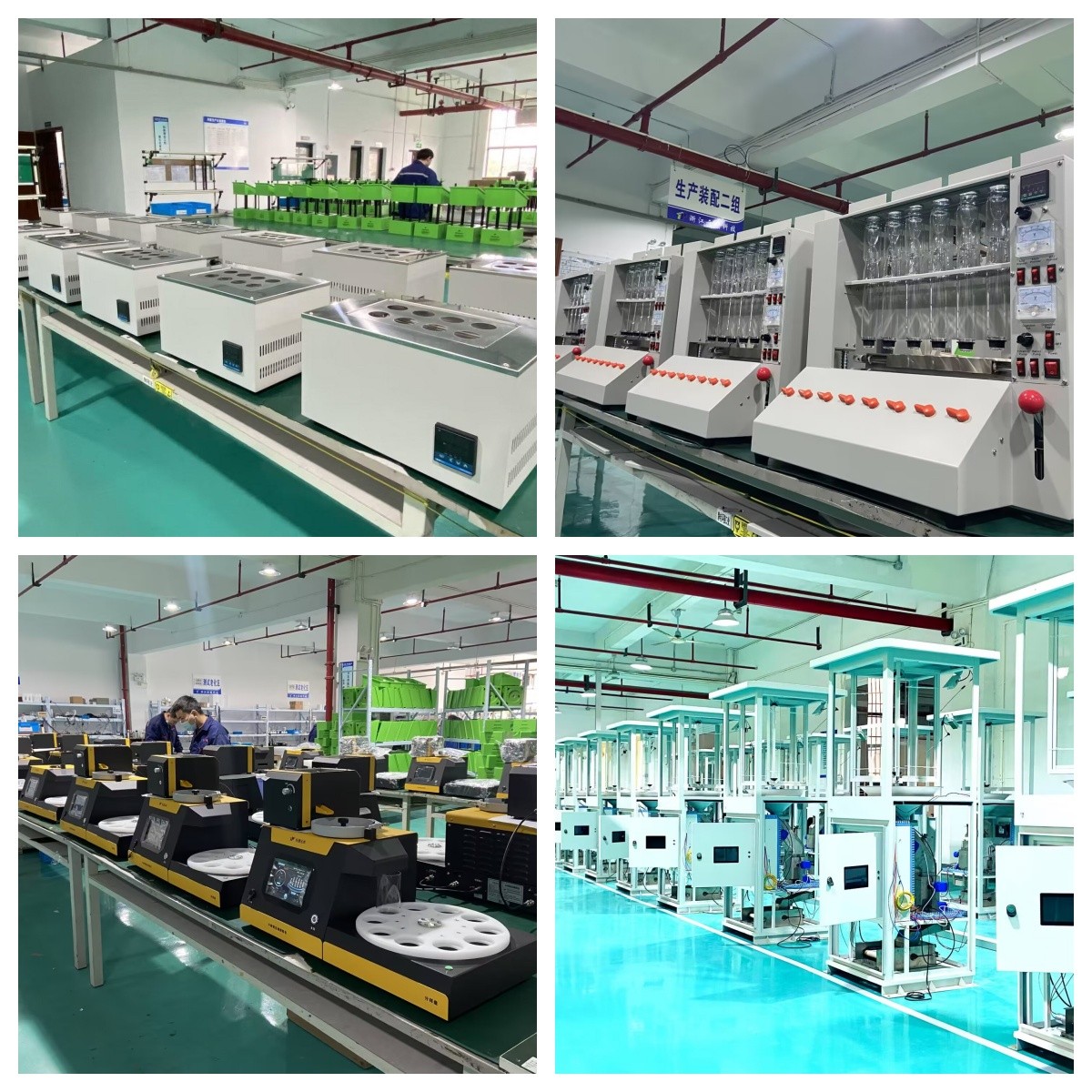

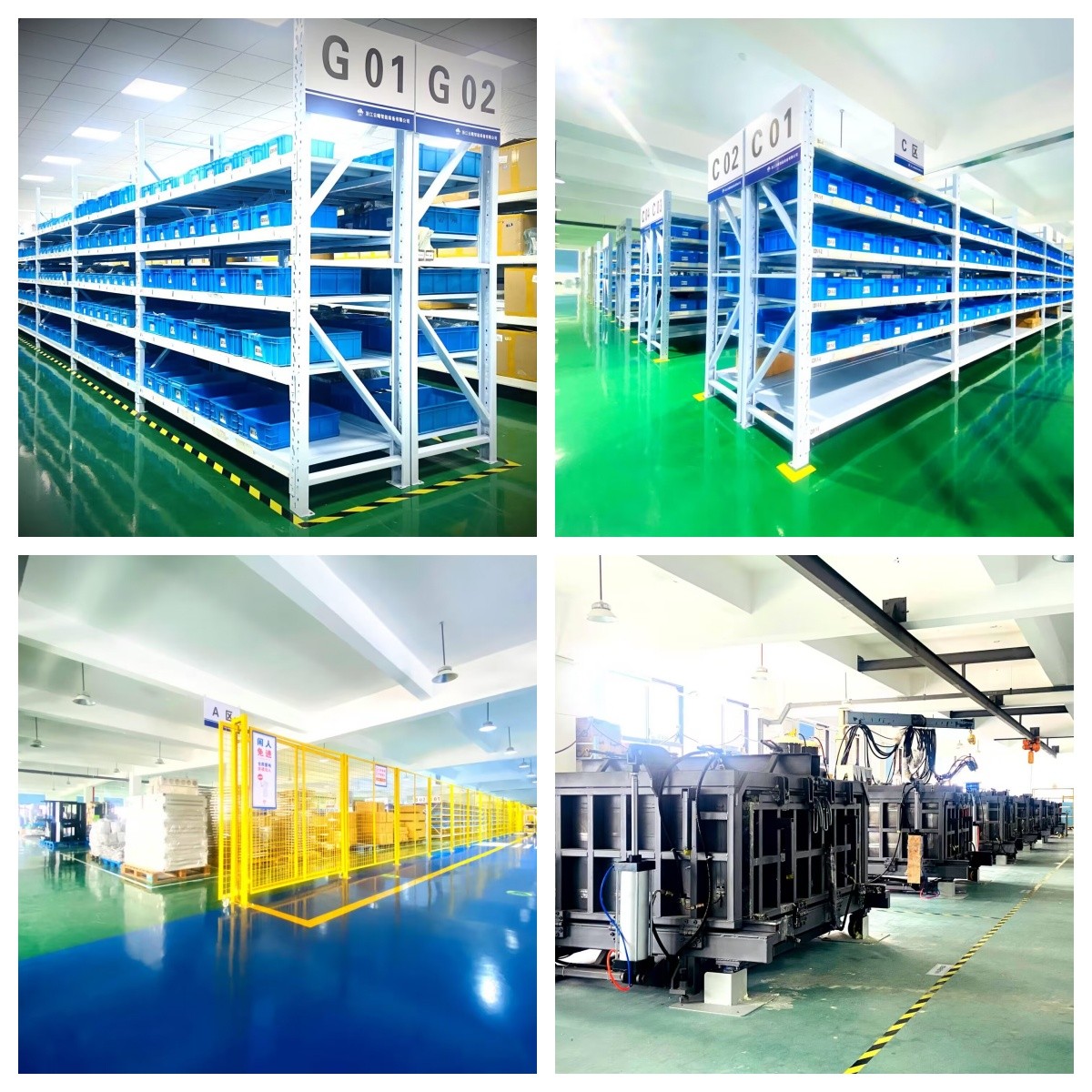

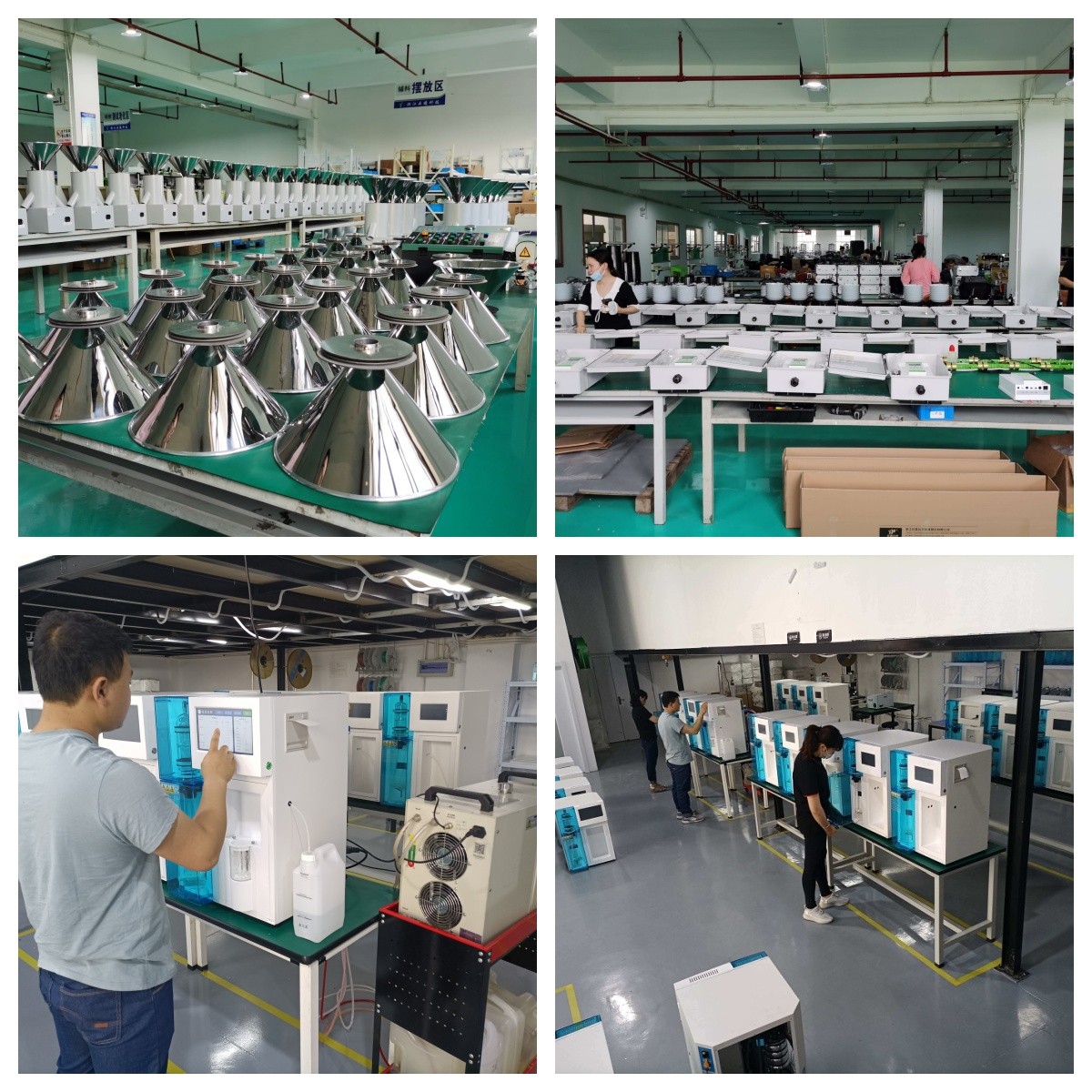

factory & workshop.jpg
