Aoda NIR1200 Portable NIR spectrometers
Portable NIR spectrometers are designed for on-site real-time detection applications, with a wavelength range of 1000nm-1800nm.

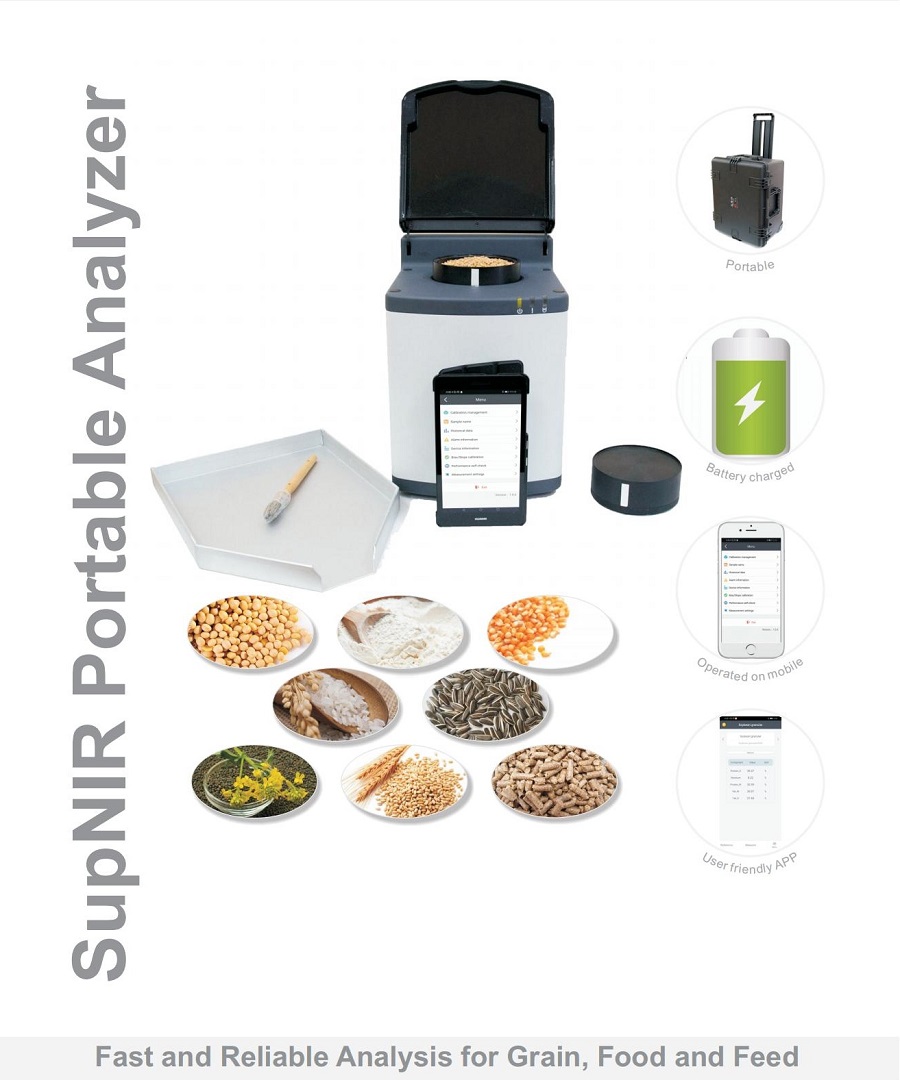

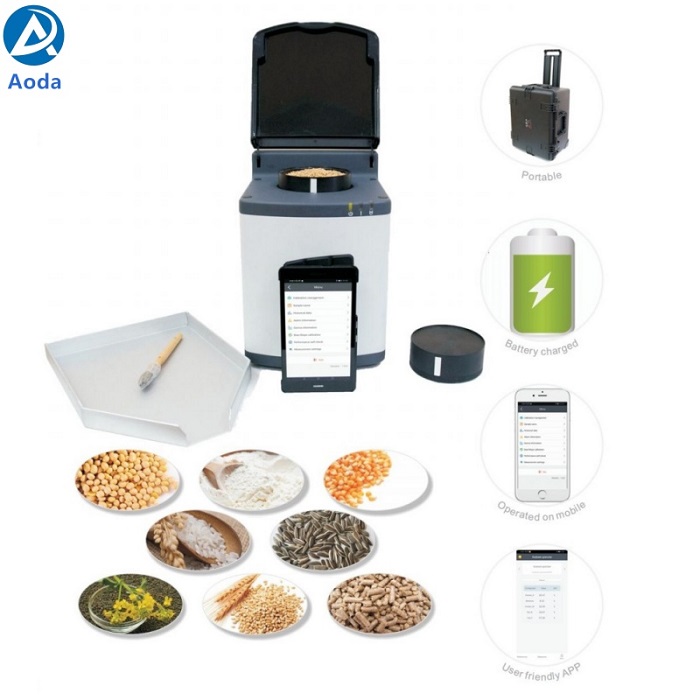

The NIR1200 series of portable near-infrared analyzers are based on diffuse reflection detection and adopt a downward illumination structure design. The overall structure of the instrument is compact, small in size, and has a built-in large-capacity rechargeable battery for long battery life. The instrument connects to Android devices via Bluetooth and is controlled by an APP. Through the call of the network cloud database, it can realize rapid non-destructive detection of some physical and chemical components in solid particles, powders, flakes and other samples.
Models | NIR1200 |
Wavelength range | 1000~1800nm |
Light source | Tungsten halogen lamp with expected lifespan more than 10,000 hours, User changeable via specific disassemble tool |
Measurement mode | Diffuse reflectance |
Detector | High Performance ultra- cooled InGaAs (Indium Gallium Arsenide) detecor to -20℃, dual stage temperature stabilized |
Optical brandwith | 10.95 ±0.3 nm @ 1395.5 nm |
Signal no noise ratio | >10000 : 1 |
Sample volume | 200ml |
Analysis time | 6-10 sec. (30 scans / sample =6s, scan speed= 5 times/ sec.) |
Wavelength repeatability | <0.05 |
Wavelength accuracy | ≤±0.2nm |
Stray light | <0.1% |
Communication | Bluetooth |
Ambinet temperature | 0~40℃ |
Ambient humidity | 5~85 %RH |
Power supply | (220±20)V,50Hz |
Dimensions | 22x31x31cm |
Weight | 10kg |
