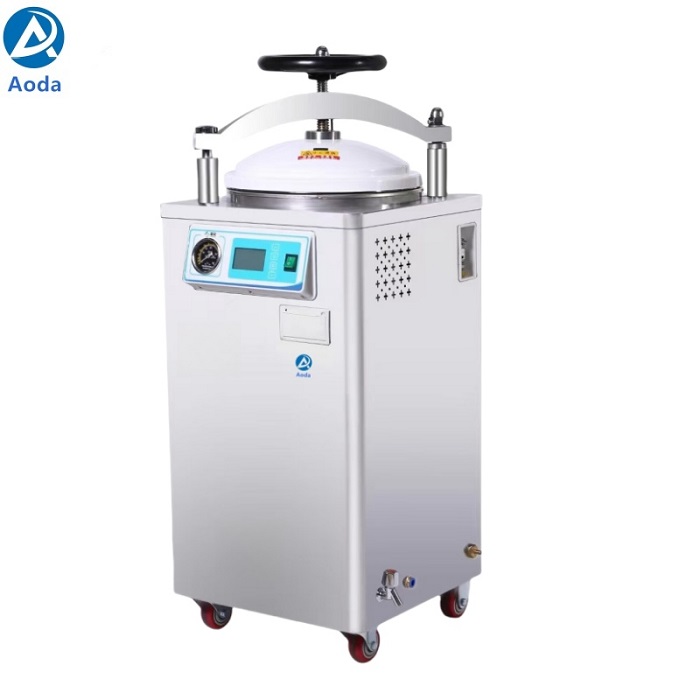

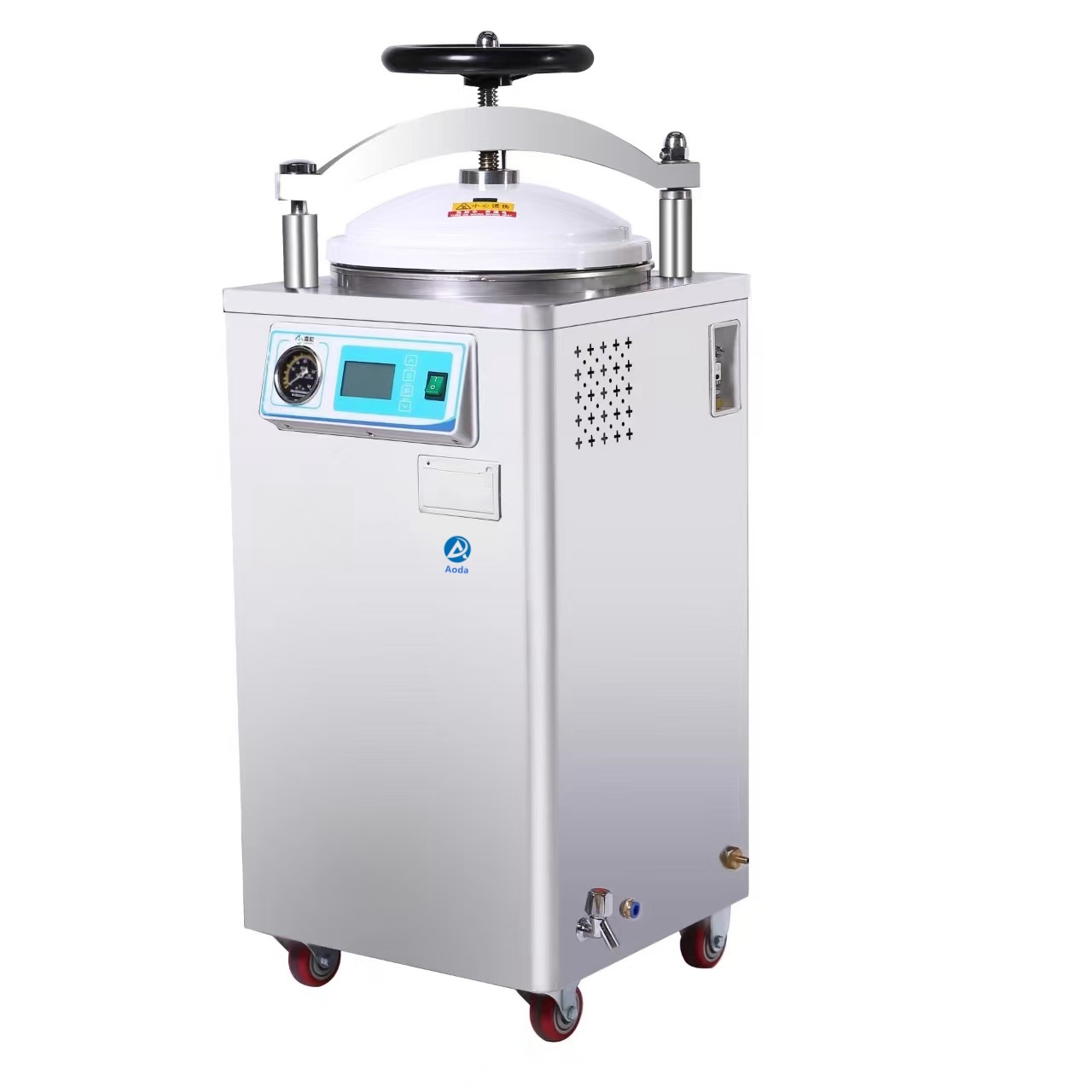

35L 50L 75L 100L Vertical pressure autoclave
Vertical pressure autoclave are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effect...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
35L 50L 75L 100L Vertical pressure autoclave
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effect,convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
• Fully stainless steel structure.
• Auto discharge the cool ai and steam discharge automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Hand wheel type of quickopen door structure.
• Over temperature & over pressure autoprotection.
• Easy to operate, safe and reliable.
• Door safety lock system.
• With 2 stainless steel sterilizing baskets.
• LCD display of working status, touch type key.
• Safe protection of water lacking.
• With drying system.
• Self inflating type seal
Digital Vertical Pressure Autoclave | ||||
MODEL | AHL-35HD | AHL-50HD | AHL-75HD | AHL-100HD |
Technical Data | ||||
Chamber volume | 35L φ315x550mm | 50L φ340×550mm | 75L φ400×600mm | 100L φ440×650mm |
Working pressure | 0.22Mpa | |||
Working temperature | 134℃ | |||
Max. working pressure | 0.23Mpa | |||
Heat average | ≤±1℃ | |||
Timer range | 0-99min or 0-99hour59min | |||
Temperature adjust range | 105-134℃ | |||
Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | |
Transport dimension | 550×540×1085mm | 590×580×1180mm | 660×620×1310mm | 680×640×1370mm |
G.W/ N.W | 73Kg | 87Kg | 133Kg | 140Kg |
