Aoda CIC-D160 Thermo Ionic chromatography

Aoda CIC-D160 Thermo Ionic chromatography

CIC-D160 is a high-stability ion chromatograph with upgrade circuit technology ,which can detect anion, cation, cyanide, iodide, sugar and small molecular organic acids . It is widely used in the fields of environment, disease control, food, chemical industry, electronics, mining and metallurgy.

CIC-D160 Ionic chromatography Technology Advantage:

• Built-in eluent generator, free from configuring eluent, with gradient elution availableHigh pressure resistance, small dead volume, highly responsive to signals;

• Built-in low-pressure degassing technology to eliminate bubble interference for stability;

• Self-regenerating electrolytic micro-membrane suppressor（CN 102735792A）High pressure resistance, small dead volume, highly responsive to signals;

• Modular design, convenient to assemble and disassemble , easy to operate;

• Optional intelligent automatic injection system for large sample volumes, which features automatic dilution to save labor and time;

• Work across a variety of detectors to expand the scope of applications of ion chromatography.

CIC-D160 Thermo Ionic chromatography Specification

Pump

Maximum Pressure:35 MPa(PEEK)

Pressure Display Accuracy:≤0.1MPa

Flow Rate Range:0.001~9.999mL/min

Conductivity Detector

Cell Volume:  ≤0.8μL

Detection Range: 0~50000μS/cm

Detection Resolution: ≤0.0020nS/cm

Electronic Noise:0.02nS

Temperature Range:Room temperature+5~60℃(41 ~140℉)

Maximum Pressure:10.0MPa

Built-in Eluent Generator

Eluent Types : KOH/MSA

Eluent Concentration Range :0.1-120mM

Concentration Increment :0.1mM

Flow Rate Range:0.1-5.0mL/min

Pressure:5MPa-20MPa

Power Requirements:150W

Dimensions(L*W*H*):350*470*650 (mm)

Net Weight(KGS):34

Gross Weight(KGS):40

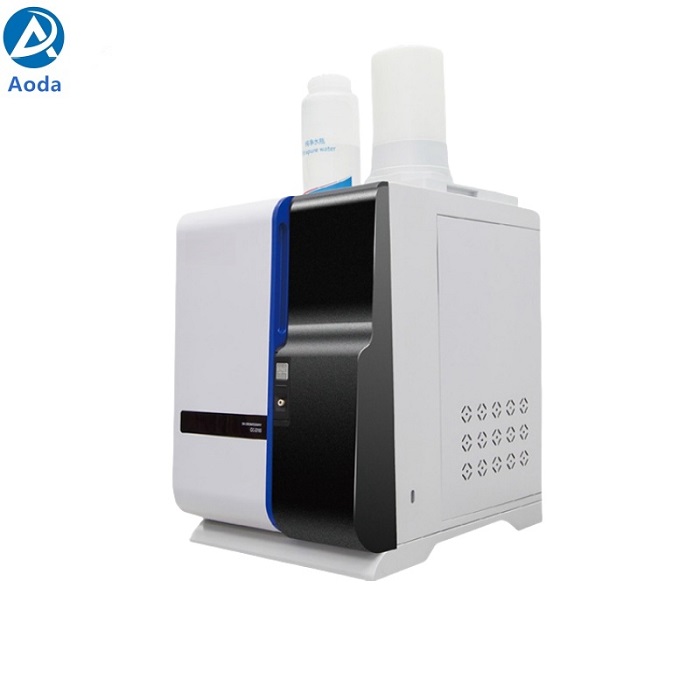

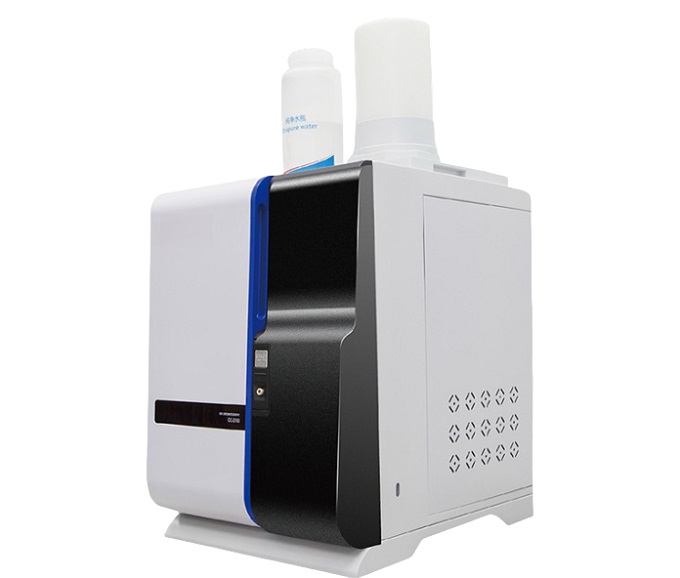

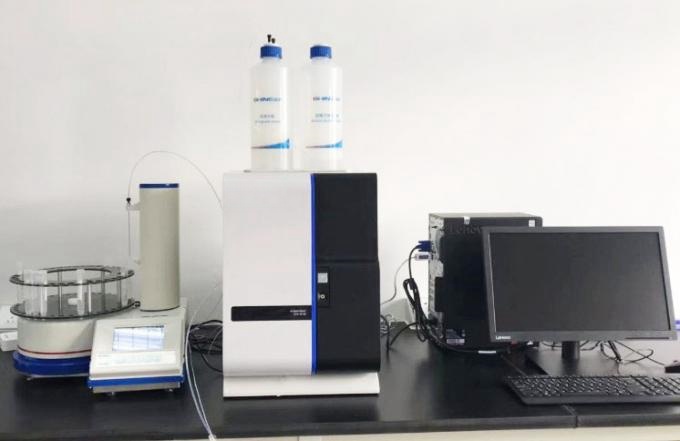

CIC-D160 Thermo Ionic chromatography photo
