Aoda High-precision Desktop Spectrophotometer ChromaAgera EZ100/200/300

Aoda High-precision Desktop Spectrophotometer ChromaAgera EZ100/200/300

Spectrophotometer ChromaAgera EZ100/200/300 is applicable to color detection of printed matter, leather (textured samples), traffic road signs, etc...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda High-precision Desktop Spectrophotometer ChromaAgera EZ100

  • It adopts a 45/0 optical structure, and the measurement data is highly consistent with visual observation.

  • It is applicable to color detection of printed matter, leather (textured samples), traffic road signs, etc.

  • It comes with an accessory storage drawer, so the accessories are not easy to be lost.

  • The equipment can be connected to the network to upgrade to the latest version and obtain the latest chromaticity indicators.

  • It features a 7-inch touchscreen operation, clearly displaying the measurement data.

  • A powerful computer data management software is included.

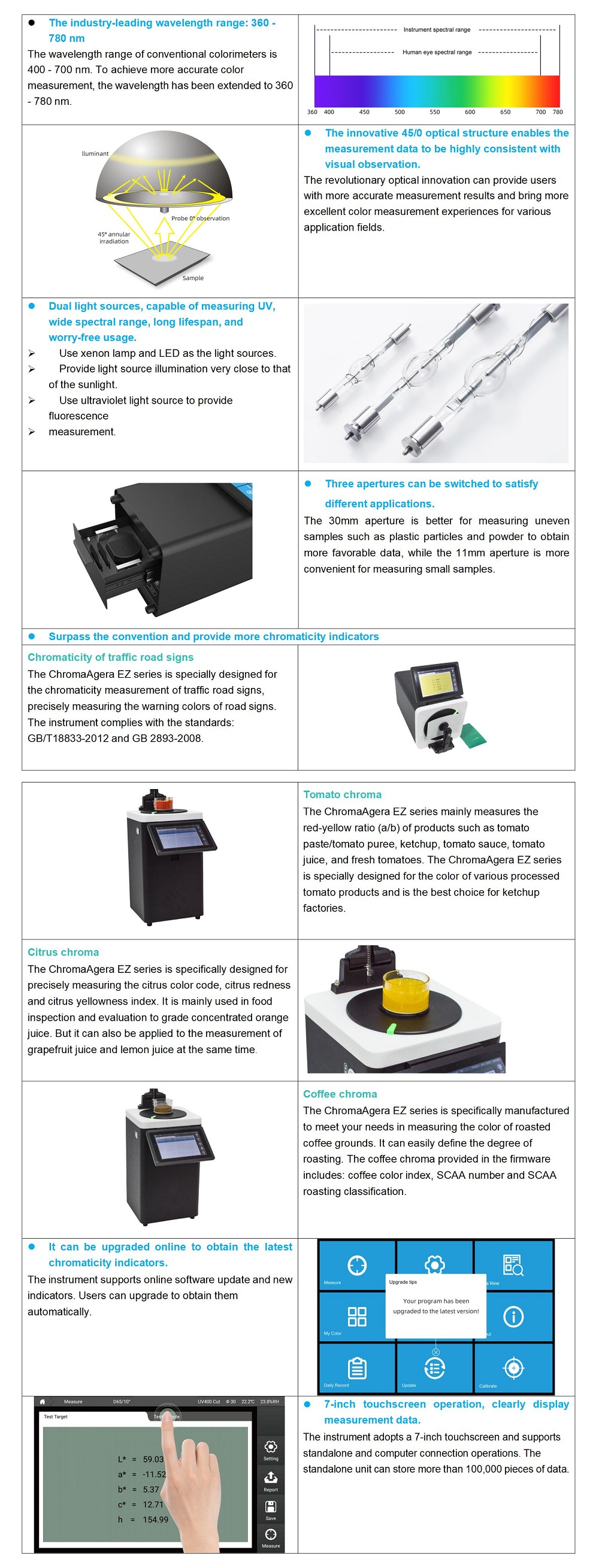

Feature of Desktop Spectrophotometer ChromaAgera EZ100



Technical pamameter of Spectrophotometer ChromaAgera

Model

ChromaAgera EZ100

ChromaAgera EZ200

ChromaAgera EZ300

Measurement Conditions

Reflection: 45/0 (45° annular illumination, 0° observation angle)
Compliant with standards: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 Condition C, ASTM E1164

Sensor

Silicon photodiode array

Spectroscopic mode

Concave grating

wavelength range

400nm-780nm

360nm-780nm

wavelength interval

10nm

Half-wave width

5nm

Reflectance measurement range

0 - 200%, resolution 0.01%

Illumination light source

LED

LED + Xenon lamp

Aperture

LAV Φ18mm

XLAVΦ30mm,LAV Φ18mm

XLAVΦ30mm,LAV Φ18mm,MAV Φ11mm

Repeatability ※

ΔE*ab≤ 0.03

ΔE*ab ≤0.02

Inter instrument Agreement ※※

ΔE*ab≤ 0.25

ΔE*ab ≤0.2

Observer Angle

2° and 10°

Language

ChineseEnglish, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish

Observation light source

A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Display content

Spectral data, spectral graph, chromaticity data, color difference data, color difference graph, pass/fail judgment, simulated color, color evaluation, color bias

Color space

L*a*b,L*C*h,Hunter Lab,Yxy,XYZ,RGB

Chromaticity index

WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube, Berger Stensby), YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism index Milm, Color staining fastness, Color change fastness, ISO brightness, R457, A density, T density, E density, M density, Hiding power, Pigment strength, Strength, Traffic sign luminance factor, βxy

Food chromaticity※※※

/

have

Color difference formula

ΔEab, ΔECH, ΔEuv, ΔEcmc, ΔE94, ΔE00, ΔEab(Hunter), 555 hue classification

Storage space

8GB

Screen size

7-inch capacitive touch screen

Operating system

Android

Power

24V/2.5A

Operating temperature and humidity

5 to 40°C, relative humidity 80% (below at 35°C) without condensation

Storage temperature and humidity

-20 to 45°C, relative humidity 80% (below at 35°C) without condensation

Accessory

Power adapter, data cable, USB flash drive (with management software inside), black cavity, white board, green board

Optional accessories

Reflective cuvette holder, fiber test box, film clamp, European standard plug, American standard plug

Interface

RS-232USB-AUSB-B

Size

Length, width and height: 400 * 215 * 224

Weight

10.8kg

Other

1The instrument can measure from the side and upwards.

2Automatic temperature and humidity compensation function

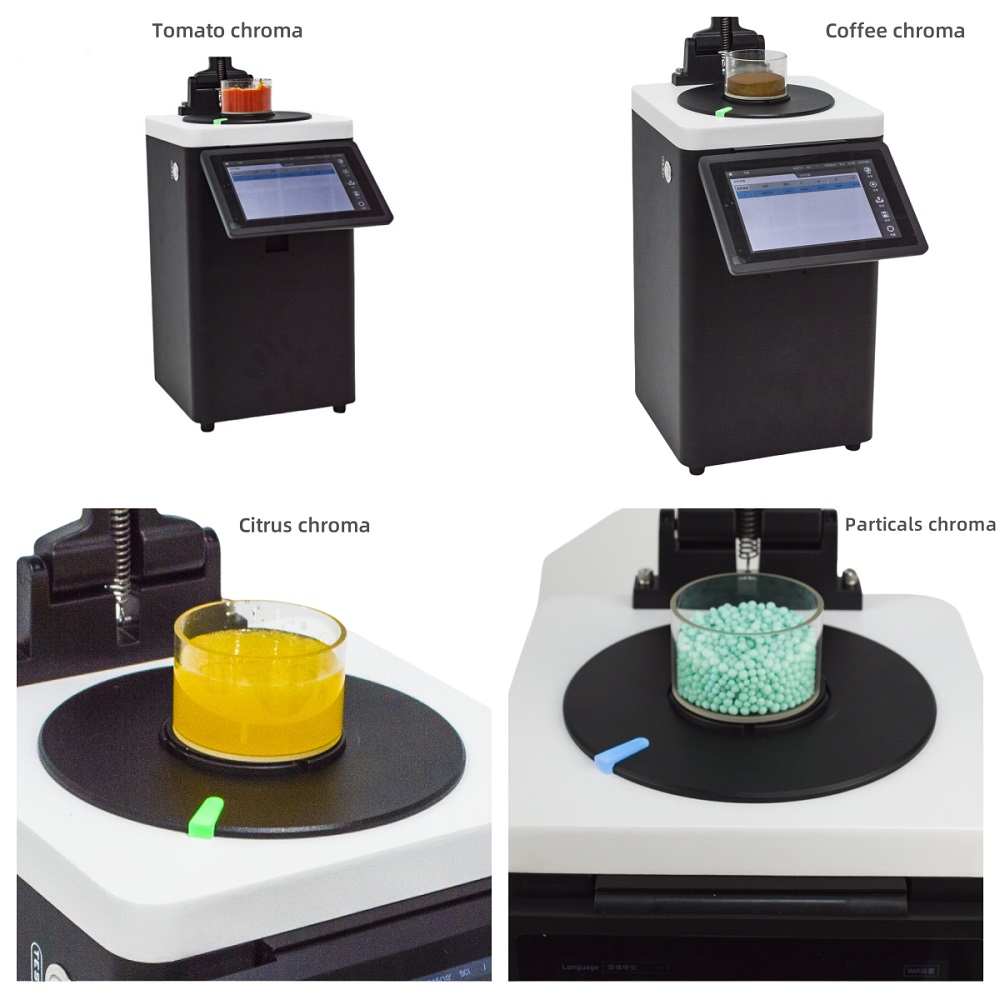

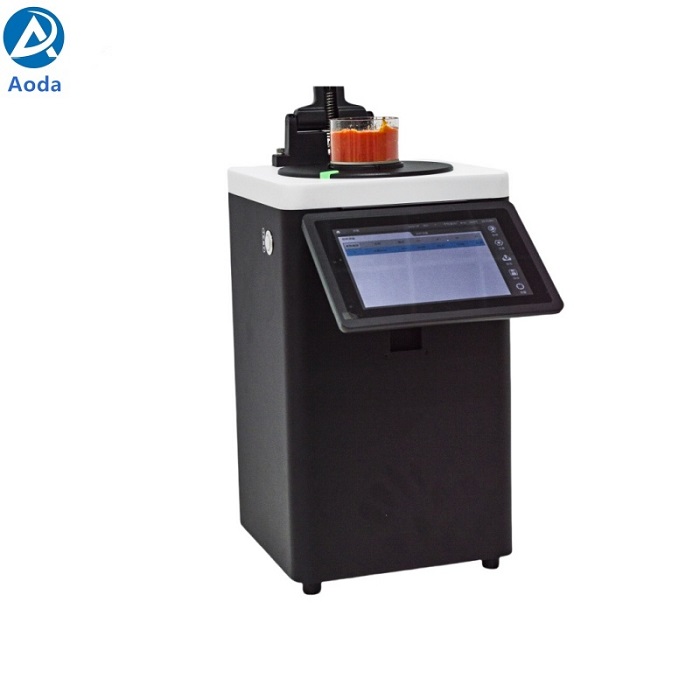

Product photo of Spectrophotometer ChromaAgera
