Aoda CS-600C/CS-600CG portable spectrophotometer

Aoda CS-600C/CS-600CG portable spectrophotometer

portable spectrophotometer features a 45°/0 optical structure for simultaneous color and 60° gloss measurement....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda CS-600C / CS-600CG portable spectrophotometer

The CS-600c/CS-600CG portable spectrophotometer features a 45°/0 optical structure for simultaneous color and 60° gloss measurement. 45°/0 geometric optical structure is close to the visually perceived color value and can exclude specular light from textured surfaces. The built-in gloss sensor allows accurate measurement of surface gloss. It is suitable for measuring the color and gloss of automotive interior parts, textiles, coil coatings, plastic products, road traffic signs, packaging and raw materials.

  • 45 / 0 structure is adopted

  • Compatible with 60 ° gloss measurement

  • Conform to national measurement standards

  • Standard measurement management software

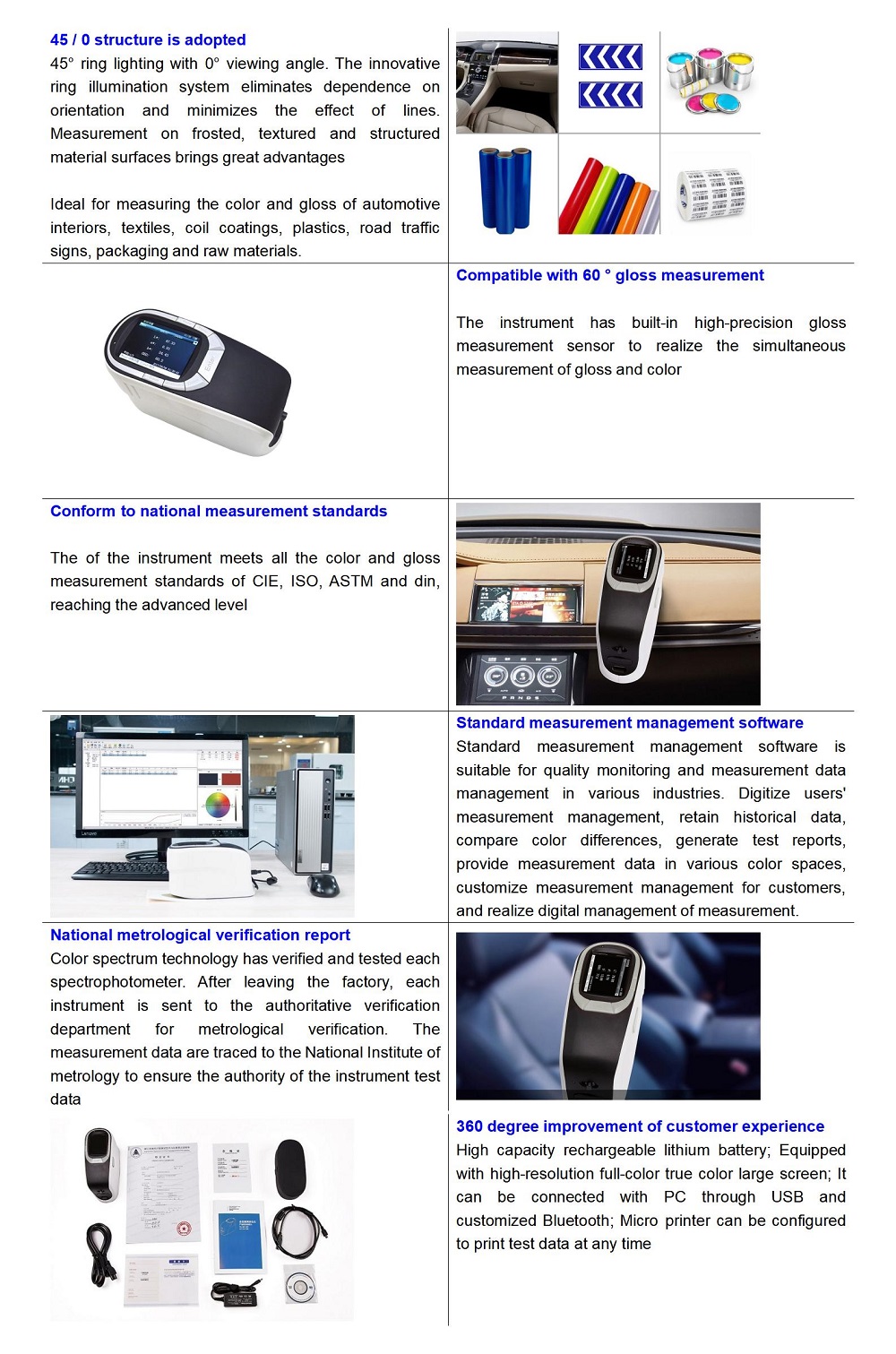

Portable Spectrophotometer Feature


Portable spectrophotometer Technical parameter

Model

CS-600C

CS-600CG

Function

Color

Color, Gloss

Geometry

45/0(45 ring-shaped illumination,0 observe degree)

Aperture

11mm

Wavelength range

400-700nm

Wavelength interval

10nm

Sensor

High sensitivity silicon photodiode

Illumination

LED

Repeatability



Reflectance: standard deviation within 0.08%

Chromaticity value: ΔE*ab 0.03 (when a white plate is measured 30 times at 5 second intervals after white calibration),Maximum 0.05



Inter-instrument agreement

ΔE*ab ≤0.2

Language

Chinese, English

Standard observer

2°/ 10°

Light source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84,U35

Color space

CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,reflectivity,Hunter-lab,Munsell MI,CMYK

Index

WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73),

Tint(ASTM E313,CIE,Ganz),Homochromatic heterospectral index milm, color fastness, color fastness, ISO brightness,

a density, t density, m density, e density

Color difference formula

ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 hue classification

Test angle

/

60°

Test area

/

5x10 mm

Test range

/

0-1000 GU

Repeatability

/

0.2 GU(0-100GU) 0.2%(100-1000GU)

Reproducibility

/

1.0 GU(0-100GU) 1.0%(100-1000GU)

Illumination Life Time

3 million times in 10 years

Language

Chinese, English

Display

2.8-inch full-color true color screen

Store

20000 articles

Interface

USB

Battery

rechargeable, 10000 continuous tests, 7.4V/6000mAh

Work environment

0-45 ℃, relative humidity 80% or below (at 35 ° C), no condensation

Size

50*300*200mm(L*W*H)

Weight

About 800g (without battery)

Standard accessories

Power adapter, lithium battery, manual, color management software, driver software, manual, electronic version, color management tutorial,

data line, black and white correction cylinder, portable bag

Standard accessories

/

Gloss calibration box

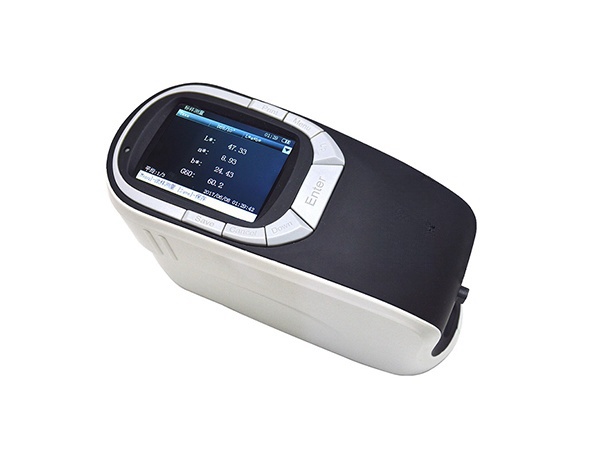

Portable spectrophotometer photo
