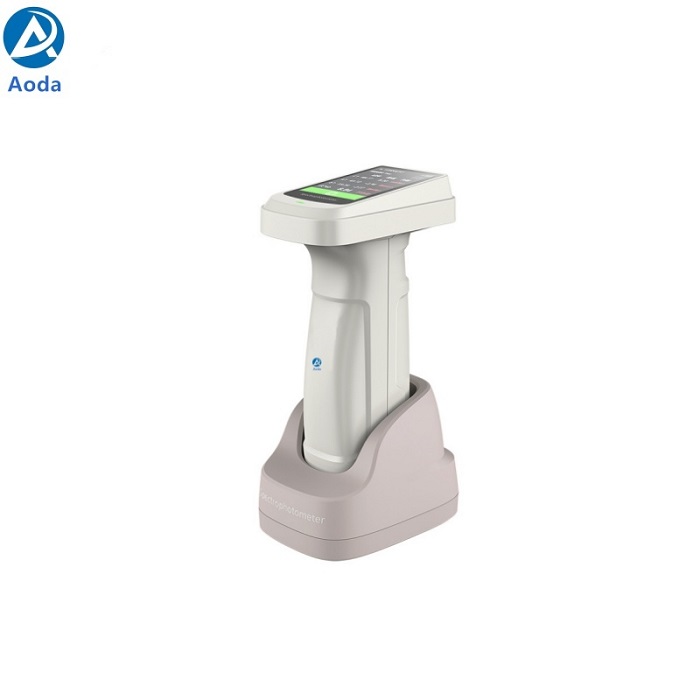

Aoda DS-700D color measurement Spectrophotometer

Aoda DS-700D color measurement Spectrophotometer

DS-700D spectrophotometer adopts 400-700nm full wavelength LED light source and is equipped with 3 kinds of measurement apertures, which can meet the measurement of various samples....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda DS-700D color measurement Spectrophotometer

DS-700D spectrophotometer has good interstage difference and repeatability, and the measurement data is accurate and reliable. It adopts 400-700nm full wavelength LED light source and is equipped with 3 kinds of measurement apertures, which can meet the measurement of various samples. It not only supports connecting to computer to process data, but also supports Android, ios and WeChat applet, and data can be stored anywhere and anytime.



DS-700D spectrophotometer Feature

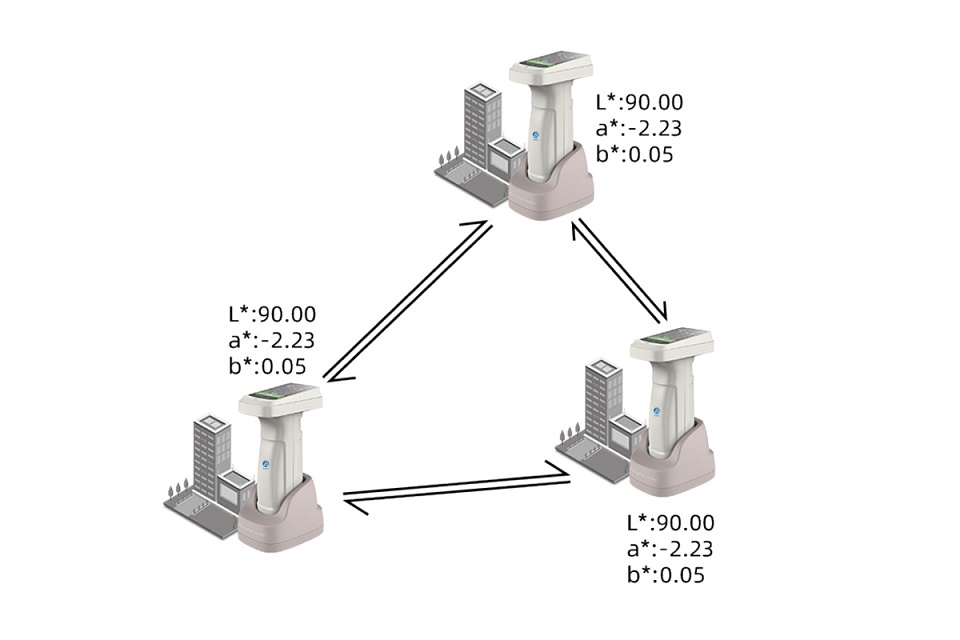

Excellent repeatability and inter-stage difference

Repeatability ΔE*ab≤0.025, difference between units≤0.25, accurate and reliable data, ensuring

the consistency of measurement data from multiple devices for color matching and accurate

color transfer


Dual-column high-precision CMOS array design monitors the energy fluctuation of the light

source while measuring the sample signal to reduce interference during measurement and

obtain higher measurement stability. Large-area dual-array sensor provides higher spectral

response sensitivity, ensuring high standards of instrument measurement speed, accuracy,

stability and consistency of inter-stage differences

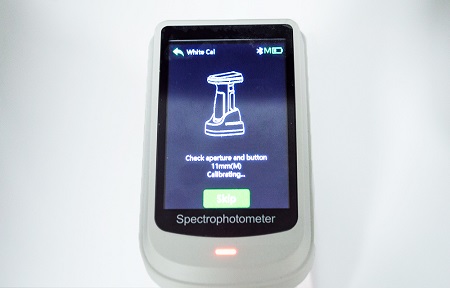

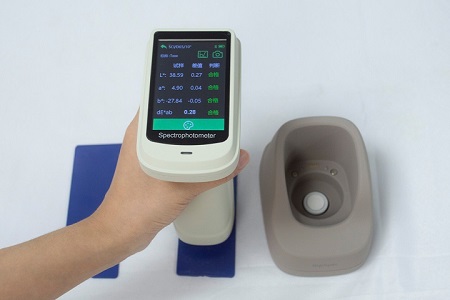

Automatic Calibration Technology

The instrument is placed on an intelligent calibration base, and the instrument can be automatically calibrated by the whiteboard on the base without human intervention. It changes the status quo of traditional instruments that must be calibrated manually on the white board. The white board made of ZrO2 with reflectivity R%>90% is used as the calibration standard, which ensures good mechanical strength and weather resistance, and no scratches and discoloration will occur in long-term use


Combination of various performance, better use

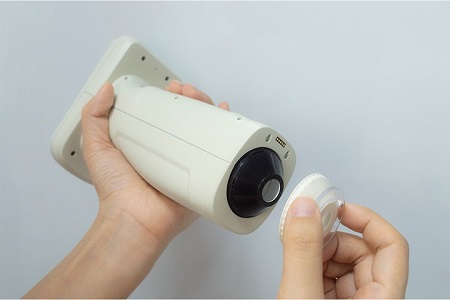

Equipped with three measuring calipers, which can be replaced at any time without tools to

meet the needs of various sample measurements


Provide a variety of measurement parameters and evaluation light sources in accordance with

international standards Flexible to add various light sources and measurement indexes through

mobile terminal or PC terminal program

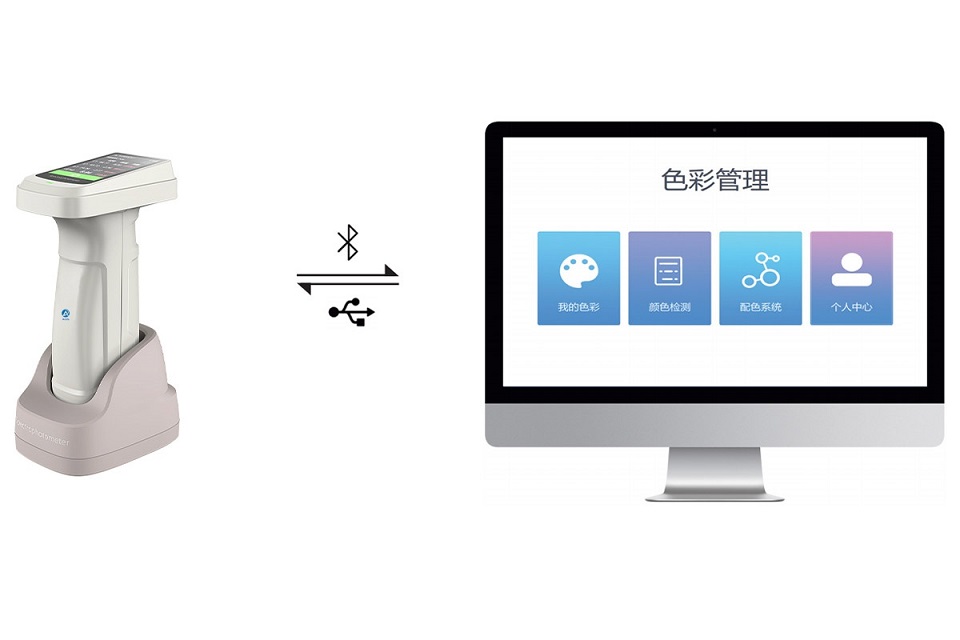

Support Android, IOS, WeChat applet, Windows program


Camera view positioning, can clearly observe the measured area


DS-700D spectrophotometer Specification

ModelDS-700D
GeometryDual optical path high precise CMOS array sensor
Spectroscopic methodGrating
Sphere sizeΦ40mm
 Wavelength range400-700nm
wavelength interval10nm
Reflectance measurement range0-200%,Resolution:0.01%
Lighting source3 Apertures(MAV:Φ8mm/Φ11mm;SAV:Φ4mm/Φ6mm;MINI:1*3mm)
Repeatability※ΔE*ab≤0.25
LanguageChinese, English
Display Resolution0.01
Observer2°,10°
Illuminants

A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,

ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Color Space / Indices


Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness


StorageAPP mass storage
InterfaceUSB,Bluetooth
Battery

Rechargeable, 8000 times continuous tests, 3.7V/3000mAh

Camera to see the measurement areaYes
CalibrationAuto Calibration
SoftwareAndriod,IOS,Windows
Accuracy GuaranteeMetrology Level I
StandardsConform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
ScreenIPS full color screen 3.5 inches
Light source lifetime1 million times in 10 years
Data storage100 targets, 10000 samples

※ After the instrument is calibrated, measure the white calibration plate 30 times at 5-second intervals and measure the standard deviation of the results with

the MAV caliber

※※ Average value of 12 swatches of BCRA series II


DS-700D spectrophotometer Photo

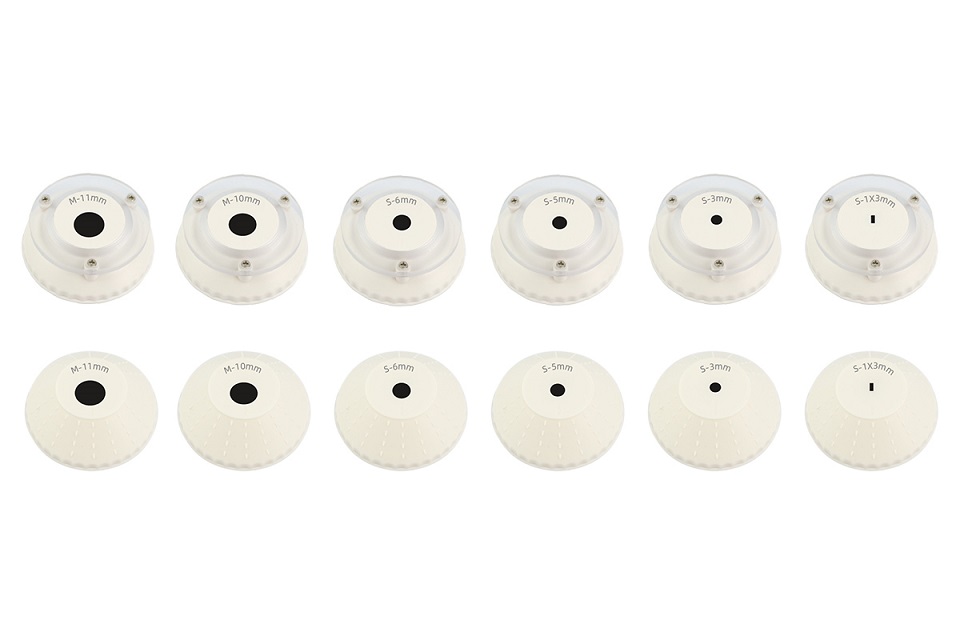

Supports 12 testing calibers

In order to facilitate the measurement of samples of different sizes by users, the DS700 series spectrophotometer supports 12 calibers for customers to use. The stable type is Φ 11mm+Φ 10mm+Φ 6mm+Φ 5mm+Φ 3mm+Φ 1 * 3mm, and the flexible type is ▽ 11mm+▽ 10mm+▽ 6mm+▽ 5mm+▽ 3mm+▽ 1 * 3mm, which can be flexibly applied to various usage and testing conditions.
