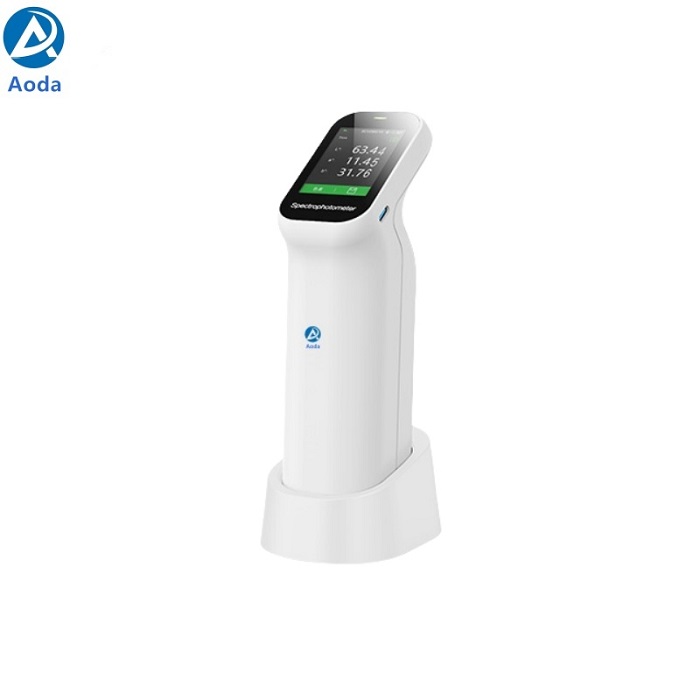

Aoda DS-400/410/420 spectrophotometer

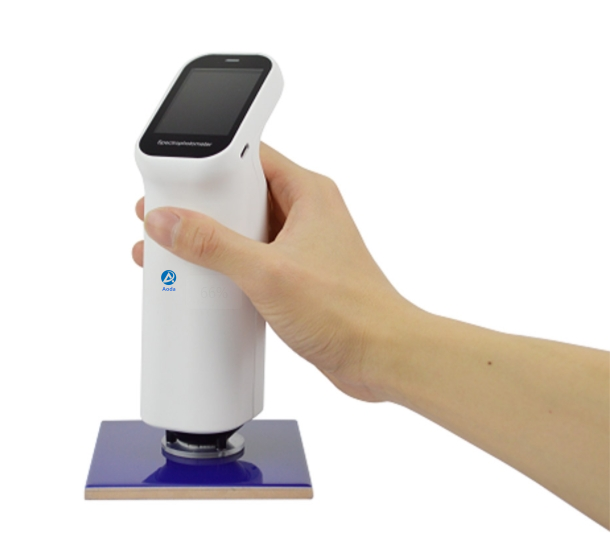

The DS-400 series spectrophotometer is a powerful color measuring instrument. In order to meet the general color measurement needs, the DS-400 series spectrophotometer still maintains excellent repetition accuracy, repeatability dE*ab≤0.03. DS-400 series spectrophotometer supports up to 10 kinds of measuring calibers, can measure more, camera view, simple operation, very easy to use; It can also connect the mobile APP, wechat mini program, computer management software, and carry out color measurement work at any time.
- Repeatability accuracy dE*ab≤0.03
- Supports SCI/SCE
- Supports a maximum of 10 calibers
- Built-in HD camera

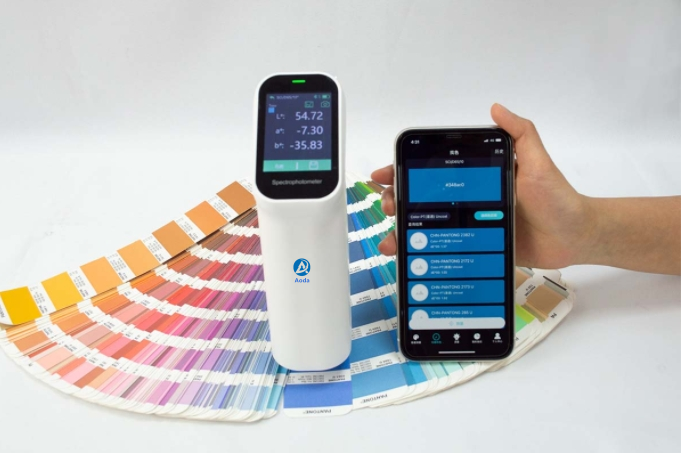

- Support Android,iOS,Windows, wechat applet
DS-400 series spectrophotometer Feature
Ultra-high repeatability accuracy：dE*ab≤0.03 Repeatability accuracy is an important index to describe the accuracy of a spectrophotometer. The excellent photoelectric test system ensures that the repeatability accuracy of DS-400 series spectrophotometer reaches a level that is difficult to compare with similar products. The repeatability evaluation of the DS-400 series spectrophotometer adopts strict standards, showing excellent repeatability accuracy performance. |  |
 | More than 30 measurement parameters RGB,Lab,Spectral reflectance,LCh,Hunter Lab,CIE-Luv,XYZ,Yxy Chromatic Aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00) Whiteness(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby) Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73) Blackness(My,dM),Color fastness, color fastness,Tint(ASTM E313-00) Color density CMYK(A,T,E,M), isochromatic index Milm, Munsell, hiding power, force (dye strength, coloring power) |

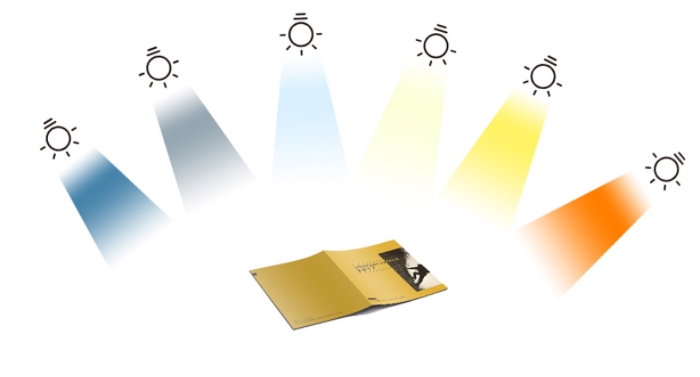

Evaluate whether the color is jumping light, providing nearly 40 evaluation light sources A, B, C, D50, D55, D65 and other nearly 40 evaluation light sources to choose from, covering almost all color measurement indicators and light source types in the industry. |  |

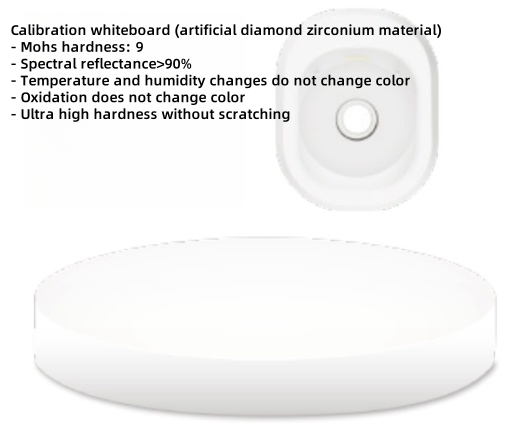

 | The calibration base and the zirconium reference of MoHS hardness 9 calibrate the instrument to ensure the long-term stability of the instrument Compared with existing products, DS-400 series spectrophotometer does not need frequent manual calibration when in use, as long as it is placed on the calibration base, the instrument will automatically calibrate the overall instrument function and accuracy according to its own state and environmental factors, to ensure that the instrument is always in a stable state and ready to be ready. The white board in the calibration base is the benchmark for instrument accuracy. Through long-term investment and research, the color spectrum integrates the zirconium material known as "artificial diamond" as a calibration whiteboard, and the surface Mohs hardness reaches 9. Due to the hardness and stability of the material itself, it is guaranteed that the surface of the calibrated whiteboard will not be scratched and will not change color with temperature and humidity changes. Compared with foreign and domestic similar products, ordinary industrial ceramics and even plastics are used as calibration whiteboards, which further improves the stability and durability to ensure the performance of the instrument. |

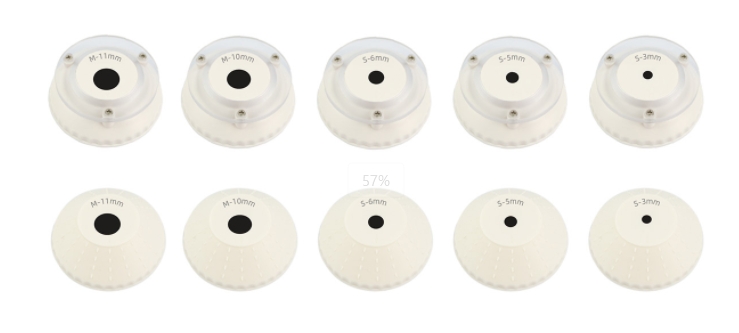

The DS-400 series is available in 10 measuring calibers In order to facilitate users to measure samples of different sizes, DS-400 series spectrophotometer supports 10 calibers for customers to use, stable type: Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm, clever type: - 11mm, - 10mm, - 6mm, - 5mm, - 3mm, can be flexibly applied to a variety of different use and test conditions. |  |

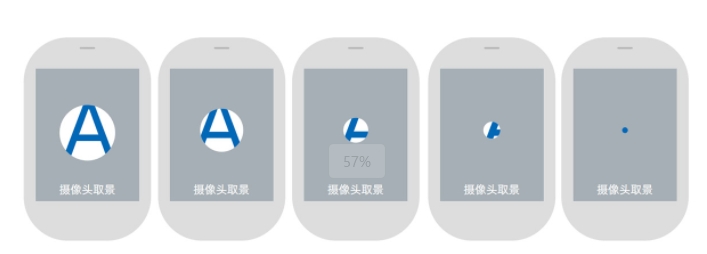

 | Built-in HD camera for clear observation of the area under test The DS-400 series spectrophotometer can obtain the image of the measured area through the camera during the measurement, and can clearly locate the measured area of the sample to avoid the uncertainty caused by regional errors. |

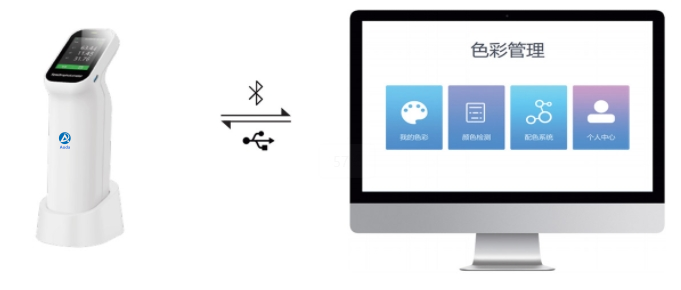

Use the powerful PC-side color management system ColorExpert DS-400 Series spectrophotometer comes with the Windows color management system ColorExpert, which is connected to the DS-400 series spectrophotometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four functional modules: My Colors, Color detection, color matching system, and Personal Center. |  |
DS-400 series spectrophotometer specification
Product model | DS-400 | DS-410 | DS-420 |
Measurement structure* | D/8，SCI/SCE | ||
Measurement repeatability** | ΔE*ab≤ 0.03 | ||
Display accuracy | 0.01 | ||
Measuring aperture | There are 4 stable and smart types: Φ11mm，Φ6mm ▽11mm，▽6mm | There are 6 stable and smart types: Φ11mm，Φ6mm，Φ3mm ▽11mm，▽6mm，▽3mm | There are 10 stable and smart types: Φ11mm，Φ10mm，Φ6mm，Φ5mm，Φ3mm ▽11mm，▽10mm，▽6mm，▽5mm，▽3mm |
Measurement index | Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,Chromatic Aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00), Whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925, ASTM E313-00,ASTM E313-73),Blackness (My,dM), color fastness, color fastness,Tint(ASTM E313-00), Colour densityCMYK(A,T,E,M),Isochromatic index Milm, Munsell, covering power, force (dye strength, coloring power) | ||
Light source condition | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83, TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 | ||
Lighting source | All-band equalizationLED light source | All-band equalizationLED light source +UV | |
Field Angle | 2°，10° | ||
Integral sphere diameter | 40mm | ||
Meet the standard | Andriod,iOS,Windows,Wechat mini program | ||
Accuracy guarantee | Qualified measurement | First level qualification | |
Field Angle | 2°，10° | ||
Integrating sphere diameter | 40mm | ||
Meet the standard | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | ||
Spectroscopic method | Nano integrated spectral device | ||
Inductor | Silicon photodiode array Double16 groups | ||
Wavelength interval | 10nm | ||
Wavelength range | 400-700nm(Users can view the reflectivity of 31 wavelengths) | ||
Reflectance measurement range | 0-200% | ||
Reflectance resolution | 0.01% | ||
Measurement mode | Single measurement, average measurement（2~99 times） | ||
Measuring time | About1s | ||
Measurement and observation mode | Visual | Camera | |
Calibrate | Intelligent automatic calibration | ||
Software support | Andriod,iOS,Windows,Wechat mini program | ||
Accuracy guarantee | Qualified measurement | First level qualification | |
Port | USB，Bluetooth | ||
Screen | Full color screen, 2.4 inches | ||
Battery capacity | 8000 continuous measurements in a single charge, 3.7V/3000mAh | ||
Light source lifetime | 1 million times in 10 years | ||
Language | Simplified Chinese, English | ||
Store | Instrument: 10,000 data; APP: Mass storage | ||
