Aoda WSB-V Intelligent Flour Whiteness meter

Aoda WSB-V Intelligent Flour Whiteness meter

WSB-V intelligent whiteness meter is mainly used to measure the blue light whiteness of the surface of objects. It can be applied to flour, starch, rice flour, salt, textiles, printing and dyeing, chemical fiber, plastics, porcelain clay, talcum powder, white cement, coating, paint, ceramics, enamel, paper, pulp and other departments that need to measure the whiteness of products. The intelligent whiteness meter adopts pulse flash technology and is also equipped with a long-life light source of up to 100,000 hours. It is simple and convenient to operate.

Whiteness meter Working Principle

The whiteness meter uses an integrating sphere to measure the absolute spectral diffuse reflectance. The light emitted by the halogen tungsten lamp is transformed into blue-purple light by the condenser and color filter, and enters the integrating sphere. After diffuse reflection on the inner wall of the integrating sphere, the light is irradiated on the sample at the test port. The light reflected by the sample is received by the silicon photocell after passing through the condenser, light barrier and color filter group, and converted into an electrical signal. Another silicon photocell receives the base signal in the sphere. The two electrical signals are amplified and mixed respectively, and the measurement results are displayed digitally and printed by the built-in printer.

Whiteness meter Features

1. The intelligent whiteness meter is equipped with a long-life light source, up to 100,000 hours.

2. Fully sealed design to meet various production site measurements.

3. Simple linear calculation method with high accuracy.

4. Simple and convenient operation: one-key zero calibration, full digital calibration of white board, automatic saving of calibration parameters.

5. Highly integrated hardware design, embedded operating system. Fast digital wave algorithm, complete measurement in two seconds. Technical performance complies with JJG512-2002 whiteness meter measurement results, measurement results are digitally displayed, and can also be printed out by printer through data.

Whiteness meter Technical parameters

Diffuse illumination vertical detection mode (d/o).

Complies with GB3978-83: standard illumination body and illumination observation conditions, simulates D65 illumination body illumination, adopts d/o illumination observation geometry conditions, diffuse ball diameter φ120mm, measuring hole diameter φ20mm, equipped with light absorber, eliminates the influence of sample mirror reflection light.

Illumination light source: D65 light source

Measurement method: reflection

Repeatability: ≤0.1

Indication drift ≤0.1

Zero drift ≤0.1

Indication error ≤0.5

Indication accuracy: 0.1

Measurement hole diameter: the measured sample is not less than φ30mm

Output method: 3.5-digit digital display, can also be used to print out the data on the printer (printer is an optional accessory)

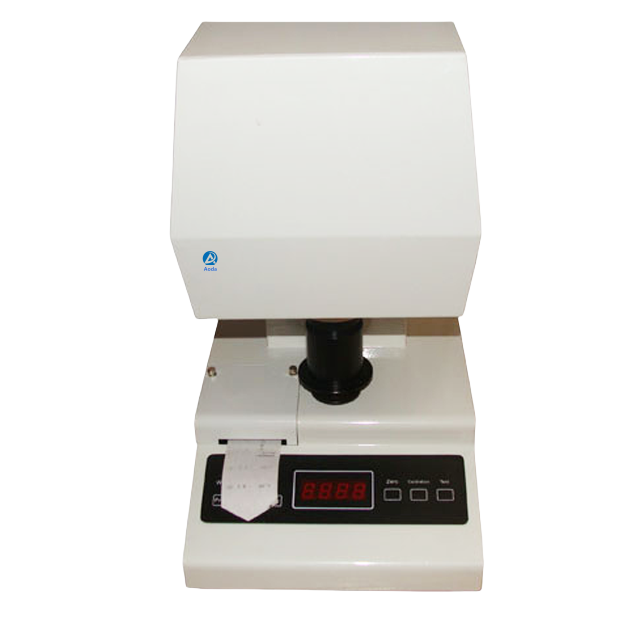

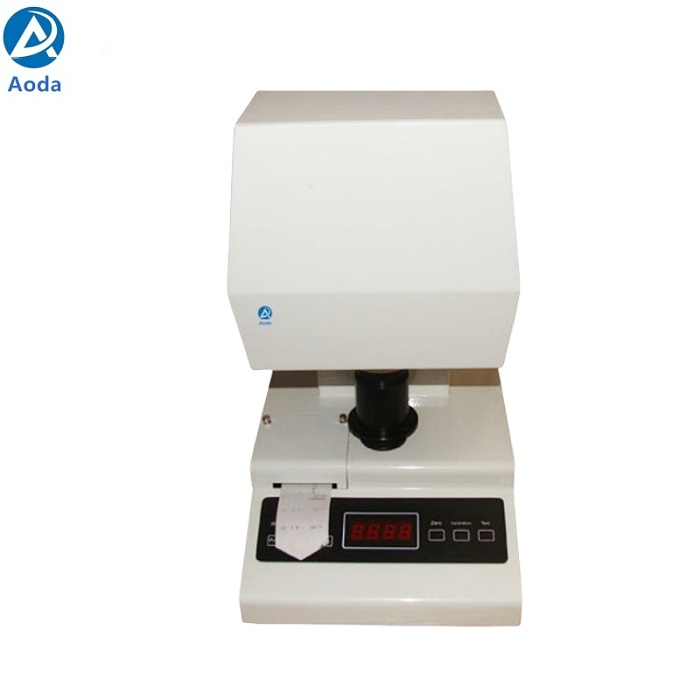

Whiteness meter photo
