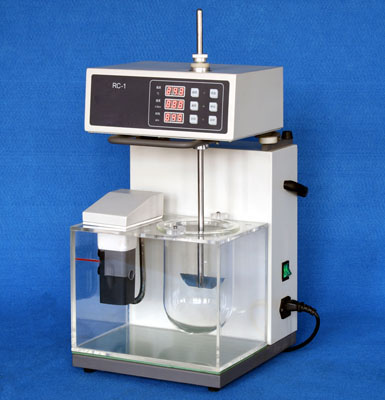

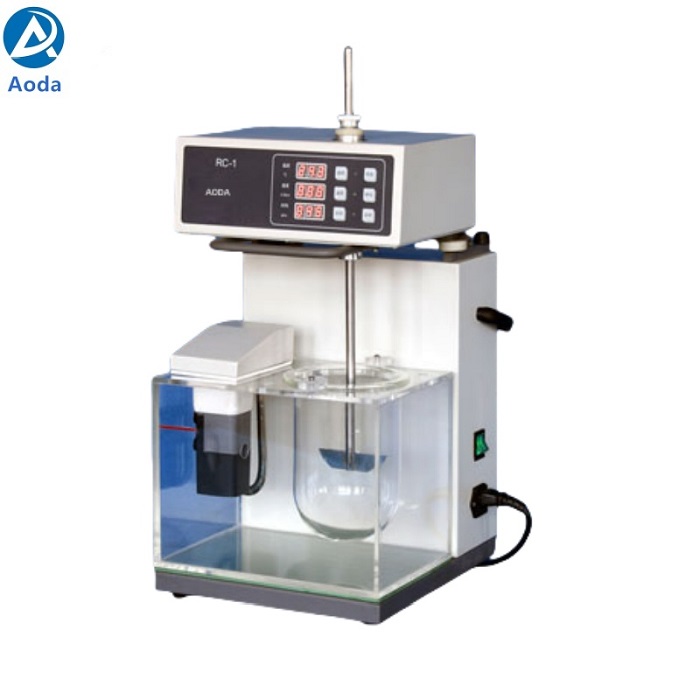

RC-1 Dissolution tester

RC-1 Dissolution tester

Dissolution tester measures the extent and rate of solution formation from a dosage form, such as tablet, capsule, ointment, etc. The dissolution of a drug is important for its bioavailability and therapeutic effectiveness.

Standards

The Pharmacopoeia of the People's Republic of China 2020 edition.

Industry standard "Drug Dissolution Tester".

Main features of RC-1 Dissolution tester

One cup, one paddle.

The machine head is manually flipped, smooth and flexible.

The blue rotor and propeller shaft are made of imported SUS316L stainless steel.

Adopting a micro water pump circulating water flow uniform heating system, the water bath temperature is uniform.

Fully automatic intelligent control of temperature, speed and time parameters.

Parameters can be pre-set freely; Display preset and real-time values in a time-sharing manner.

Automation, automatic detection, automatic diagnosis, and automatic alarm.

TECHNICAL INDEX of RC-1 Dissolution tester

Speed range : (20-200) rpm

Speed regulation accuracy  : ±2 rpm

Temperature control range : (RT~45.0) ℃

Temperature control accuracy : ± 0.3 ℃

Timing range : (5-900) min, a total of six points

Timing accuracy :±0.3%

Swing amplitude of the basket : ±1mm

Paddle swing amplitude :±0.5mm

Axis eccentricity : ±2.0mm

Electric heater with a power of 500W

Continuous working time greater than 24 hours

Power supply : 220V/50Hz

Power : 600W

Dimensions : (26 x 30 x 48) cm

Weight : 15kg
