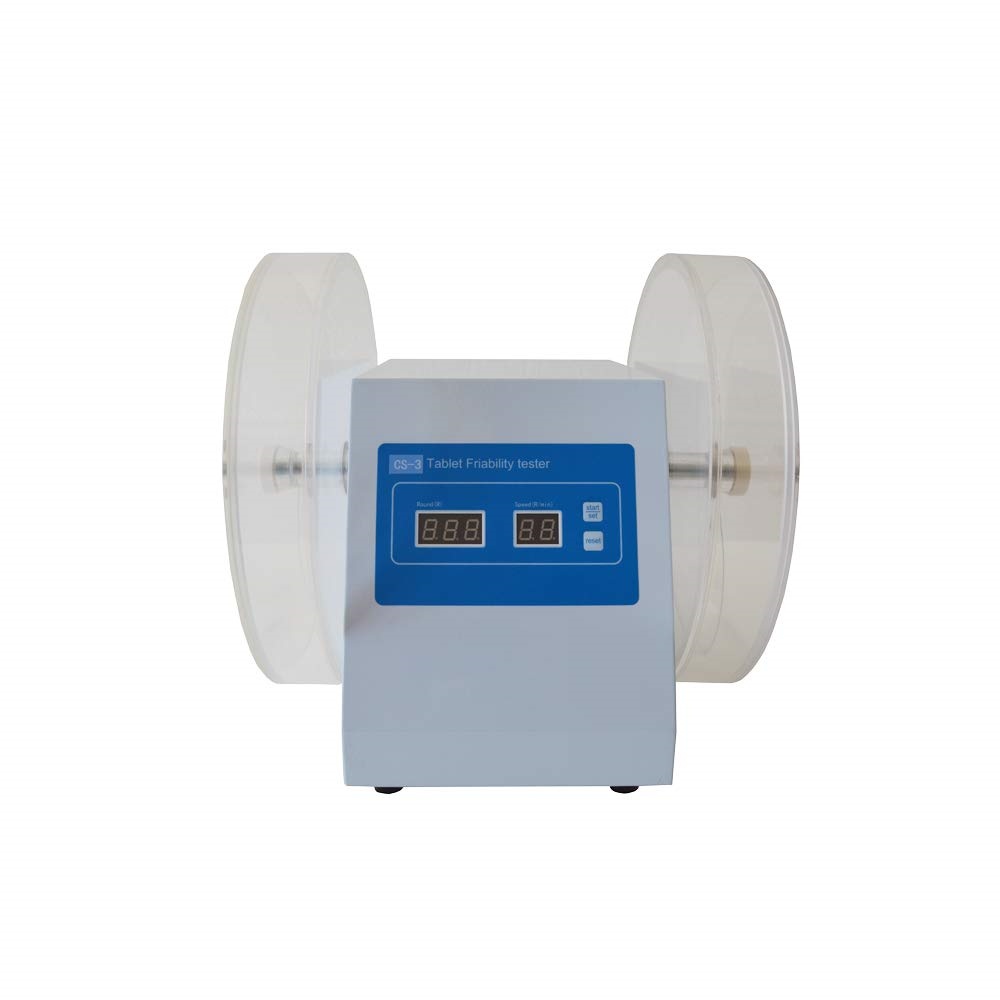

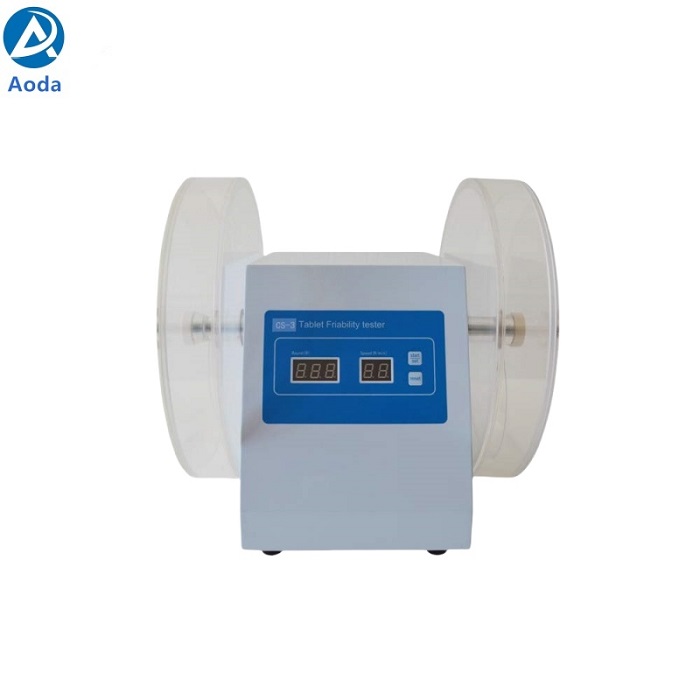

CS-3 Tablet friability testing equipment
CS series Fragility tester is used to check the brittleness and other physical strengths, such as crushing strength, of non coated tablets.
Friability test of tablets, Granules, Spheroids is a technique used by the pharmaceutical company to test the durability of tablets, Granules as well as Spheroids before coating, packaging, and transportation.
Applicable standards:
National standard (Chinese codex) / 2015
Industry standard (Tablet friability tester)
●Single channel double cylinder, synchronous operation; automatic timed shutdown.
●The cylinder is made of high-quality colorless transparent organic glass.
●Automatic preset speed, you can preset the number of circles at will; time-sharing display of preset value and real-time value.
●Fully automatic intelligent control of the two parameters of cylinder rotation speed and number of rotations; high control accuracy.
●Automation, automatic detection, automatic diagnosis, automatic alarm
CS series Tablet Frability testing equipment | |||
Model | CS-1 | CS-2 | CS-3 |
Cylinder quantity | 2 | 2 | 2 |
Cylinder radius | F286mm | ||
Cylinder depth | 39mm | ||
Tablet fall height | 156mm | ||
Rotation speed | 20~99rpm | 25rpm | 25rpm |
Speed accuracy | ±1rpm | ||
Rotation count | 5~900 circles | 100 circles | 10~900 circles |
Rotation count accuracy | ±1 circle | ||
Contineous work time | >24hours | ||
Power supply | 220V50Hz 110V60Hz | 220V50Hz 110V60Hz | 220V50Hz 110V60Hz |
Power | 60W | 40W | 40W |
Dimensions(L*W*H) | 37*30*34cm | ||
Weight | 14kg | 11kg | 14kg |
