PC-3 Tablet four-usage tester

PC-3 Tablet four-usage tester

The tablet four-usage tester is used to check the dissolution rate, disintegration time, friability and hardness of the drug....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

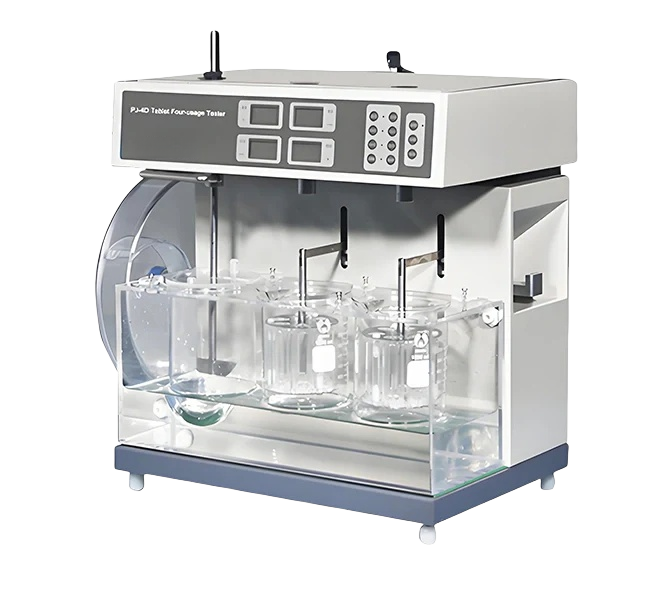

PC-3 Tablet four-usage tester

The tablet four-usage tester is used to check the dissolution rate, disintegration time, friability and hardness of the drug.

Disintegration Tester.jpg

Applicable standards:

National standard (Chinese codex) / 2015

Industry standard (Dissolution tester)

Industry standard (Disintegration tester)

Industry standard (Tablet friability tester)

Industry standard (Tablet hardness tester)

Features 蓝.jpg

Intellectualized, auto-control, auto-test, auto-diagnose, auto-alarm.

The circular water current pumped by magnetism pump can heat the system equally, and the bath liquid can achieve an even temperature.

Temperature is high accurately auto-controlled.

Auto stop at timing point.

Parameters can be preset at any time, the preset and real data are displayed alternately in time.

It has three vessels and three poles arranged on one line. The head part of the instrument can be artificially turned over smoothly and flexibly.

Two disintegrations run synchronously. Auto stop at timing point.

High accuracy is achieved in testing rotary speed and counting friability.

The hardness has high accuracy press sensor and hardness data is displayed in Newton.

It tests tablet hardness continuously. The tablet is loaded and pressed artificially.

Auto-display, auto-memorize, auto-reset, auto-retest.


Tablet four-usage tester

Temperature range

20~45℃

Temp.accuracy

±0.3℃

Speed range

20~200rpm

Speed accuracy

±2rpm

Automatic time range

1~900min

Time accuracy

±0.5min

Stations of dissolution

3

Paddle radial run-out

±0.5min

Basket radial run-out

±1.0min

Basket assemblies

2

Nacelle back and forth frequency

30~32/min

Nacelle back and forth range

55±2mm

Drum

1

Drum’s size radius

286mm; depth : 39mm

Hardness measuring range

2~200N

PROBE PROCESSION RANGE

3~20mm

Power supply

220V50HZ;110V60Hz

Power

600W

Dimensions

520x380x480mm

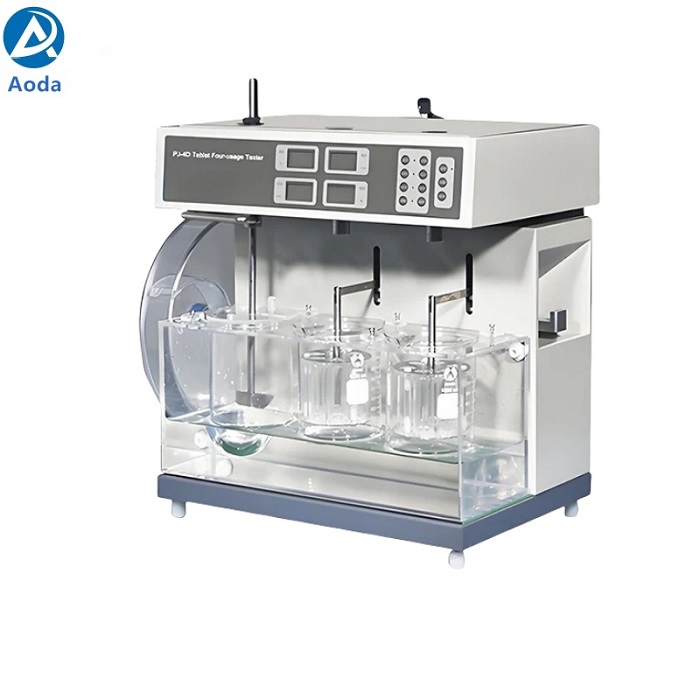

Product photo 蓝.jpg
