THC-100 Color Haze Meter

THC-100 Color Haze Meter

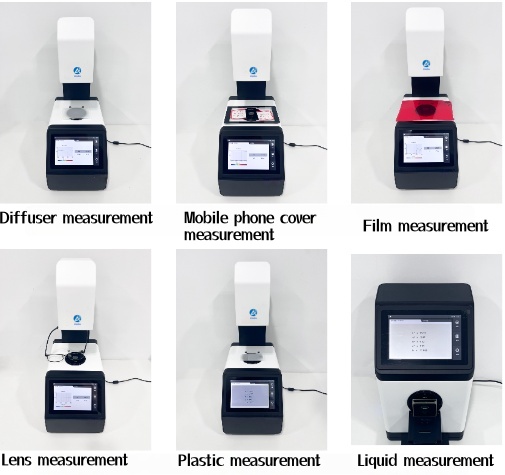

THC-100 color haze meter is designed with a full-spectrum LED light source and a spectral sensor. It is used to measure the haze, transmittance, color difference, platinum-cobalt chromaticity, yellowness, whiteness and other parameters of various transparent and translucent materials such as plastics, glass, and films, and can display the transmittance spectrum curve.

The instrument uses a 7-inch touch screen design, which is simple and convenient to operate.

The THC-100 color haze meter uses an open measurement area with two measurement states: horizontal and vertical. It can detect liquids and large-sized materials.

The THC-100 color haze meter also uses a dual-caliber design of 21mm and 7mm, so small-sized materials can also be measured.

The instrument is equipped with PC software to support data export and report printing.

1. Support both ASTM and ISO standards

It can support both ASTM and ISO standards to meet the test standard requirements of different users, and it also supports ISO standards without compensation ports.

JJF 1303-2011 Haze meter calibration specification

GBT 2410-2008 Determination of light transmittance and haze of transparent plastics
GBT 36142-2018 Measurement method of color and color difference of architectural glass
JJG 595-2002 Verification procedure for colorimeter
GBT 3978-2008 Standard lighting body and geometric conditions
GBT 7921-2008 Uniform color space and color difference formula

2.Can measure color difference, haze, transmittance, transmittance spectrum curve, liquid chromaticity
The instrument can measure multiple parameters such as haze, transmittance, color difference, liquid chromaticity, etc. of various transparent and translucent materials such as plastics, glass, films, etc., and can display the transmittance spectrum curve.

3. 7-inch large touch screen
It uses a 7-inch IPS smart screen, does not require any buttons to operate, has a good human-computer interaction interface, and is extremely easy to operate.

4.Professional transmittance spectrum curve
The measurement results can show the transmittance of the material in different wavelengths between 400-700nm. Through this transmittance performance data, various optical properties of the material can be evaluated.

5.Good repeatability
The instrument has good repeatability, with haze repeatability ≤0.03, transmittance repeatability ≤0.03, and color difference repeatability ≤0.03, which is comparable to imported brands.

6.Dual-caliber design
The instrument adopts a dual-aperture design of 21mm and 7mm, and the appropriate test aperture can be selected according to the size of the material being tested.

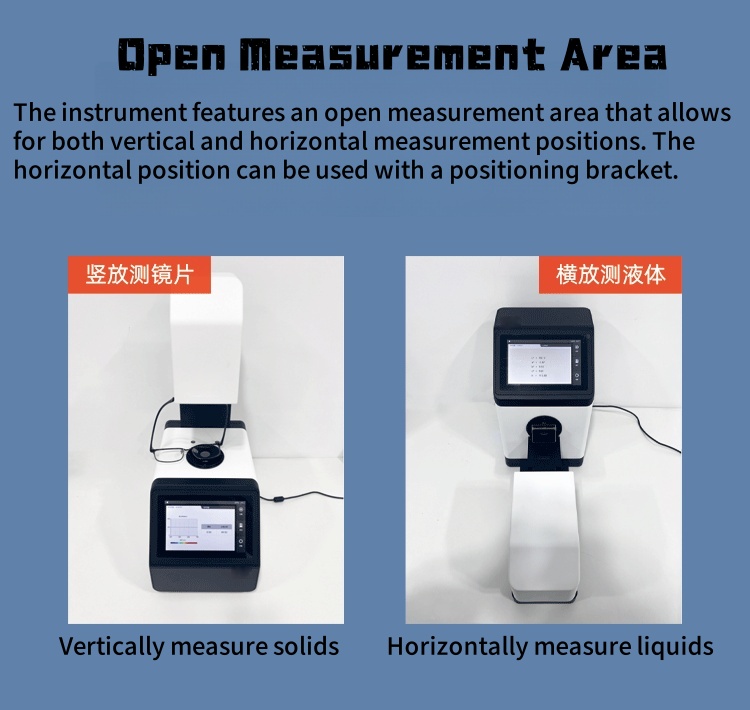

7.Open measurement area
The instrument has an open measurement area and two measurement states: vertical and horizontal. When placed horizontally, it can be used with a positioning bracket.

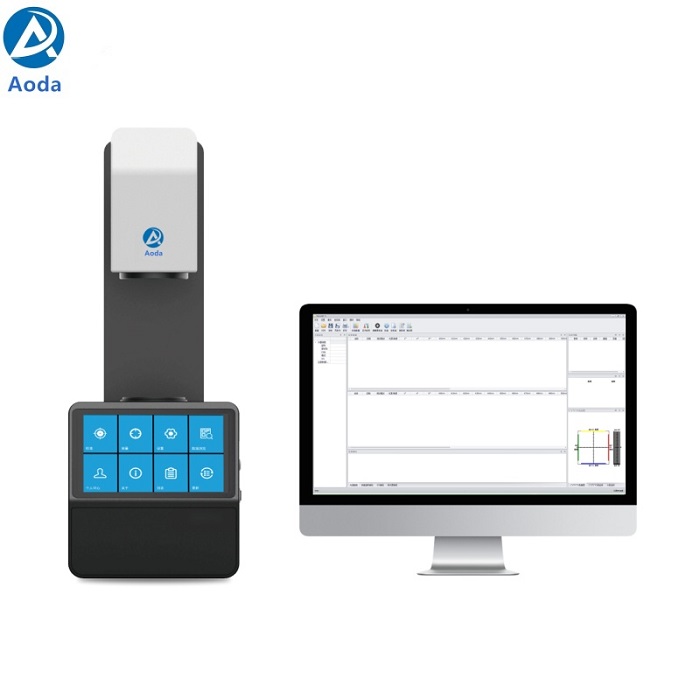

8.Equipped with PC software

The instrument is equipped with PC software and can be connected via a USB interface to perform online measurements and support data export and test report printing.

9.Ensure that it can pass national measurement

The instrument's haze measurement and color difference measurement are guaranteed to pass the inspection of the National Institute of Metrology.
