TH-09/100/110 Haze Meter
TH-09/100/110 Haze Meter complies with ISO & ASTM double standards and is equipped with double caliber (21mm / 7mm). It is suitable for one-stop measurement solution of haze and transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.
Open measurement area
Free from external ambient light interference
No preheating required
Data output in 1.5 seconds
The instrument complies with the standard
At the same time, it supports ASTM (American) and ISO (International) standards. The standards followed are: GB / T 2410, ASTM D 1003, ISO 13468 and ISO 14782
Instrument advantages
Meet the haze and total transmittance measurement under cie-a, cie-c and cie-d65 standard lighting sources

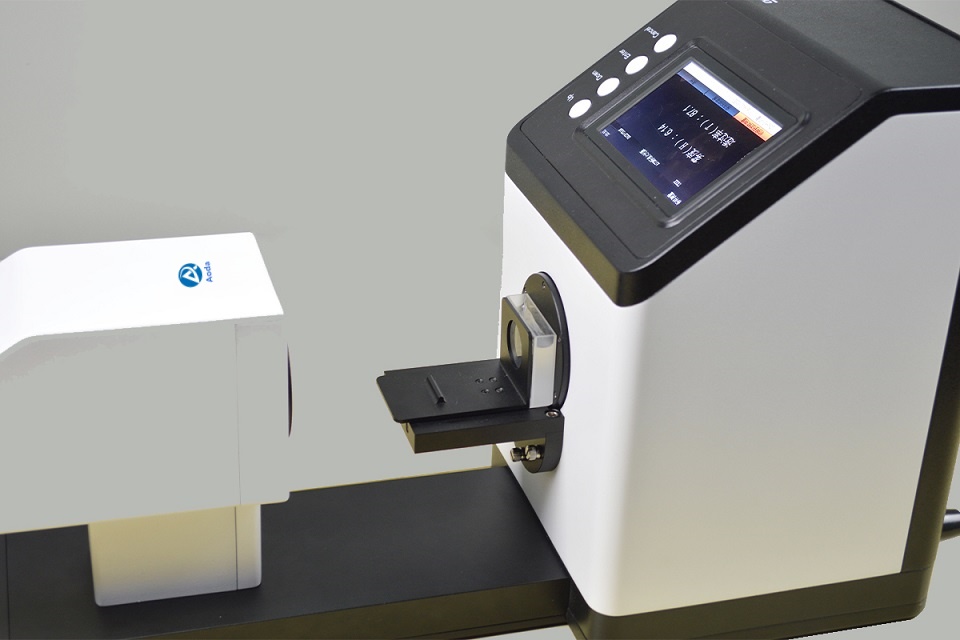

Vertical and horizontal measurement States
Small size, light weight, easy to carry; Measure as convenient as you can
TH series advantageous performance
It has an open measurement area, which can meet the measurement of samples of any size
Unique signal processing technology ensures that the measurement results are not disturbed by external ambient light
There are two measurement states: vertical and horizontal, which can be measured as convenient as possible
Without preheating, the test time is only 1.5 seconds
The special configuration of th-110 makes the instrument even more powerful

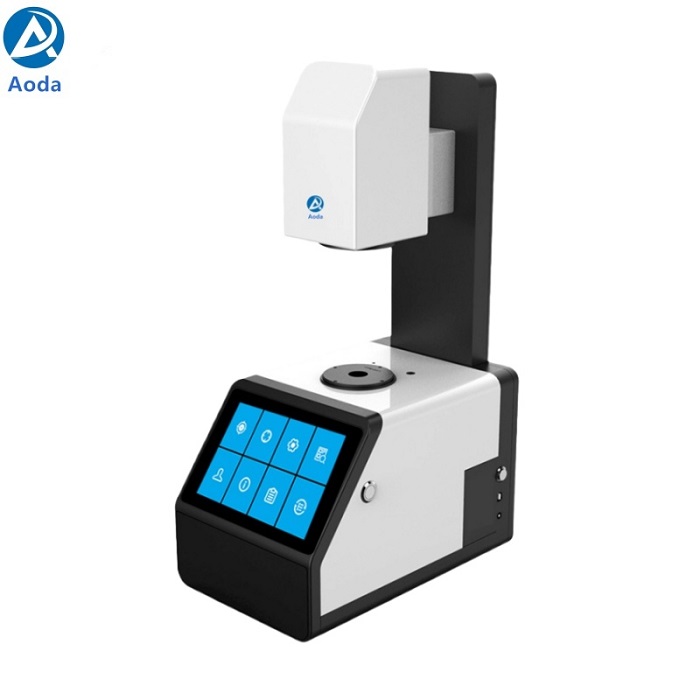

It adopts 7-inch touch screen operation and Android operating system
Double caliber (21mm / 7mm)
Haze meter | |||

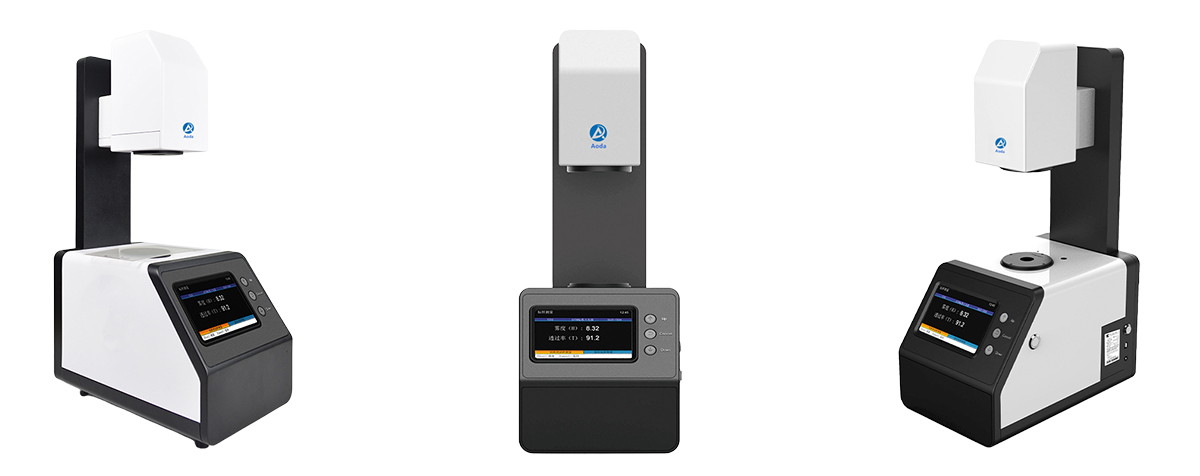

Model | TH-09 | TH-100 | TH-110 |
Illuminants | CIE-A,CIE-C | CIE-A,CIE-C,CIE-D65 | |
Standards | ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 | ||
Parameters | Haze and transmittance under ASTM standard | Haze and transmittance under ASTM and ISO double standards | |
Spectral response | CIE spectral function y / V（ λ) | ||
Geometry | 0/d | ||
Test Aperture | 21mm | 21mm | 21mm,7mm |
Measurement Range | 0-100% | ||
Haze Resolution | 0.01% | ||
Haze Repeatability | 0.1 | 0.08 | 0.05 |
Sample size | Thickness≤145mm | ||

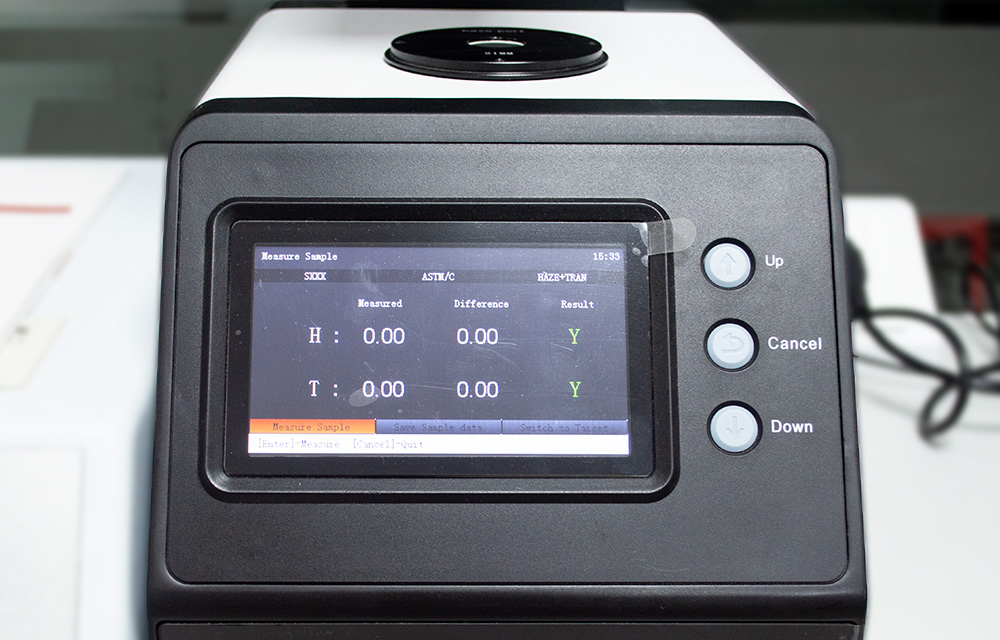

Display | 5-inch TFT LCD | 5-inch TFT LCD | 7-inch touch screen, Android system |
Memory | 10000 values | 20000 values | Mass storage |
Interface | USB interface | ||
Power | DC12V/3A | ||
Working temperature | 5 ~ 40 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation | ||
Storage temperature | -20 ℃ ~ 45 ℃, relative humidity 80% or lower (at 35 ℃), no water vapor condensation | ||
Size (LxWxH) | Length x width x height:310mmX215mmX540mm | ||
Weight | 6kg | ||

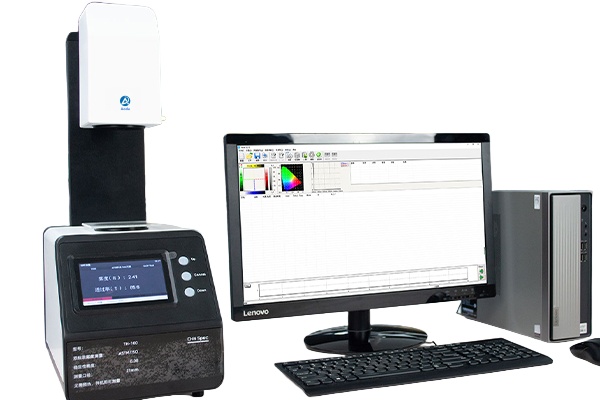

Standard Accessory | PC management software(Haze QC) | ||
Optional | Measuring fixture, haze standard plate customized aperture | ||
