ND300 Sample concentrator

ND300 Sample concentrator

ND300 Sample concentrator works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. ...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

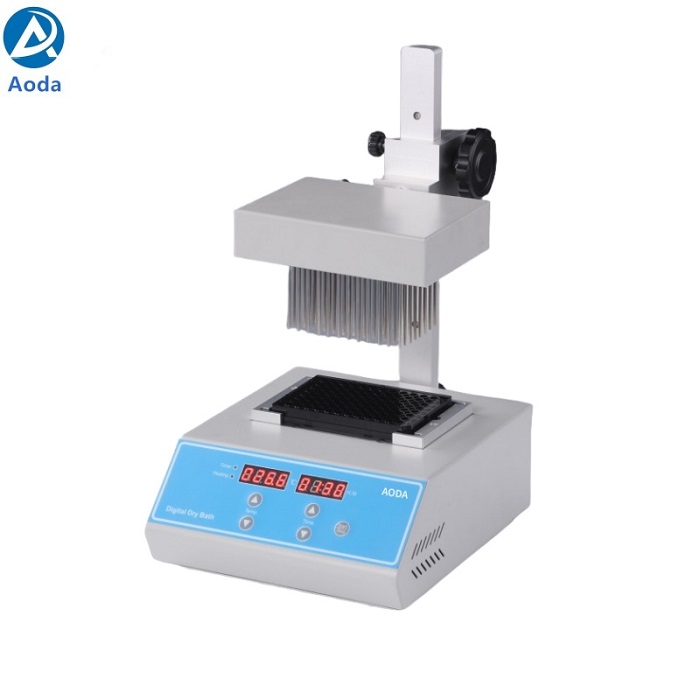

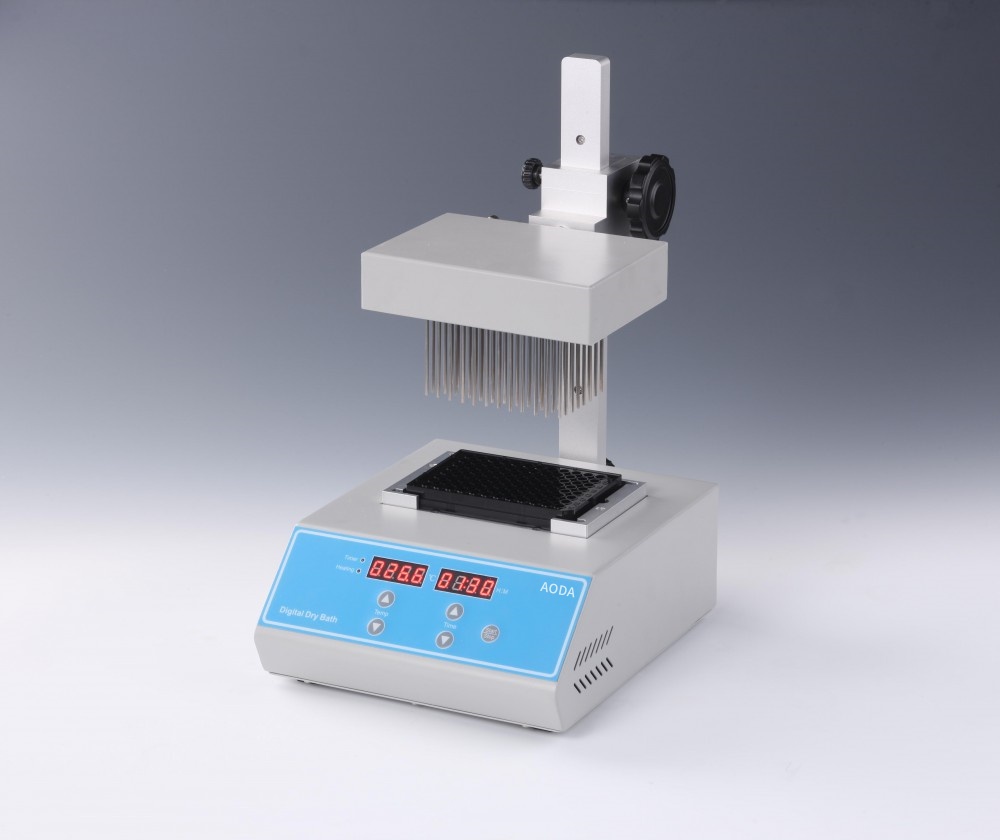

AND300 Sample concentrator

AND300 Sample concentrator is a high precision temperature control instrument with microprocessor controlled and PID fuzzy controlled technique. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate a large of samples simultaneously.


Features 蓝.jpg


 1. High precision and wide range of temp control.


 2. Blowing a large number of samples at one time.


 3. Blowing each sample independently.


 4. Easy operation; safe and reliable to use.




a. Analysis of pesticide residues: vegetables, fruits, cereals, plant tissue.


b. Environmental analysis: such as drinking water, groundwater and polluted water samples.


c. Biological analysis: such as hormone analysis, sample preparation of liquid phase and gas phase and mass spectrometry analysis.


d. Food and beverage: such as milk, wine, beer, etc.


e. Pharmaceutical drug testing: such as traditional Chinese medicine pharmaceutical, drug screening.



AND300 Sample concentrator

 Temp range

 RT.+5°C -160°C

 Temp accuracy

 ±0.5℃(@40℃)

 Temp accuracy

 ±1℃(@120℃)

 Temp uniformity

 ±0.5℃

Display accuracy

0.1℃

Time Range

1-99h59min/∞

Heating time

≤15min(from 25℃ to 160℃)

Max vertical travel

150mm

Max gas usage

15L/min

Max gas pressure

0.05Mpa

Block qty

1

Max power

500W

Voltage

AC220V or AC110V/50~60Hz

Size

220x310x385mm

Weight

7.5kg

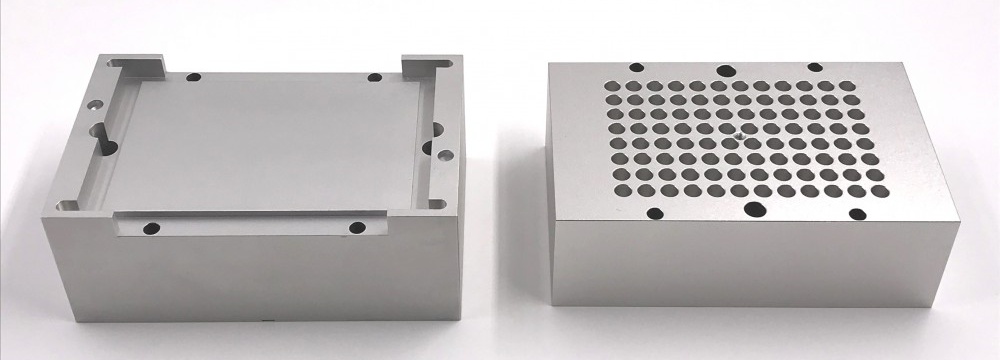

Optiona blocks for AND300 Sample concentrator

Model

Test tube diameter(mm)

Capacity

Dimension(mm)

MD17

0.2ml PCR plate

96

153x95.5x60

MD18

Elisa plate

96

153x95.5x60
