Aoda Low temperature thermostatic water bath

Aoda Low temperature thermostatic water bath

The low-temperature constant temperature bath is a device that provides controlled cooling, heating, uniformity, and constant temperature for experimental reactions. It can also serve as a direct heating or cooling source and auxiliary heating or cooling ...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda Low temperature thermostatic water bath


The low-temperature thermostatic water bath is a device that provides controlled cooling, heating, uniformity, and constant temperature for experimental reactions. It can also serve as a direct heating or cooling source and auxiliary heating or cooling source.


The Low temperature thermostatic water bath is a common equipment that is necessary in laboratories. It is widely used in the fields of bioengineering, national defense, medicine, food, chemical industry, metallurgy, chemical analysis, petroleum, etc. It provides users with a high-precision, controlled, and temperature-uniform constant field source. It is an ideal constant temperature bath for large, medium and small research institutes, colleges and universities, factory laboratories, and quality inspection departments.

Features 蓝.jpg

1. Adopting microcomputer temperature control PID regulation high technology, high temperature control accuracy.


2. The intelligent full digital system can correct the deviation of temperature measurement value, and the digital display resolution

reaches 0.1℃.


3. The refrigeration system has multiple protection functions of overheating and overcurrent.


4. Intelligent instrument control, simple operation, high temperature stability, and upper and lower limit over-temperature alarm function.


5. Equipped with a full high-efficiency anti-interference compressor.


6. The cooling speed is faster than similar products, with low noise and small vibration.


7. Adopting dual digital tube display, the upper digital tube measurement value (PV) is red, the lower digital tube set value (SP) is

green, and LED display.


8. There are internal and external circulation. During the external circulation, the constant temperature liquid in the tank can be led out,

and a second constant temperature field can be established. It can also be used as a cold source (heat source) to lead the liquid in the

tank out, which can keep the temperature of the experimental container outside the tank constant and expand the scope of use.


Low temperature thermostatic water bath

Model

AGD-2T

AGD-4T

AGD-6T

Type

Single hole

Double holes

4 holes

Temperature range

-20~100℃

-20~100℃

-20~100℃

Resolution

0.1℃/0.01℃

0.1℃/0.01℃

0.1℃/0.01℃

Temp.stability

±0.05℃

±0.05℃

±0.05℃

Material

SUS304

SUS304

SUS304

Temperature controller

PID

PID

PID

Heating method

L-type heating

L-type heating

L-type heating

Temperature test

PT100

PT100

PT100

Timer

0-9999min/hrs

0-9999min/hrs

0-9999min/hrs

Opening sizemm

160X160

300X160

300X300

Bath tank sizemm

160X300X140

300X300X140

310X470X140

External sizemm

250X350X570

350X380X700

380X510X700

Volume

6L

12L

20L

Power

1000W

1500W

1500W

Power supply

220V 50HZ

220V 50HZ

220V 50HZ

Max flow

14L/MIN

14L/MIN

14L/MIN

Max lift

12M

12M

12M

External circulation interface

M15-10mm

M15-10mm

M15-10mm

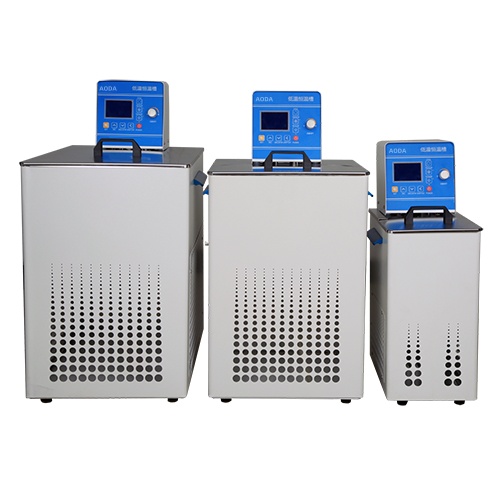

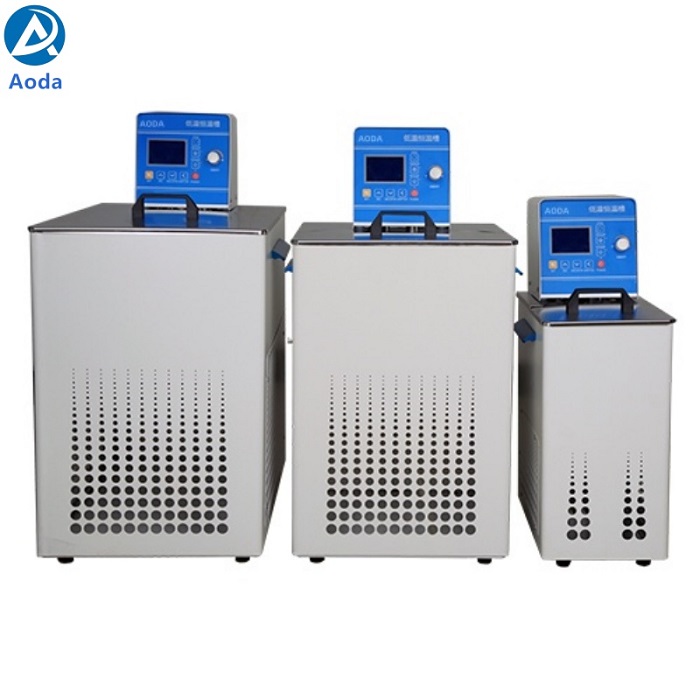

Product photo 蓝.jpg
