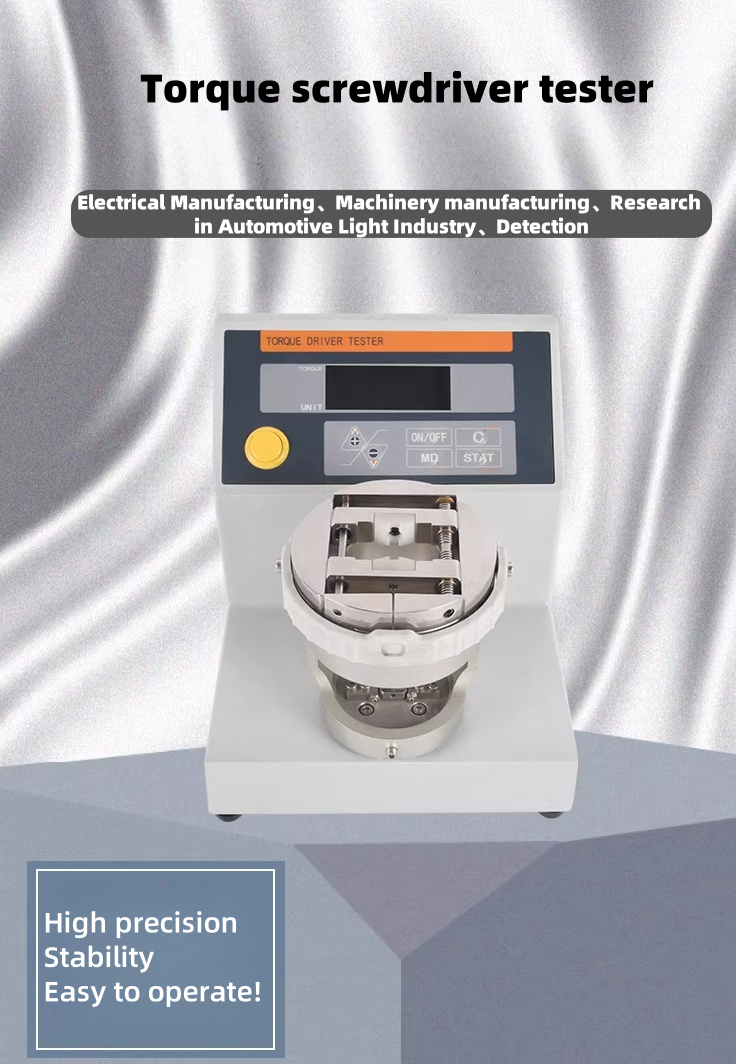

ANQH Torque Screwdriver Tester
ANQH torque screwdriver tester is an intelligent measuring instrument designed and developed for detecting various torques. It is mainly used for the torque setting of various electric and pneumatic screwdrivers, the detection and correction of torque scr...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
ANQH Torque Screwdriver Tester
ANQH Torque Screwdriver Tester is an intelligent measuring instrument designed and developed for detecting various torques. It is mainly used for the torque setting of various electric and pneumatic screwdrivers,
the detection and correction of torque screwdrivers, torque screwdrivers, etc., and the torsional damage test of parts. Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry
and professional scientific research and testing industries.

The mechanical loading function can eliminate errors caused by variable factors such as the operator's measurement speed or force.
The torque driver can be firmly fixed by the loading device, so as to minimize the individual error range.

| ANQH Torque Screwdriver Tester | ||
Model | ANQH-2 | ANQH-10 |
Maximum | 2N.m | 10N.m |
0.2kgf.cm | 1kgf.cm | |
0.45Lbf.in | 2.2Lbf.in | |
Minimum resolution | 0.0001 | 0.001 |
Accuracy | ±1% | |
unit | N.m / Kgf.cm / Lbf.in | |
Data storage | Up to 100groups | |
power supply | Enter:AC 220V/110V Output:DC 12V | |
Operating temperature | 5℃~35℃ | |
Transport temperature | -10℃~60℃ | |
working environment | No vibrating sources and corrosive media around | |
Dimensions(mm) | 220 * 234 * 225 | |
weight(kg) | 14.5 | |
