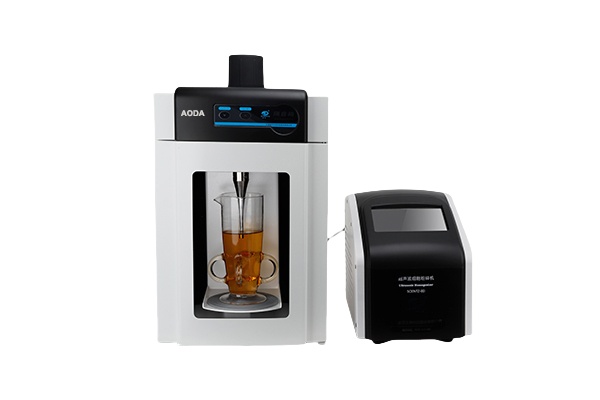

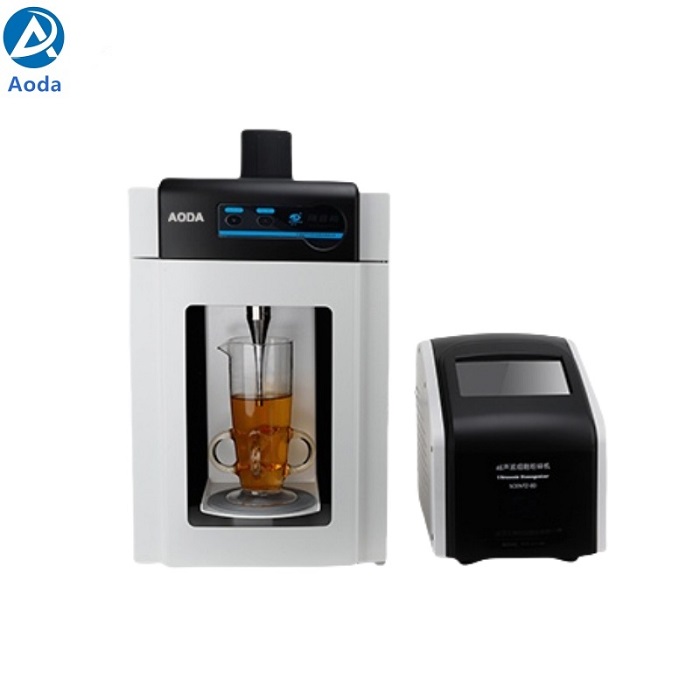

AODA JY98-IIIDN 1200W Ultrasonic Homogenizer

AODA JY98-IIIDN 1200W Ultrasonic Homogenizer

JY98-IIIDN ultrasonic homogenizer, adjustable power 1%~100%, can handle 50-1000ml samples. It can handle the crushing of many kinds of cells, bacteria, viruses and animal and plant tissues, and can prepare, disperse and accelerate chemical reactions. Applied in biology, medicine, agronomy, chemistry, material science, pharmaceuticals, etc.

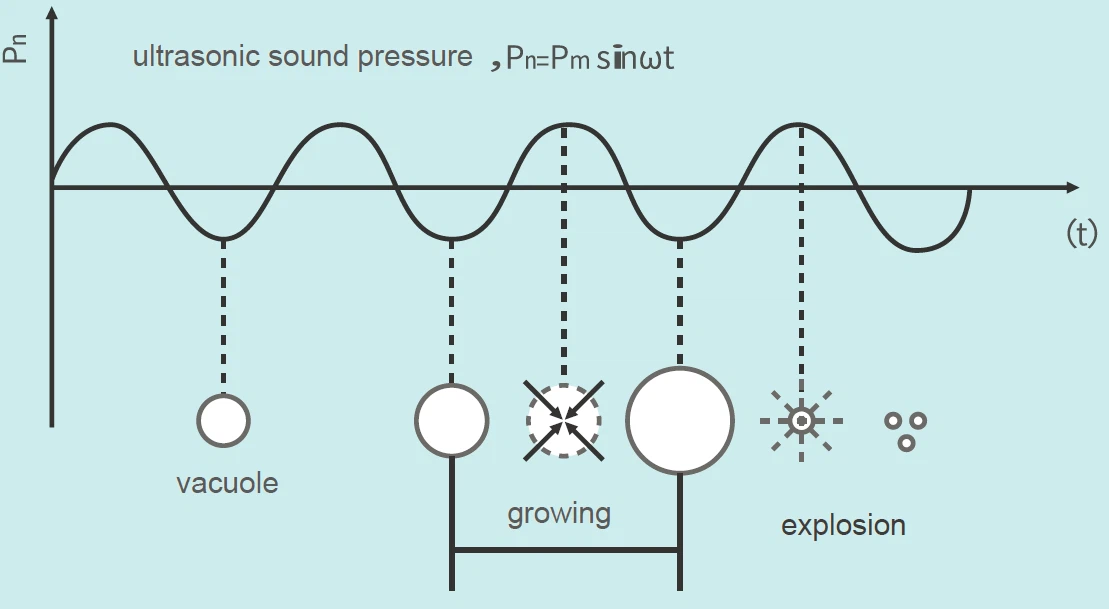

Working Principle

   Based on the cavitation effect of ultrasound in liquids, the transducer transfers electrical energy Through the amplitude-variable rod in the liquid at the top of the tool head to produce high-intensity shear force the formation of high-frequency alternating water pressure intensity so that the cavity expansion, explosion will be broken cells. in addition,the use of ultrasonic propagation in the liquid to produce violent perturbation effect, so that the particles produce a large acceleration.thus colliding with each other or collision with the wall to achieve theeffect of crushing, emulsification and separation.

Features

Processing Volume : 50-1000ml

Flexible Parameters : Adjustable power 1200 W(1%-100%)

Titanium Transducer : Standard

Electric Lifting Table

Inch Touch Screen : Titanium Tip

Application : Bioengineering,Biopharmaceuticals,Foodstuffs Engineering，Environmental Project

Technical parameter
