Aoda SLQ-6A feed food plant Automatic Crude fiber analyzer
SLQ-6A Crude Fiber Analyzer is suitable for the determination of crude fiber, lignin, cellulose and hemicellulose content in grain, feed, food and other agricultural and sideline products....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

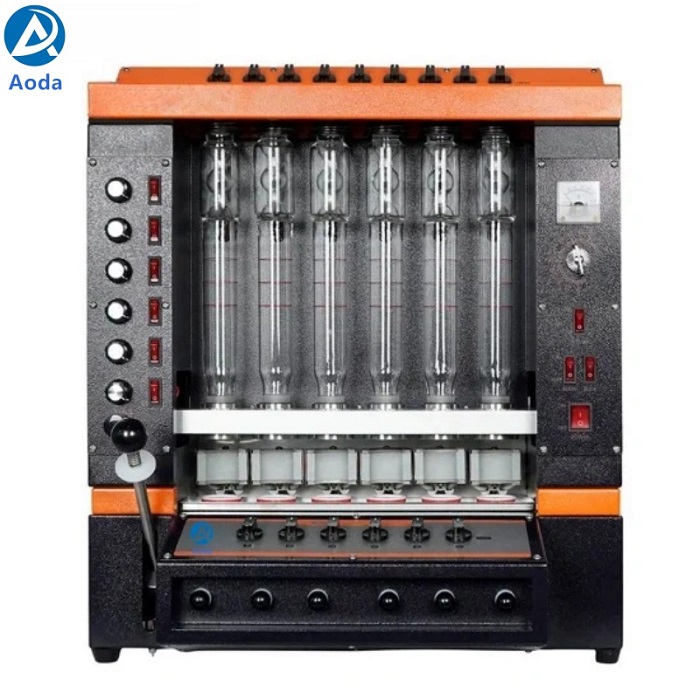

Aoda SLQ-6A feed food plant Automatic Crude fiber analyzer
SLQ-6A crude fiber analyzer is based on the principle of acid-base washing method, integrating acid, alkali treatment and flushing. It uses fully enclosed electric heating, liquid addition, digestion, filtration and flushing methods to determine the crude fiber content. During operation, the sample does not need to be transferred, and the crude fiber in the material can be decomposed. At the same time, it can be adjusted one by one according to the required temperature, thus achieving the purpose of accuracy and speed.
SLQ-6A crude fiber analyzer is suitable for the determination of crude fiber, lignin, cellulose and hemicellulose content in grains, feeds, foods and other agricultural and sideline products.
● Pressure injection type liquid addition is adopted, which makes liquid addition fast and smooth, solving the problem of unsmooth liquid addition in gravity type;
● Reagent preheating adopts electric furnace automatic control, which is safe, energy-saving and prevents dry burning;
● True filtration and smooth flow, high-performance corrosion-resistant components;

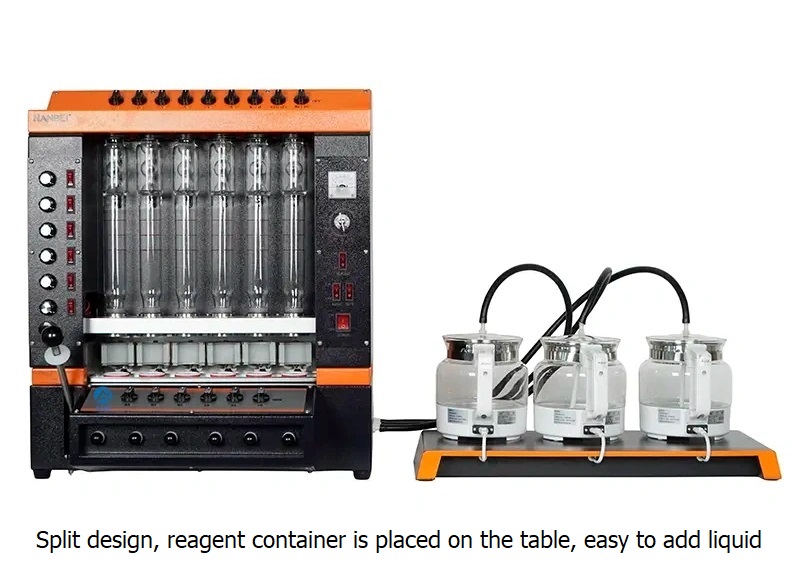

● Split design, reagent container is placed on the table, which is convenient for liquid addition.
| Measuring range | 0~100% |
| Sample quantity | max 6pcs at a batch |
| Sample weighing | 0.5~3.0g |
| Repeatability | ≤0.4% |
| Test time | ≤90mins |
| Heating method | Semi-circular silicon carbide heating, single temperature control |
| Liquid addition method | Pressure injection type |
| Reagent heating method | Automatic constant temperature adjustable, over-temperature protection |
| Corrosion resistance | Acid, alkali, acetone, etc. |
| Power supply | 220V±10%, 50～60HZ |
| Rated power | 1600W (main unit), 1350W (anti-dry boiling liquid cooker); |
| Dimensions | 560×460×660(mm) |
| Weight | 45kg |

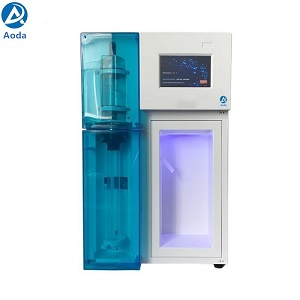

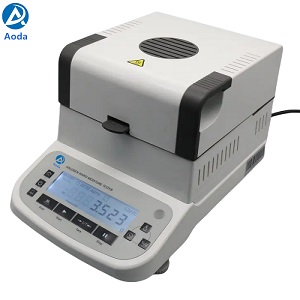

| Protein analyzer | Fat analyzer | Moisture meter |
 |  |  |
Q : What sample can be tested ?
A : The Crude fiber analyzer can be applied Grain, feed, cereals, plant,food and other agricultural and sideline products.
Q : What parameters can be tested ?
A : Crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL). can be determined.
Q : What neccessories for Crude fiber determination ?
A : The neccessories including grinder,Analytical balance,Drying oven,Muffle furnace,Dessicator.
