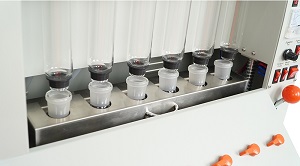

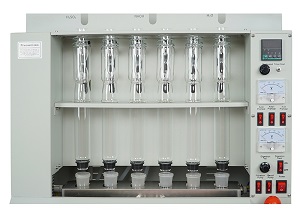

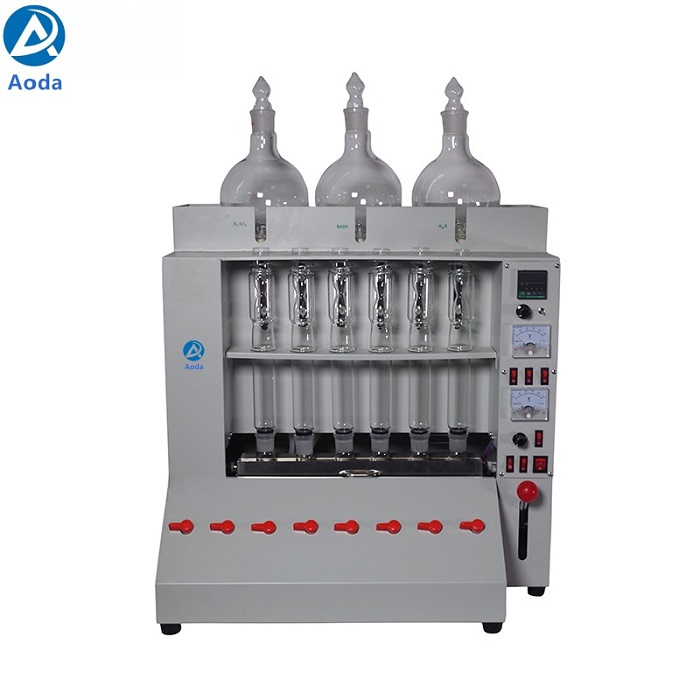

Aoda CXC-06 Crude Fiber Analyzer
The crude fiber analyzer is an instrument that digests samples according to the acid-base digestion method and performs weight measurement to obtain the crude fiber content of the sample. It can measure the crude fiber content in various grains, feeds, cereals, foods and other agricultural and sideline products. It can measure 6 samples at the same time and has the characteristics of automatic temperature control.
The working principle of the crude fiber analyzer is to use acid and alkali with accurate concentrations to digest the sample under specific conditions, then use ethanol to remove soluble substances, and then deduct the amount of minerals after high-temperature burning. The content is called crude fiber. It is not an exact chemical entity, but only an approximate composition measured under recognized mandatory conditions, mainly cellulose, with a small amount of hemicellulose and lignin.
| Measuring range | 0~100% |
| Test time | About 100 minutes (including 40 minutes of acid, 40 minutes of alkali, and about 20 minutes of filtration and washing) |
| Test sample quantity | 6pcs at a batch |
| Repeatability error | Crude fiber content is below 10%, absolute value error ≤0.4%; Crude fiber content is above 10%, absolute value error ≤4% |
| Power supply | AC220V50Hz |
| Power | 2800W |
| Dimensions | 670x450x670mm |
| Weight | 30kg |
 |  |  |

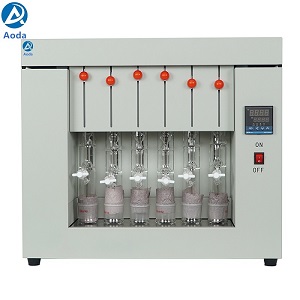

| Kjeldahl protein analyzer | Soxhlet fat analyzer | Halogen moisture meter |
 |  |  |
Q : What sample can be tested ?
A : The Crude fiber analyzer can be applied Grain, feed, cereals, plant,food and other agricultural and sideline products.
Q : What parameters can be tested ?
A : Crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL). can be determined.
Q : What neccessories for Crude fiber determination ?
A : The neccessories including grinder,Analytical balance,Drying oven,Muffle furnace,Dessicator.
