Aoda F800 ADF NDF ADL analysis raw Fiber Analyzer
F800 Crude fiber analyzer applies to plant, feed, food and other agricultural products as well as the determination crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL)....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda F800 ADF NDF ADL analysis raw Fiber Analyzer

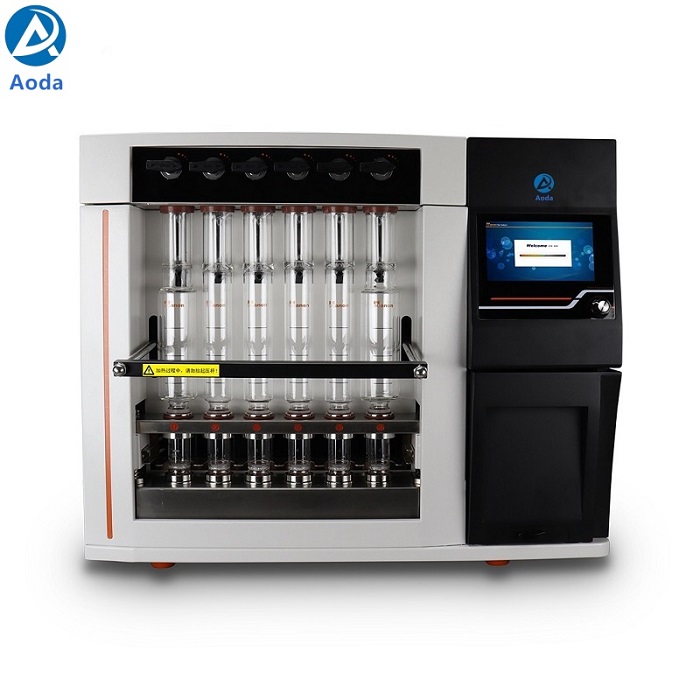

F800 Fiber Analyzer is with advanced design, easy operation and flexible application. It can be used in the conventional Weende method to analyze crude fiber and Van Soest analysis to wash the fiber. Applies to plant, feed, food and other agricultural products as well as the determination crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL).
Precise control experiment
Test time can be set free, clockwise and countdown timing functions are available, real-time reminder end of the experiment,
the experimenter to facilitate precise control experiment, save test time, improve efficiency.
Integrated infrared heating technology
Advanced integrated infrared heating, more uniform heating of the crucible fast, more consistent sample extraction, higher
extraction recovery, thereby improving the accuracy of test results.
Optional peripheral accessories: cool extractor. Experiments can go fat,washed with acetone extraction after detection of
acid lignin and other steps.
The corrosive liquid is not in contact with any pump body, to avoid waste discharge pump susceptible to corrosion phenomena.
With dosing overflow protection function to prevent dosing corrosive liquid overflow due to operator error, protect the safety of the operator.
Having a built-in pre-heating function, greatly reduced the whole experiment time.
Can detect crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL).
| Measurement range | 0.1%～100% |
| Sample weight | 0.5~3g |
| Repeatability error | Craw Fiber Content below 10%, ≤0.4% Craw Fiber Content above 10%, ≤1% |
| Capacity | Max 6 pcs/batch |
| Pre-heating time | 10~12mins |
| Heating to boiling | 13~15mins |
| Screen | 7 inches touch color screen |
| Rated power | 2.2KW |
| Power supply | 220 VAC ±10% 50Hz |
| Dimensions | 776mm×476mm×644mm |

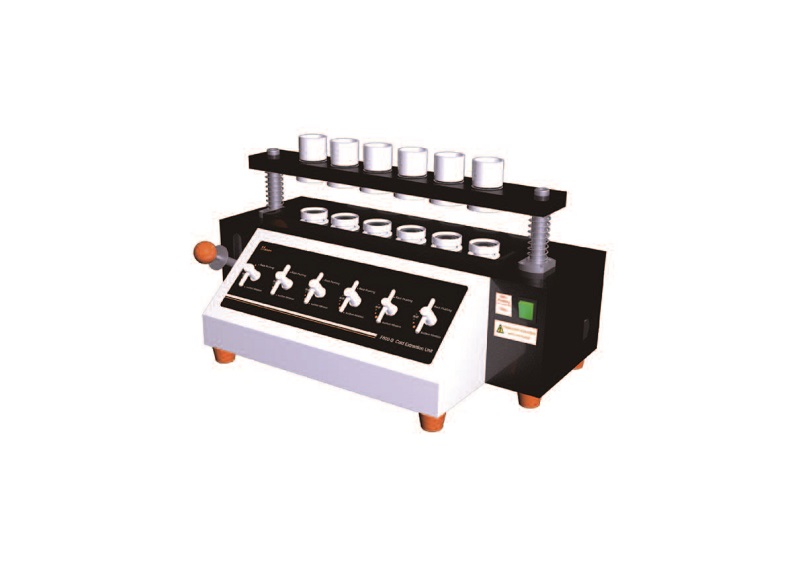

F800-B Cold Extractor
Features
· It can simultaneously de-fat 6 samples before hot extraction, solvent dehydration of fiber residues and lignin determination.
· F800-B use the same crucible system as F800, permitting samples to be dried and weighed between extractions if required.
· Equipped with high-pressure pump to prevent sample plug crucible, guarantee the extraction efficient.
· With a splash guard, eliminate potential safety problems of highly corrosive liquid during the extraction
Technical parameters
| Working Temperature | 10-40℃ |
| Sample Weight | 0.5~3g |
| Storage Temperature | 10-50℃ |
| Batch Capacity | 6 pcs per batch |
| Relative Humidity | 0-90% |
| Power supply | 220 VAC 士10% 50Hz |
Q : What sample can be tested ?
A : The Crude fiber analyzer can be applied Grain, feed, cereals, plant,food and other agricultural and sideline products.
Q : What parameters can be tested ?
A : Crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL). can be determined.
Q : What neccessories for Crude fiber determination ?
A : The neccessories including grinder,Analytical balance,Drying oven,Muffle furnace,Dessicator.
