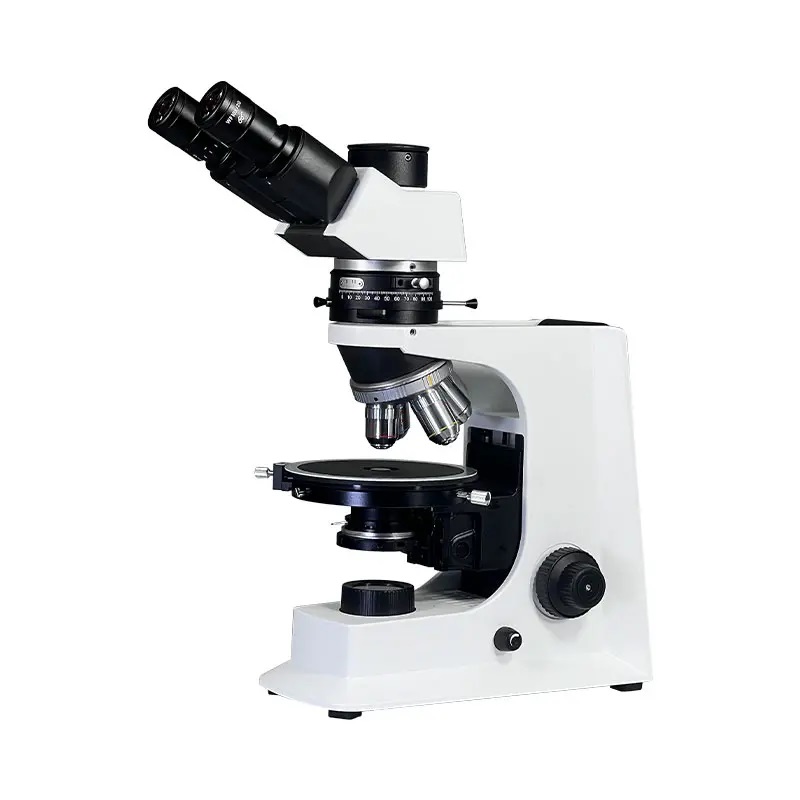

SMART-POL transparent and opaque anisotropic materials study Polarizing Microscope
SMART-POL polarizing microscope is composed of adding polarizing intermediates to our SMART model. The polarization analysis of this polarizing microscope is 0~90°. The matching objective lens is a stress-free Plan lens.
The polarizing microscope is used to study so-called transparent and opaque anisotropic materials. It is widely used in minerals, chemistry, and other fields.
In addition to the standard parts, this polarizing product can also add a moving ruler.
| Advantages of Polarizing Microscopes
Increased contrast: Polarizing microscopes can be used to increase the contrast between different parts of a specimen. This can make it easier to see features that would be difficult or impossible to see with other types of microscopes.
Reduced glare: Polarizing microscopes can be used to reduce glare from reflective surfaces. This can make it easier to see features that are obscured by glare with other types of microscopes.
Ability to identify anisotropic materials: Polarizing microscopes can be used to identify anisotropic materials. Anisotropic materials are materials that have different optical properties in different directions. This can be useful for identifying minerals, crystals, and other types of materials.
| ltems | Specification | SMART-POL | SMART-POL-TR |
| Eyepiece | WF 10×-20mm | ● | ● |
| WF 10×-20mm (adjustable, reticule 0.1mm) | ● | ● | |
| Non-stress Infinity Plan Objective | 4× | ● | ● |
| 10× | ● | ● | |
| 20×(S) | ● | ● | |
| 40×(S) | ● | ● | |
| 60×(S) | ○ | ○ | |
| 100×(S,Oil) | ○ | ○ | |

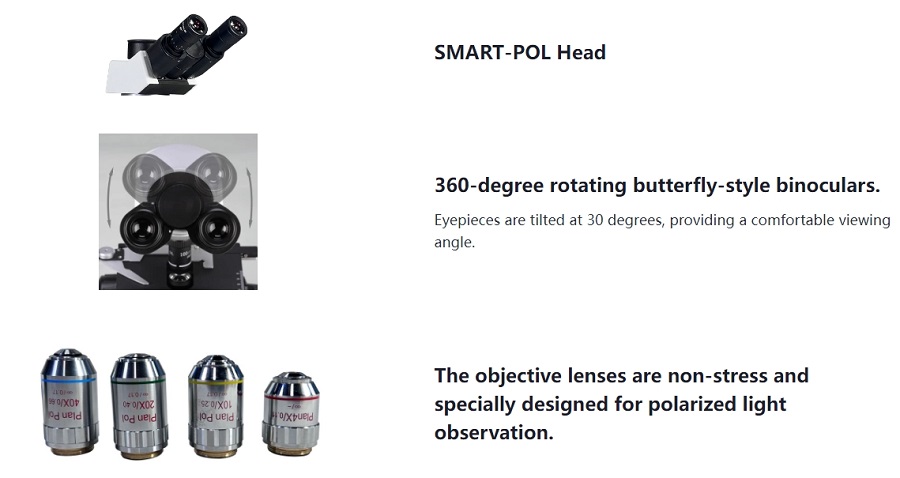

| Swiveling Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48-75mm. | ● | ○ |
| Swiveling Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48-75mm. Light Distribution 20:80 | ○ | ● |
| Nosepiece | Quadplex,Center adjustable | ● | ● |
| Analyzer Unit | 0-90°,It can be moved out of the optical path for single polarizing observe. | ● | ● |
| Bertrand Lens | It can be moved out of the optical path. | ● | ● |
| λ Slip | First Class Red | ● | ● |
| 1/4λSlip | ● | ● | |
| Quartz Wedge | (I-IV Class) | ● | ● |
| Revolving Round Stage | Rotatable 360°,Division 1°,Vernier division 6′,can be locked. Diameter φ142mm | ● | ● |

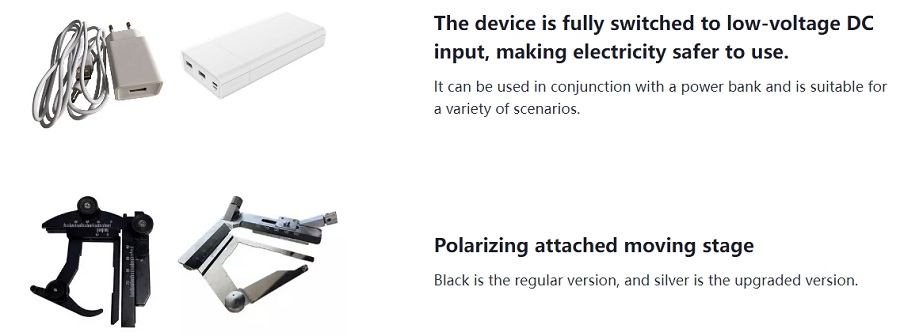

| Polarizing Attached Mechanical Stage | ○ | ○ | |
| Condenser | Abbe N.A.1.25, Non-stress | ● | ● |
| Polarizing Unit | Under the Condenser | ● | ● |
| lllumination | 5W-LED Lamp DC input | ○ | ○ |
| 12V/30W Halogen Lamp | ● | ● | |
| FilterΦ45 | Blue/Amber /Green /Neutral | ○ | ○ |
| C-mount | 1×10.75×10.5×/0.35×(Focus adjustable) | ○ | ○ |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 550mm×380mm×285mm Gross Weight:8.6 kgs Net Weight:7.5 kgs
