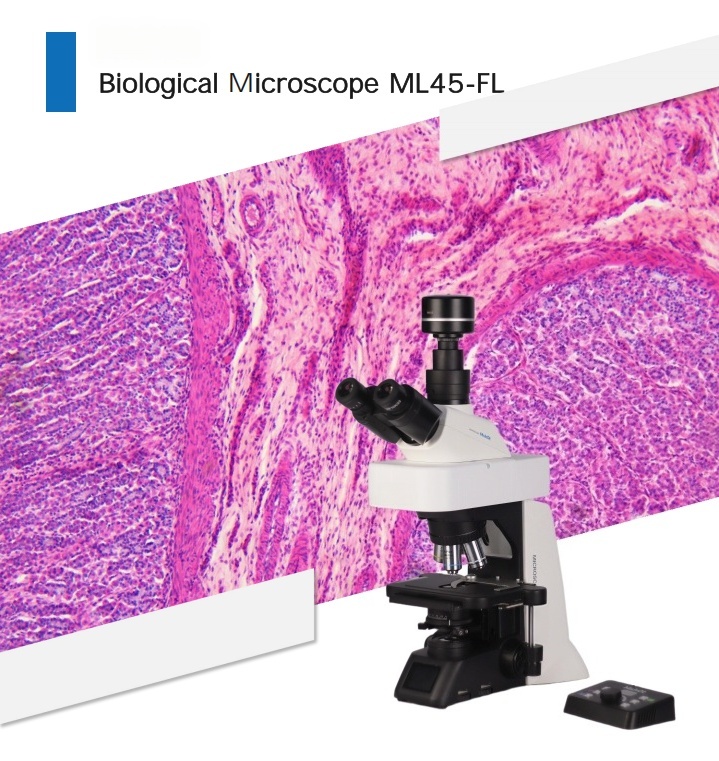

AODA ML45-FL Trinocular Fluorescence Microscope
ML45‑FL is an upright fluorescence biological microscope with infinity-corrected optical system. ...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
AODA ML45-FL Trinocular Fluorescence Microscope
ML45-FL fluorescence biological microscope adopts infinity-corrected optical system with smart operation. Designed for hospital
labs, pathology departments and research institutes. It delivers high-precision imaging and user-friendly functions to boost efficiency
and test accuracy for various specimens. Ideal for routine cell inspection and advanced biological research, it is a reliable essential lab device.
Hospital Diagnostics:
. Ideal for blood smears, pathology slides, and microbiological detection
. High-resolution imaging supports rapid diagnosis.
Lab Research:
Enables cell morphology observation and material surface analysis.
Features like brightness memory and color temperature adjustment reduce operation time and minimize errors.
The stable performance and easy upgradability of the microscope enable it to adapt continuously to evolving experimental needs, making it a key tool for enhancing overall workflow efficiency
Part | Specification |
Main Body | Infinity-corrected optical system; built-in ECO standby (auto-off when idle), Type-C control, USB/DC modular power supply, and adjustable color temperature. |
Eyepiece Tube | 30° tilting trinocular head, 55/45 split, 30° inclined, interpupillary adjustment range: 50–75 mm; 3-position trinocular head (optional). |
Eyepiece | Widefield WF10X / F.N.23. |
Objective Lenses | A-Plan plan achromatic objectives: 4×/10×/40×/100× (standard), 20× (optional). Optional accessories include phase contrast objectives, fluorescence objectives, semi-apochromatic objectives, etc. |
Focusing Mechanism | Coaxial coarse/fine focusing mechanism; focusing range: 25 mm; fine adjustment resolution: 0.002 mm. |
Nosepiece | Inward 5-position coded nosepiece with brightness memory function. |
Stage | Stage size: 232 × 140 mm; travel range: 76 × 50 mm. |
Condenser | Abbe condenser, NA 1.1. |
Transmitted Illumination System | 3W LED light source with continuously adjustable color temperature. |

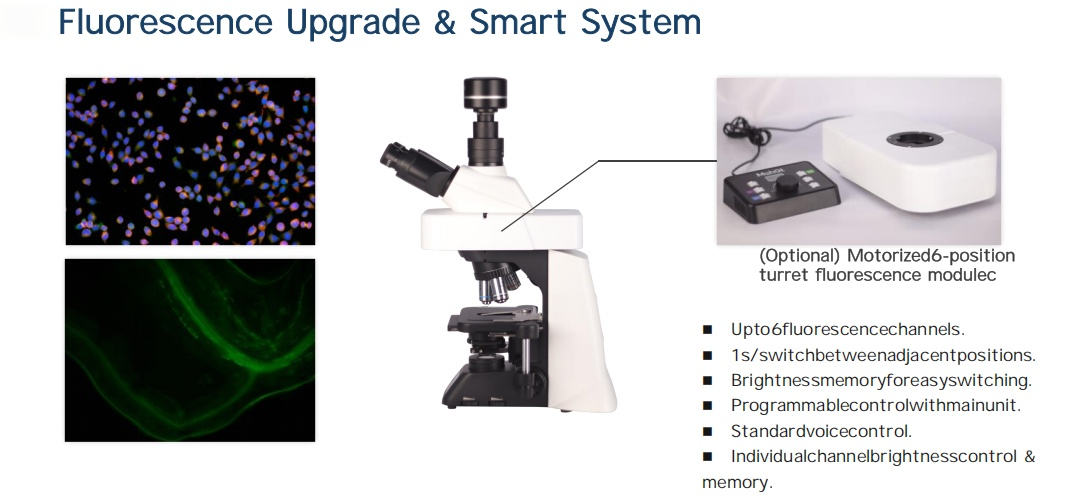

Epi-fluorescence Module | Standard upright triple-color digital fluorescence module with 3 channels (slider switch); optional 6-position motorized turret module with 3 standard channels. Standard filter sets: U (EX: 360–390 nm; DM: 415 nm; EM: 460/50 nm), B (EX: 470/40 nm; DM: 505 nm; EM: 535/40 nm), G (EX: 510–550 nm; DM: 565 nm; EM: 605/55 nm). Custom fluorescence wavelengths available on request. |
Digital Display | Real-time display of objective magnification, brightness, broadcast status, ECO mode, and other related information. |
Intelligent System | Built-in ECO auto-off function; optional voice announcement. |
