Direct Mercury Analyzer

Direct Mercury Analyzer

DMA3000/1000 Direct Mercury Analyzer is used to determine mercury content in soil,sludge, waste water, food, produce, cosmetics, feed, fertilizer, coal,

cooper concentrate, etc.

It is able to directly measure the total mercury in solid and liquid samples without the need of complex sample pretreatment, effectively avoiding the loss

of mercury in the pretreatment process, cross contamination and experimental environmental pollution, and ensuring the accuracy of the analysis data.

Compared with the traditional chemical vapor generation- atomic fluorescence spectrometry method, the pyrolysis method is more efficient, accurate,

stable and reliable in measuring mercury, which can greatly reduce labor intensity, and save 70% of analysis time and cost.

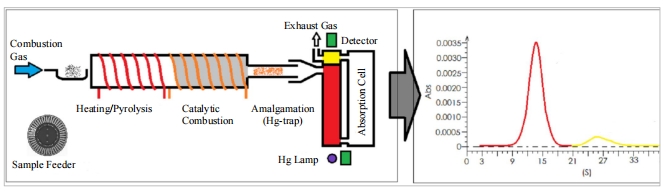

Theory of Operation of DMA3000/1000 Direct Mercury Analyzer

Sample is dried by heating and burnt (pyrolysis) in oxygen or air. Its decomposed product is oxidized by the high temperature catalyst carried via oxygen.

Meanwhile, interferent like halogen, nitric oxides, and sulfur oxides are absorbed by catalyst. Moisture is exhausted by pneumatic truncation, and the rest

of decomposed product is further conveyed to sub-nanometer Hg-trap. Mercury atoms are selectively captured, and experience secondary atomization by

heating Hg-trap. Flowing oxygen carries mercury atoms into the cold atomic absorption detector (253.7nm) for determination, and the total mercury content

in the sample is directly calculated by the software.

Feature of DMA3000/1000 Direct Mercury Analyzer

l Wide Applicability

Suitable for solid and liquid samples, Able to detect samples in 6 different levels, 0.005ng- 1500ng.

l High Efficiency

Only 2-4mins for single analysis, 45 samples/20 samples per batch for DMA3000/1000, and emergency samples can be inserted at any time.

l Easy Operation

Weigh sample and place it on auto feeder without digestion. Complete analysis with just one click on Start key.

l Splendid Repeatability & Accuracy

Integrated catalytic-amalgamation tube ensures measurement repeatability. Composite catalytic agent of high efficiency guarantees the accuracy of test results.

l Low Cost

No need for dehydration consumables, consumable cost is 70% lower than the traditional method.

l Eco-friendly

No harmful chemicals are used in the whole analysis process. The exhaust gas produced by the analysis is effectively absorbed.

Direct Mercury Analyzer specification
