Aoda EC500T 0.000 μS/cm to 2000 mS/cm Conductivity Meter

Aoda EC500T 0.000 μS/cm to 2000 mS/cm Conductivity Meter

EC500T Conductivity Meter tests parameters EC,TDS,Salinity,Resistivity,Temperature in water....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda EC500T 0.000 μS/cm to 2000 mS/cm Conductivity Meter


057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngGENERAL FEATURES

  • Color High contrast LCD touchscreen, 7.0 inches.

  • Intelligent operation system provides features including user management, calibration management, method management, data management and etc.

  • Multi-reading feature allows auto-read, timed-read and continuous-read.

  • Automatic/Manual temperature compensation ensures accurate results.

  • Data Storage 1000 sets for each parameter (GLP-compliant).

  • Data analysis feature helps user review, compare and recalculate results.

  • Support for USB or RS-232 communication.

  • Reset feature automatically resumes all settings back to factory default options.

  • IP54 waterproof.

  • 1-5 points calibration with Standard Recognition.

  • Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.

  • Temperature compensation type (none, linear, pure water).

057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngSpecifications

Model

EC500T Conductivity meter

Parameters

EC/Temp.(Resistivity/TDS/Sal.)

Conductivity

Range

0.000 μS/cm to 2000 mS/cm

Resolution

0.001 μS/cm minimum,

various with range selection

Accuracy

±0.5% FS

Reference Temperature

5, 10, 15, 18, 20, 25 ºC

Calibration Points

Up to 5

Calibration Reminder

Yes

Standard Recognition

10 μS/cm, 84 μS/cm, 500 μS/cm, 1413 μS/cm, 12.88 mS/cm;146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm

Resistivity

Range

5.00 Ω·cm~100.0 MΩ·cm

Resolution

0.01 Ω·cm minimum

Accuracy

±0.5% FS

TDS

Range

0.000 ppm ~1000 ppt

Resolution

0.001 ppm minimum, changed with range

Accuracy

±0.5% FS

Salinity

Type

NaCl

Range

0.0~80.0 ppt

Resolution

0.1ppt

Accuracy

±1ppt

Temperature

Range

-10 to 135 ºC, 14 to 275 ºF

Unit

ºC, ºF

Resolution

0.1

Accuracy

±0.1ºC

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts

Reading, Stable, Locked

Temp. Compensation

ATC, MTC

Data management

Data Storage

1000 Groups

GLP Features

Yes

Log Management

Yes

Inputs

Conductivity with Temp. Probe

5-pin aviation connector

Outputs

USB

USB 2.0 flash memory device, PC, scanner

RS 232

Printer, auto-sampler

Display options

Backlight

Yes

Auto Shutdown

1~60 min, off

IP Rating

IP54

Date and Time

Yes

General

Power

AC Adapter, 100-240V AC input, DC24V output

Dimensions

220×195×68 mm

Weight

950g (2.09 lb)

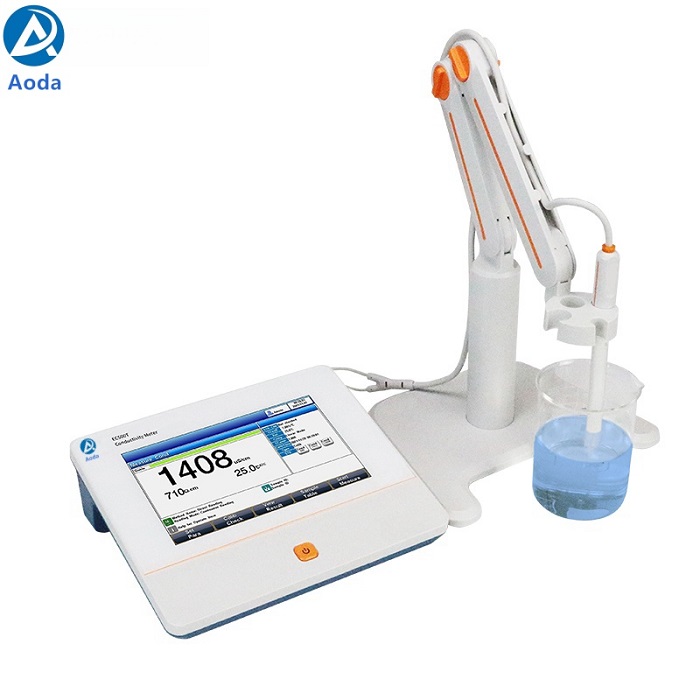

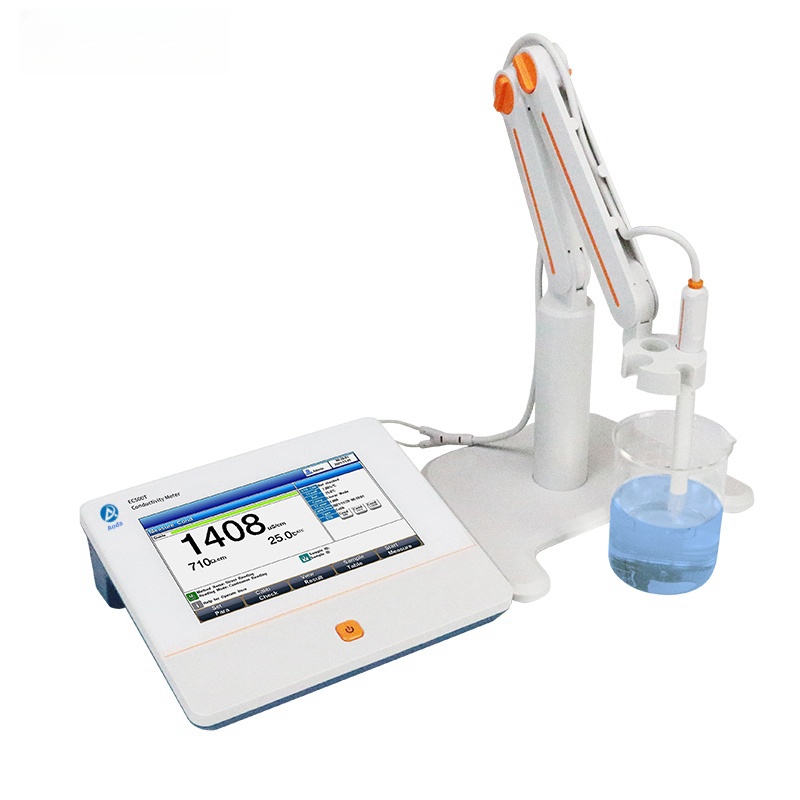

057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngProduct photo


057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngOther Water quality meters we have

大海报-2.jpg057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngFAQ

Q : What’s the cell constant of conductivity sensor ?

A : k=1


Q : What’s the warranty of Conductivity meter ?

A : 1year.


Q : What’s the temperature compensation ?

A : It accepts Automatic and Manual temperature compensation.
