Aoda EC300F ATC EC TDS Salinity Resistivity Conductivity Meter
GENERAL FEATURES
High resolution LCD display, 5.7 inches.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 500 sets (GLP-compliant).
Support for USB or RS-232 communication.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-3 points calibration with Standard Recognition.
Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).
Specifications
Model | EC300F Conductivity meter | |
Parameters | EC/Temp.(Resistivity/TDS/Sal.) | |
Conductivity | Range | 0.000 μS/cm to 1000 mS/cm |
Resolution | 0.001 μS/cm minimum, various with range selection | |
Accuracy | ±1.0% FS | |
Reference Temperature | 20, 25 ºC | |
Calibration Points | Up to 3 | |
Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | |
Resistivity | Range | 5.00 Ω·cm~20.00 MΩ·cm |
Resolution | 0.01 Ω·cm minimum | |
Accuracy | ±1.0% FS | |
TDS | Range | 0.00 ppm ~300 ppt |
Resolution | 0.01ppm minimum, various with range selection | |
Accuracy | ±1.0% FS | |
Salinity | Range | (0.00~8.00)% |
Resolution | 0.01% | |
Accuracy | ±0.2% | |
Temperature | Range | -5.0 to 110 ºC, 23.0 to 230 ºF |
Unit | ºC, ºF | |
Resolution | 0.1 | |
Accuracy | ±0.2ºC | |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 500 results each |
GLP Features | Yes | |
Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
Outputs | USB | PC |
RS 232 | printer | |
Display options | Backlight | Yes |
Auto Shutdown | 1~60 min, off | |
IP Rating | IP54 | |
Date and Time | Yes | |
General | Power | AC Adapter, 100-240V AC input, DC9V output |
Dimensions | 242×195×68 mm | |
Weight | 900g (1.98 lb) | |

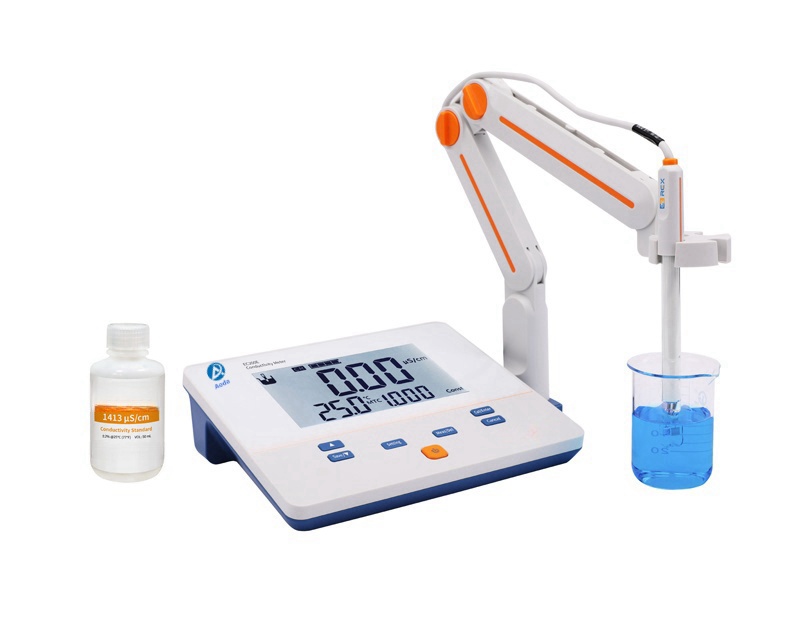

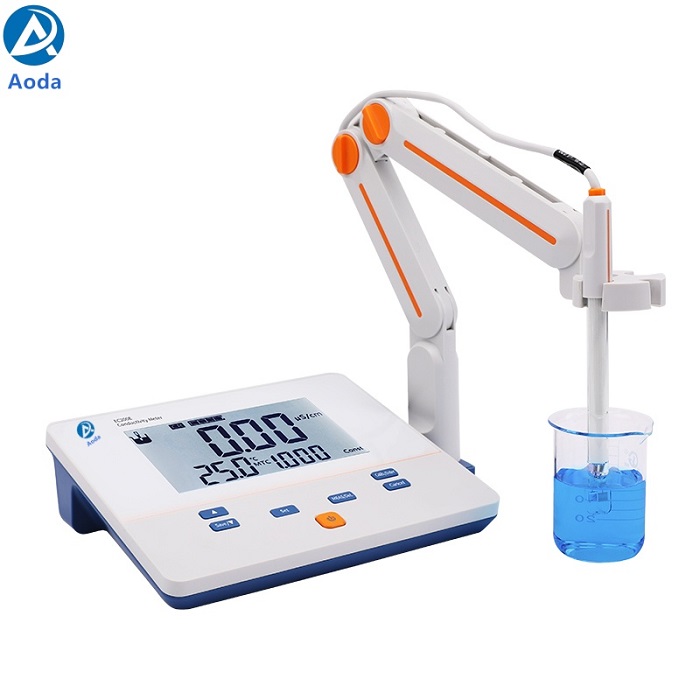

Product photo
Other Water quality meter we have
FAQ
Q : What’s the cell constant of conductivity sensor ?
A : k=1
Q : What’s the warranty of Conductivity meter ?
A : 1year.
Q : What’s the temperature compensation ?
A : It accepts Automatic and Manual temperature compensation.
