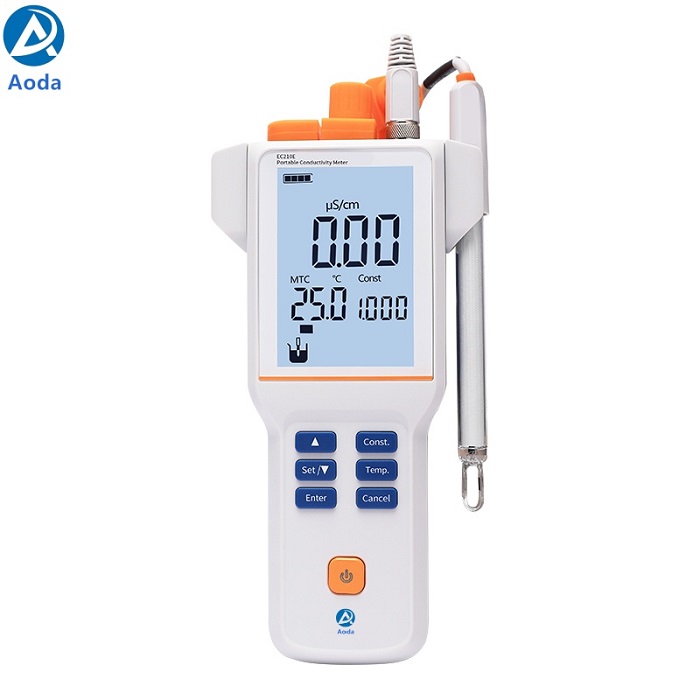

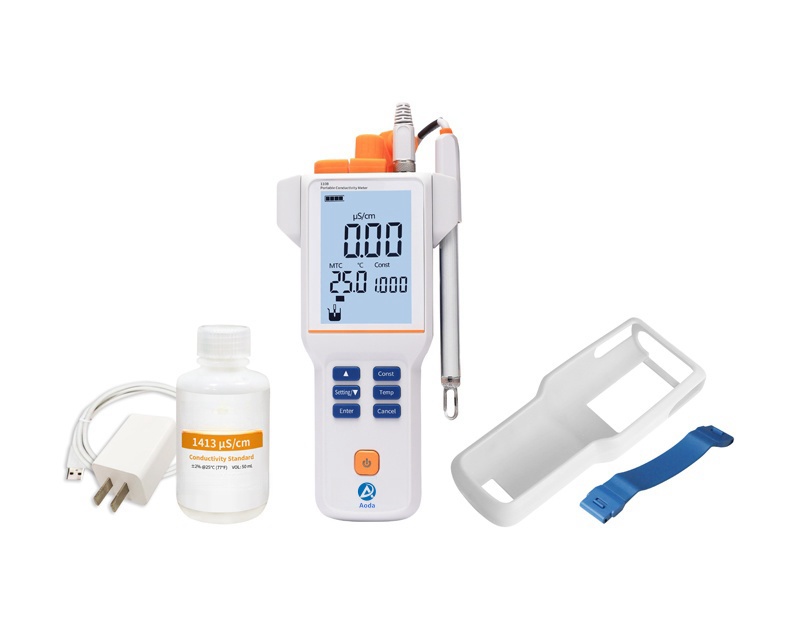

Aoda EC210E Conductivity Meter | Portable EC Meter

EC210E Conductivity Meter test Conductivity,EC,TDS in water,automatic temperature compensation....

Send Inquiry

Aoda EC210E Conductivity Meter | Portable EC Meter

GENERAL FEATURES

LCD display screen, 3.5 inches.

Multi-reading feature allows auto-read and continuous-read.

Automatic/Manual temperature compensation ensures accurate results.

Auto-hold feature senses and locks the measurement endpoint.

Data capacity of up to 200 sets for each parameter.

Auto-power off feature effectively extends the battery service life.

Reset feature automatically resumes all settings back to factory default options.

IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

1 point calibration with Standard Recognition.

Cell constant is settable

Automatic/manual temperature compensation ensures accurate results.

Specifications

Model		EC210E Portable EC meter
Parameters		EC/Temp.(TDS)
Conductivity	Range	0.00 μS/cm to 200 mS/cm
	Resolution	0.01 μS/cm minimum, various with range selection
	Accuracy	±1.0% FS
	Reference Temperature	25 ºC
	Calibration Points	Up to 1
	Standard Recognition	84μS/cm, 1413μS/cm, 12.88mS/cm
TDS	Range	0.00 ppm~300 ppt
	Resolution	0.01 ppm minimum, various with range selection
	Accuracy	±1.0%FS
Temperature	Range	-5 to 110 ºC
	Unit	ºC
	Resolution	0.1ºC
	Accuracy	±0.2ºC
Measurement	Reading Mode	Auto Read, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data management	Data Storage	200 results each
Inputs	Conductivity with Temp. Probe	5-pin aviation connector
Display options	Backlight	Yes
	Auto Shutdown	300, 600, 1200, 1800, 3600 sec., off
	IP Rating	IP65
General	Power	Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
	Dimensions	80×255×35 mm
	Weight	400g (0.88 lb)
