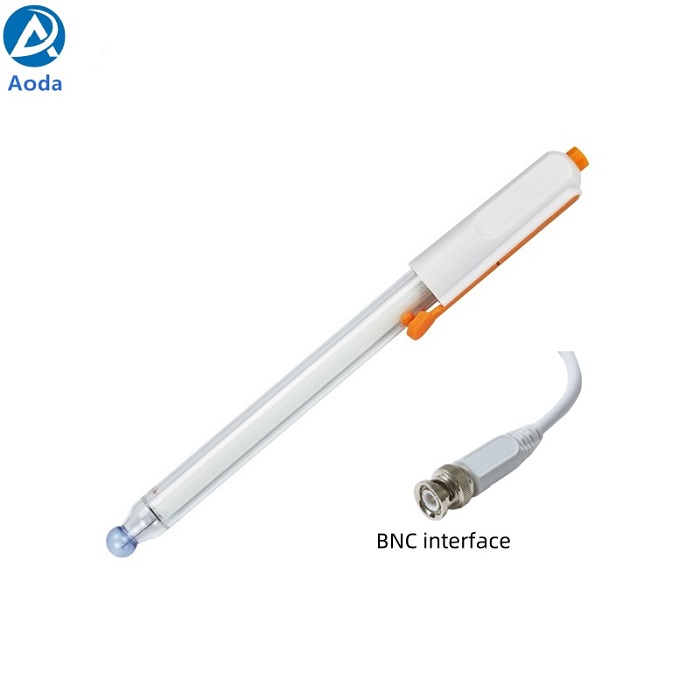

Aoda 65-1C 3 in 1 pH composite electrode
65-1C 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda 65-1C 3 in 1 pH composite electrode
GENERAL FEATURES
PH electrodes have the pH indicator electrode, composite electrode, and 3 in1 pH composite electrode.
PH indicator electrode needs to cooperate with reference electrode.
Composite electrode combines the pH indicator electrode, reference electrode.
3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe.
Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.
The connector must be compatible with the meter you are using.
S7 【S7-BNC(Q9) cable】
BNC(Q9)
Specifications
Model | 65-1C |
Name | pH composite electrode |
pH Range | 0～14 |
Fill Solution | 3 M KCl |
Sensor material | Glass |
Working Temp. | 5~60 ℃ |
Junction material | Single ceramic |
Reference Type | Ag/AgCl |
Dimension | Φ12×120 mm |
Connector Type | BNC(Q9) |
Electrodes for your reference
FAQ
Q : What is 3 IN 1 Electrode ?
A : 3 IN 1 means it combined with pH indicator electrode, reference electrode, and temperature probe.
Q : Is it automatic temperature compensation ?
A : Yes,it is. It is suitable for working temperature 5~60 ℃.
Q : How to connect it to our monitor / meter ?
A : 65-1C pH composite electrode has BNC interface,it asks your mintor or meter has this connector.
Q : What's the work life of your pH electrode?
A : It has 1year work life. However,it also depends on using frequency and protection after using.
Q : What is filling solution ?
A : 3.0mol/L KCL solution.
